IC

INDEX

PART NUMBER

QTY

PART NAME

3-17-1

1

60244897

3

Plug

3-17-2

2

60244898

3

O-ring

3-17-3

3

60244899

1

Rotary shaft

3-17-4

4

60244900

4

Conical plug

3-17-5

5

60244901

2

O-ring

3-17-6

6

60244902

8

Rotary sealing ring

3-17-7

7

60244903

1

Dust Ring

3-17-8

8

60244904

1

Revolving body

3-17-9

9

60244905

1

Baffle

3-17-10

10

60244906

4

Bolt

3-17-11

11

60244907

1

O-ring

3-17-12

12

60244908

1

End cover

3-17-13

13

60244909

4

Standard spring washers

3-17-14

14

60244910

4

Hexagon bolt

3-17-15

15

60244911

1

Swivel Joint Repair Kit

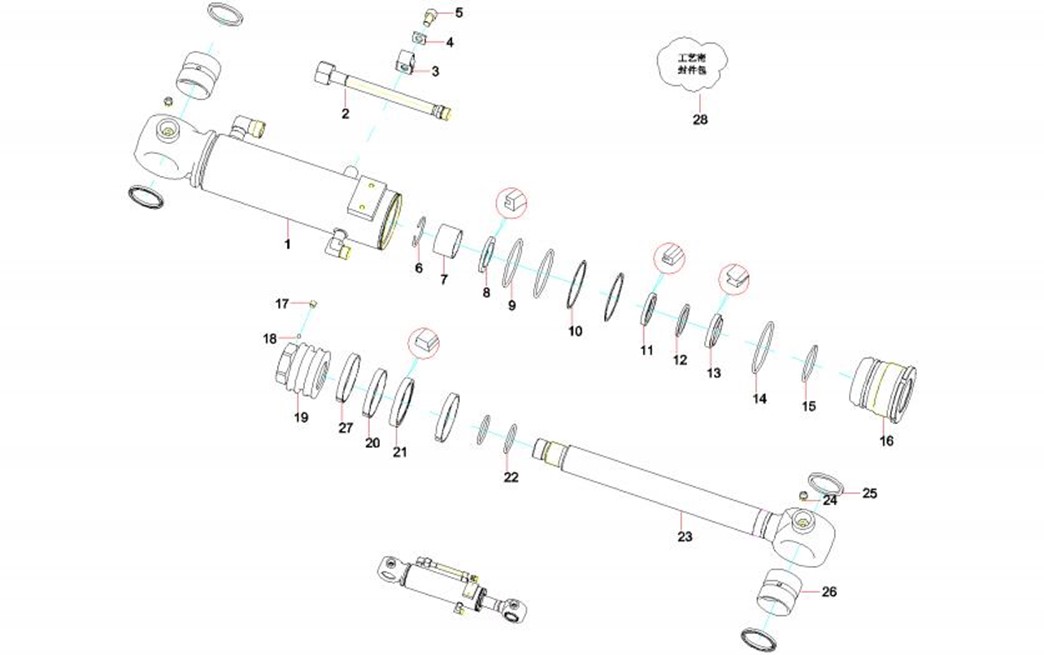

IC

INDEX

PART NUMBER

QTY

PART NAME

3-19-1

1

13239092

1

Cylinder Assem. ZX35.3.4B.2

3-19-2

2

13239097

1

Oil tube component II ZX35.3.4B.3

3-19-3

3

13046617

1

Pipe ClampZX35.3.2A-4

3-19-4

4

13039393

1

washerZX65.3.1B-13

3-19-5

5

A210204000196

1

Screw M10×20GB70.1

3-19-6

6

60183946

1

Retaining Ring

3-19-7

7

60180960

1

Bearing, oilless

3-19-8

8

60176730

1

Seal ring

3-19-9

9

B230101000709

1

O-ring 78.97×3.53AS568-235

3-19-10

10

B229900001470

1

Ring, retainer

3-19-11

11

60176732

1

Seal ring

3-19-12

12

60180968

1

3-19-13

13

60176723

1

Dust Ring

3-19-14

14

A210609000082

1

O-ring 85×3.55GB3452.1

3-19-15

15

A210417000107

1

Ring, retaining 55GB895.1

3-19-16

16

13239086

1

Guide Sleeve ZX35.3.4B-1

3-19-17

17

A210206000004

1

Screw M8×16GB77

3-19-18

18

A210661000016

1

Ball, steel

3-19-19

19

13047574

1

Piston ZX35.3.1-2

3-19-20

20

B230101001878

2

UP-ring, guide

IC

INDEX

PART NUMBER

QTY

PART NAME

3-21-21

21

60184746

1

Seal Ring

3-21-22

22

B230101000580

2

O-ring 24.99×3.53AS568-214

3-21-23

23

13239091

1

Piston Rod ZX35.3.4B.1

3-21-24

24

A229900010158

2

Cup, oil

3-21-25

25

60176726

4

Dust Ring

3-21-26

26

13239087

1

Bush ZX35.3.4B-3

3-21-27

27

60192119

1

Anti-pollution loop

3-21-28

28

12513479

1

W34 Technologic Package for

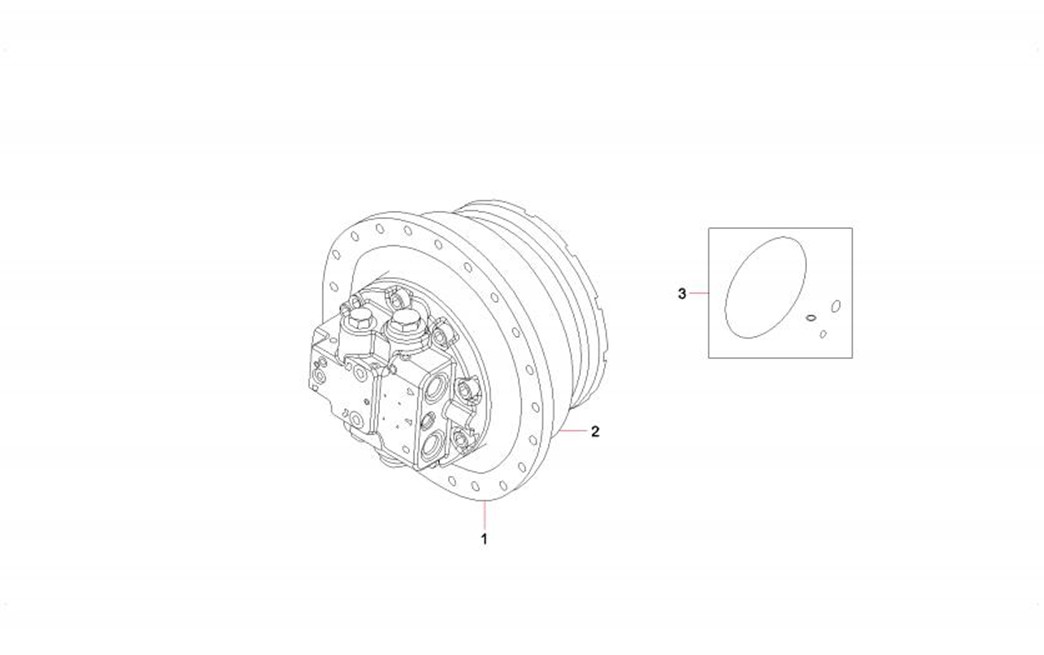

IC

INDEX

PART NUMBER

QTY

PART NAME

3-23-1

1

60257715

1

Hydraulic motor

3-23-2

2

60258142

1

Reducer components

3-23-3

3

60248044

1

Running Reducer assembly Repair

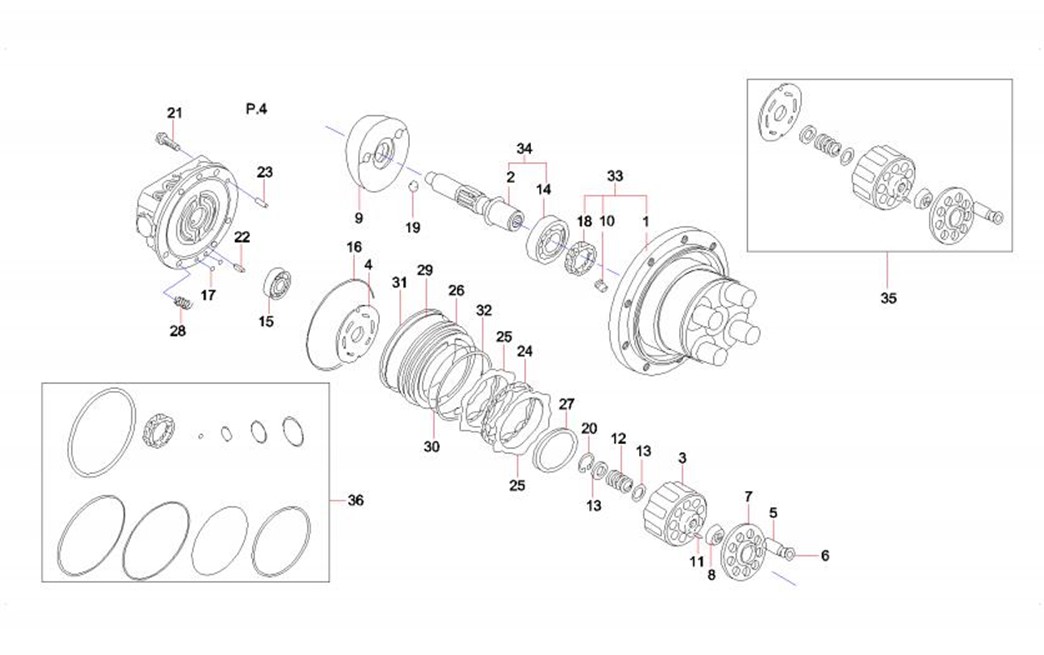

IC

INDEX

PART NUMBER

QTY

PART NAME

3-25-1

1

60257721

1

BODY2

3-25-2

2

60257722

1

SHAFT

3-25-3

3

60257723

1

CYLINDER BARREL

3-25-4

4

60257724

1

VALVE PLATE

3-25-5

5

60257725

9

PISTON ASSY

3-25-6

6

60257726

9

SHOE

3-25-7

7

60257727

1

SHOE HOLDER

3-25-8

8

60257728

1

BARREL HOLDER

3-25-9

9

60257729

1

SWASH PLATE

3-25-10

10

60257730

1

CONTROL PISTON

3-25-11

11

60257731

3

PIN

3-25-12

12

60257732

1

SPRING C

3-25-13

13

60257733

2

RETAINER

3-25-14

14

60257734

2

BEARING

3-25-15

15

60257735

1

BEARING

3-25-16

16

60164378

1

O-ring

3-25-17

17

60091798

2

O-ring

3-25-18

18

60257736

1

OIL SEAL

3-25-19

19

60164159

2

Ball, steel

3-25-20

20

60257737

1

SNAP RING
