SANY SY35C SY35C3Y4WU EXCAVATOR parts catalog 31
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

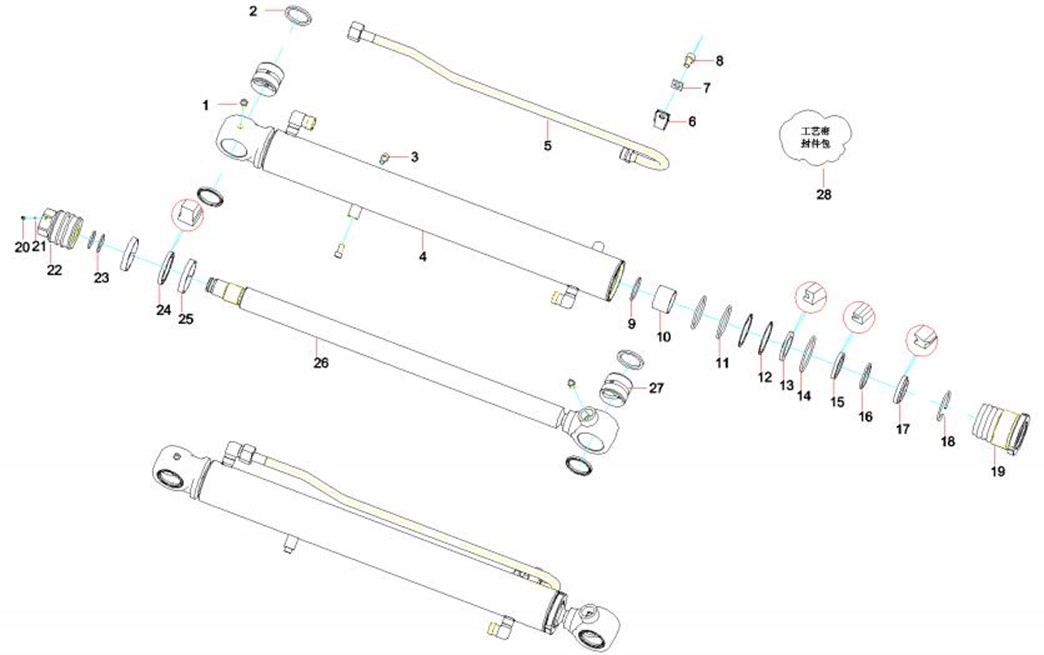

4-23-1 |
1 |
A210804000002 |
2 |
Cup, oil M10×1JB7940.1 |
4-23-2 |
2 |
60176725 |
4 |
Dust Ring |
4-23-3 |
3 |
A210204000146 |
2 |
Screw M8×16GB70.1 |
4-23-4 |
4 |
13047701 |
1 |
cylinder assemZX35.3.3.2 |
4-23-5 |
5 |
13047533 |
1 |
Oil Pipe ComponentZX35.3.3.3 |
4-23-6 |
6 |
13046617 |
1 |
Pipe ClampZX35.3.2A-4 |
4-23-7 |
7 |
13039393 |
1 |
washerZX65.3.1B-13 |
4-23-8 |
8 |
A210204000202 |
1 |
Screw M10×16GB70.1 |
4-23-9 |
9 |
A210417000045 |
1 |
Ring, retaining |
4-23-10 |
10 |
60035658 |
1 |
Cup |
4-23-11 |
11 |
B230101000235 |
2 |
O-ring |
4-23-12 |
12 |
24004188 |
2 |
Ring, retainer |
4-23-13 |
13 |
60184737 |
1 |
Seal ring |
4-23-14 |
14 |
A210609000168 |
1 |
O-ring 63×3.55GB3452.1 |
4-23-15 |
15 |
60035790 |
1 |
Ring,seal |
4-23-16 |
16 |
60035652 |
1 |
Ring, bearing |
4-23-17 |
17 |
60184718 |
1 |
Dust Ring |
4-23-18 |
18 |
A210417000107 |
1 |
Ring, retaining 55GB895.1 |
4-23-19 |
19 |
13048175 |
1 |
Guide Sleeve ZX35.3.3-1 |
4-23-20 |
20 |
60068694 |
1 |
Screw |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-25-21 |
21 |
A210661000015 |
1 |
Ball |
4-25-22 |
22 |
13047527 |
1 |
pistonZX35.3.3-2 |
4-25-23 |
23 |
B230101001214 |
2 |
O-ring |
4-25-24 |
24 |
A880806030220 |
1 |
Seal, OK-ring |
4-25-25 |
25 |
B230101000831 |
2 |
FR-ring, guide |
4-25-26 |
26 |
13047530 |
1 |
piston rodZX35.3.3.1 |
4-25-27 |
27 |
13047575 |
2 |
BushZX35.3.1-3 |
4-25-28 |
28 |
13048185 |
1 |
W33process sealer packageSS |

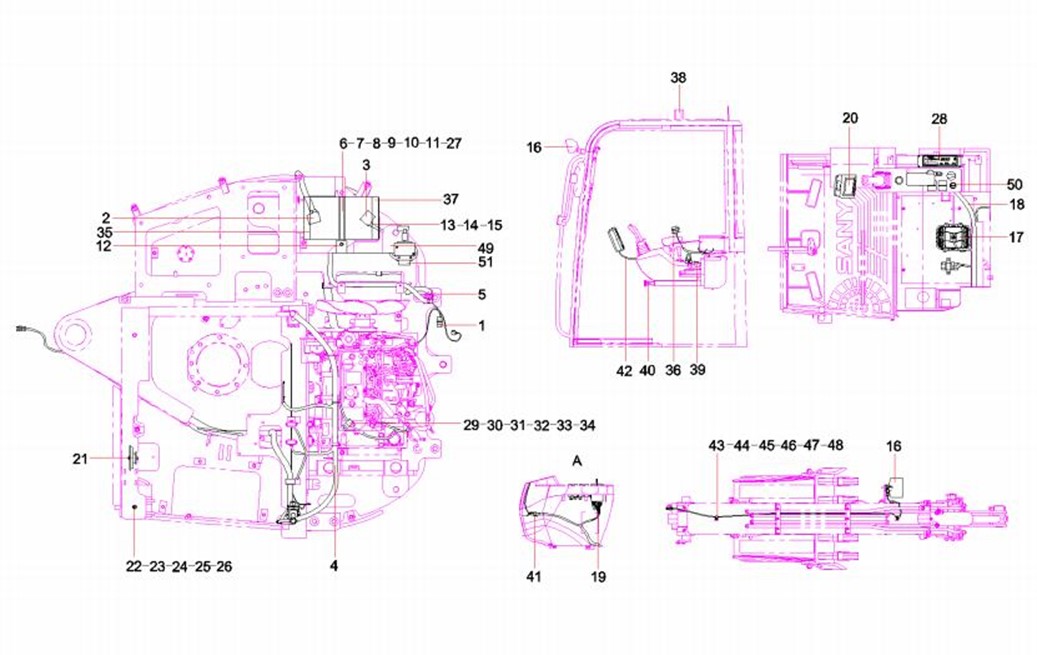

Chapter 5
Electrical assembly drawing
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-3-1 |
1 |
B241000000022 |
1 |
Socket, two-wire |
5-3-2 |
2 |
60013321 |
1 |
Terminal Group, Battery Negative |
5-3-3 |
3 |
60013322 |
1 |
Terminal Group, Battery Postive |
5-3-4 |
4 |
13231767 |
1 |
Vehicle Body Harn |
5-3-5 |
5 |
60202078 |
10 |
Cluster fixed lace |
5-3-6 |
6 |
A210405000007 |
5 |
Washer 8GB97.1 |
5-3-7 |
7 |
A210404000009 |
6 |
Washer 6GB96.1 |
5-3-8 |
8 |
A210404000010 |
4 |
Washer 5GB96.1 |
5-3-9 |
9 |
A210404000003 |
20 |
Washer 10GB96.1 |
5-3-10 |
10 |
13091123 |
1 |
Battery Binder |
5-3-11 |
11 |
13091122 |
1 |
Battery Binder |
5-3-12 |
12 |
13091125 |
1 |
Battery Support |
5-3-13 |
13 |
60193171 |
1 |
Power line |
5-3-14 |
14 |
60215132 |
1 |
Power Supply Line |
5-3-15 |
15 |
60193169 |
1 |
Power line |
5-3-16 |
16 |
60218608 |
1 |
Working light |
5-3-17 |
17 |
12824424 |
1 |
Integrated box SY85C1K2S.5C.1.1 |
5-3-18 |
18 |
13231764 |
1 |
Driver’s Cab Harness |
5-3-19 |
19 |
13231766 |
1 |
Control harness SY35C2Y4.5C.3 |
5-3-20 |
20 |
60229721 |
1 |
Control display screen |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-5-21 |
21 |
60211509 |
1 |
Horn |
5-5-22 |
22 |
A210210000030 |
4 |
Screw M4×12GB818 |
5-5-23 |
23 |
A210111000088 |
2 |
Bolt M8×16GB5783 |
5-5-24 |
24 |
A210111000089 |
1 |
Bolt M8×20GB5783 |
5-5-25 |
25 |
A210111000079 |
6 |
Bolt M6×16GB5783 |
5-5-26 |
26 |
A210111000195 |
20 |
Bolt M10×16GB5783 10.9 |
5-5-27 |
27 |
A820606030643 |
3 |
Cushion, battery |
5-5-28 |
28 |
60047845 |
1 |
Radio |
5-5-29 |
29 |
60083322 |
4 |
Wire clip |
5-5-30 |
30 |
60086354 |
10 |
Clamp, harness |
5-5-31 |
31 |
60086353 |
1 |
Clamp, harness |
5-5-32 |
32 |
60086356 |
1 |
Clamp, harness |
5-5-33 |
33 |
60086357 |
1 |
Harness clamp |
5-5-34 |
34 |
60086355 |
2 |
Clamp, harness |
5-5-35 |
35 |
B242200000026 |
1 |
Battery |
5-5-36 |
36 |
60236996 |
1 |
Knob switch |
5-5-37 |
37 |
10569316 |
4 |
Plate, pressure, battery |
5-5-38 |
38 |
60237043 |
1 |
Alarm lamp |
5-5-39 |
39 |
A241300000059 |
1 |
Box, fuse |
5-5-40 |
40 |
60027621 |
1 |
Emergency stop switch |
