SANY SY35C SY35C3Y4WU EXCAVATOR parts catalog 32
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-7-41 |
41 |
60041902 |
1 |
Accessories, metal, fixed, plug-in |
5-7-42 |
42 |
13231768 |
1 |
harness of display |
5-7-43 |
43 |
A210111000011 |
3 |
Bolt |
5-7-44 |
44 |
A210405000011 |
3 |
Washer 10GB97.1 |
5-7-45 |
45 |
21005334 |
1 |
Bolt |
5-7-46 |
46 |
A210405000006 |
2 |
Washer 6GB97.1 |
5-7-47 |
47 |
23000169 |
2 |
Nut |
5-7-48 |
48 |
A210111000342 |
2 |
Bolt M8×16GB5783 10.9 |
5-7-49 |
49 |
13078810 |
1 |
supporting plate |
5-7-50 |
50 |
60218598 |
1 |
Ignition switch |
5-7-51 |
51 |
60148849 |
1 |
Battery Control switch |

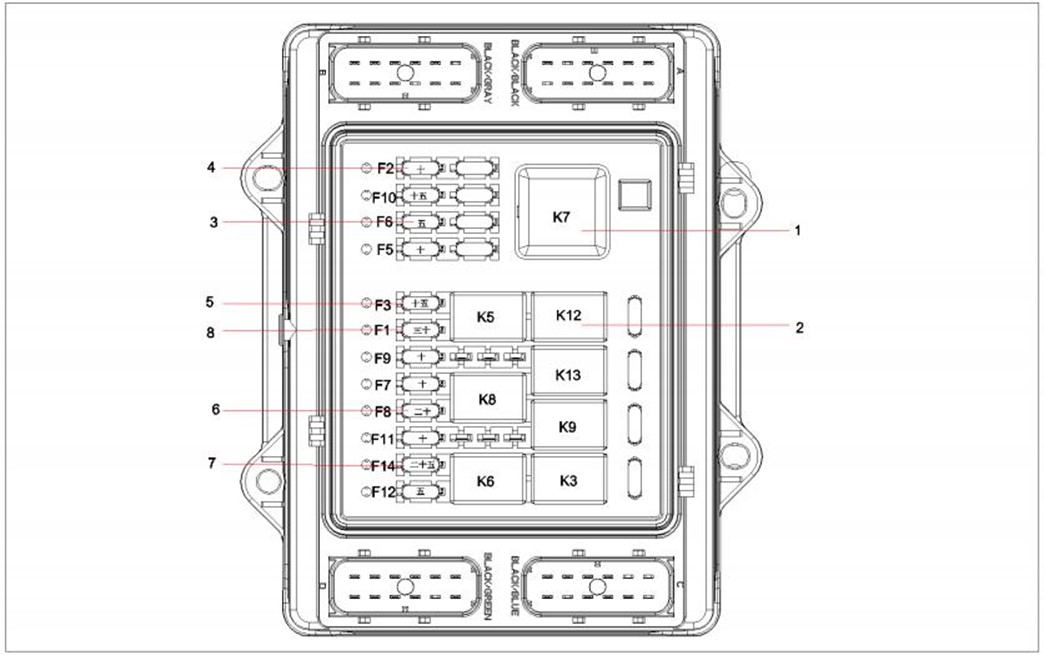

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
5-9-1 |
1 |
60215655 |
1 |
Intermediate Relay |
5-9-2 |
2 |
60215653 |
7 |
Intermediate Relay |
5-9-3 |
3 |
60215505 |
2 |
fuse |
5-9-4 |
4 |
60215506 |
5 |
fuse |
5-9-5 |
5 |
60215507 |
2 |
fuse |
5-9-6 |
6 |
60215508 |
1 |
fuse |
5-9-7 |
7 |
60215509 |
1 |
fuse |
5-9-8 |
8 |
60215510 |
1 |
fuse |
Chapter 6

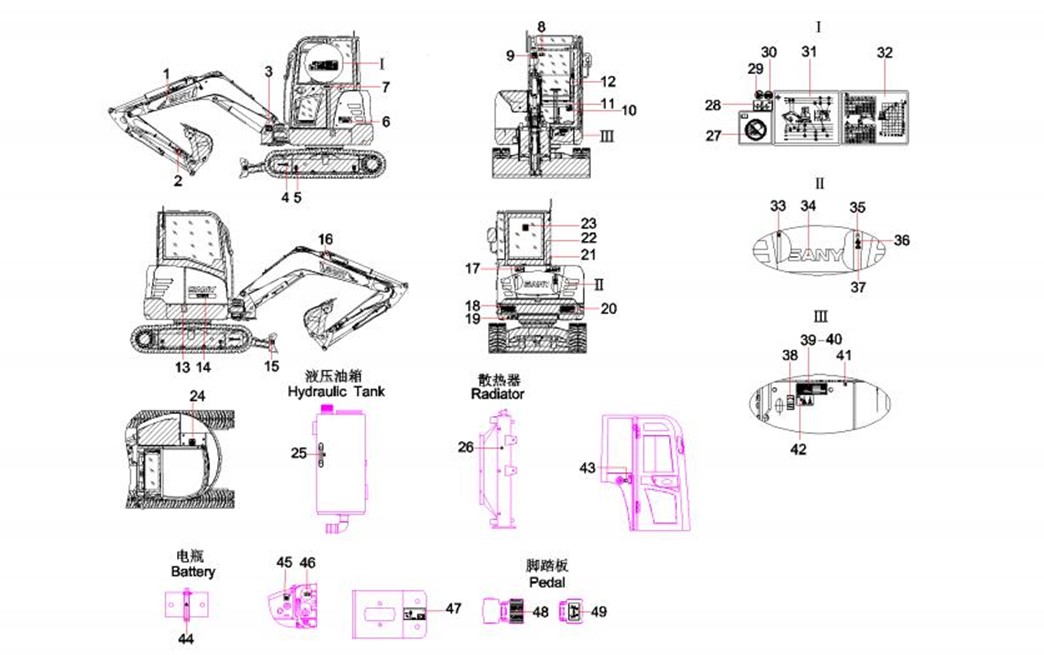

Coating general drawing SY35C2Y4WU(EU)
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-3-1 |
1 |
12917324 |
1 |
Movable Arm Left Side |
6-3-2 |
2 |
10124614 |
2 |
Decal, warning, arm |
6-3-3 |
3 |
13132226 |
1 |
Noise marker |
6-3-4 |
4 |
A820603000246 |
2 |
Decal, instruction, forward |
6-3-5 |
5 |
13166446 |
4 |
Fixed loading spot mark |
6-3-6 |
6 |
13168025 |
1 |
SANY logo mark |
6-3-7 |
7 |
A820601000014 |
1 |
Decal |
6-3-8 |
8 |
12052088 |
1 |
Decal, warning, front window |
6-3-9 |
9 |
12033806 |
1 |
Label, preventing fire disaster |
6-3-10 |
10 |
13328466 |
1 |
FOPS&TOPS Decal |
6-3-11 |
11 |
13504946 |
1 |
Emergency Stop Switch |
6-3-12 |
12 |
13155987 |
1 |
Leading switch mark |
6-3-13 |
13 |
13507824 |
2 |
Center-of-gravity mark |
6-3-14 |
14 |
13168028 |
1 |
SANY logo mark |
6-3-15 |
15 |
12052087 |
4 |
Label, lifting point |
6-3-16 |
16 |
12917325 |
1 |
Movable Arm Right Side |
6-3-17 |
17 |
A820601991049 |
2 |
Decal, warning, counterweight |
6-3-18 |
18 |
13166523 |
1 |
Counterweight left reflective |
6-3-19 |
19 |
13507855 |
1 |
toxic SY16C3Y4W(EU)-TZ-11 |
6-3-20 |
20 |
13166529 |
1 |
Counterweight right reflective |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-5-21 |
21 |
13507819 |
1 |
no open flame SY16C3Y4W(EU)- |
6-5-22 |
22 |
13507584 |
1 |
High temperature warning |
6-5-23 |
23 |
13166419 |
1 |
Safety exit lableSY215CAI4K-TZ- |
6-5-24 |
24 |
12033810 |
1 |
No trample Nameplate |
6-5-25 |
25 |
13507828 |
1 |
Oil level label SY16C3Y4W(EU)- |
6-5-26 |
26 |
13509503 |
1 |
be care of steam |
6-5-27 |
27 |
13474847 |
1 |
Sign of Forbidding Tilting Machine |
6-5-28 |
28 |
13507562 |
1 |
Control insturction |
6-5-29 |
29 |
13507743 |
1 |
Read manual SY16C3Y4W(EU)- |
6-5-30 |
30 |
13507746 |
1 |
Seat safety caution board |
6-5-31 |
31 |
13166449 |
1 |
Lubricating graphic chart |
6-5-32 |
32 |
13400067 |
1 |
Lifting capability meter |
6-5-33 |
33 |
13507568 |
1 |
Oil-water separator drain |
6-5-34 |
34 |
12880634 |
1 |
counerweight markingSY55C9I2R- |
6-5-35 |
35 |
13132241 |
1 |
Power supply socket |
6-5-36 |
36 |
13507565 |
1 |
Fan warning SY16C3Y4W(EU)-TZ |
6-5-37 |
37 |
13507822 |
1 |
Counter rotating rollers |
6-5-38 |
38 |
13411389 |
1 |
Slewing bearing oil filler mark |
6-5-39 |
39 |
13141404 |
1 |
nameplateSY135C8I3K-TZ-3 |
6-5-40 |
40 |
A210510000007 |
4 |
Rivet |
