SANY SY35C SY35C1 SY35C1Y3WU EXCAVATOR parts catalog 35
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

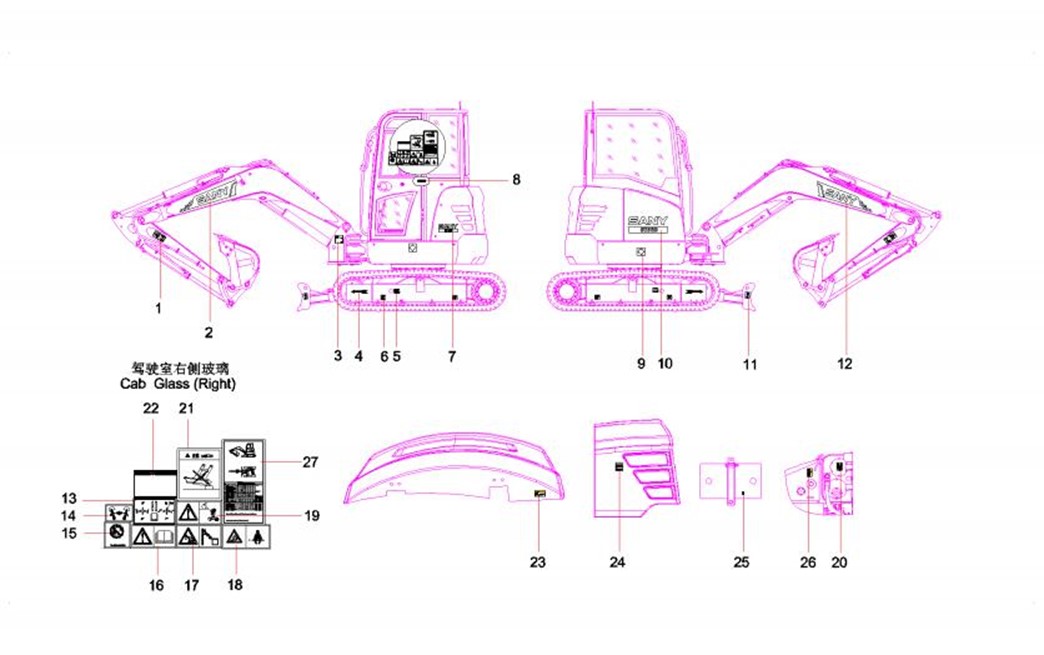

6-3-1 |
1 |
变更或见其他配置 |
2 |
斗杆警示牌 |
Decal, warning, arm |
6-3-2 |
2 |
13793488 |
1 |
动臂左贴花 |
left boom marking SY50C1Y4NU- |
6-3-3 |
3 |
变更或见其他配置 |
1 |
噪音标记 |
Noise marker |
6-3-4 |
4 |
A820603000246 |
2 |
前进方向标志 |
Decal, instruction, forward |
6-3-5 |
5 |
变更或见其他配置 |
2 |
张紧装置警示牌 |
Caution board of tension |
6-3-6 |
6 |
13166446 |
4 |
装运固定点标志 |
Fixed loading spot mark |
6-3-7 |
7 |
13791650 |
1 |
机身左贴花 |
machine body left decal |
6-3-8 |
8 |
A820601000014 |
1 |
推土铲操纵指示牌 |
Decal |
6-3-9 |
9 |
12052090 |
2 |
重心标志 |
Decal, center of gravity |
6-3-10 |
10 |
13791651 |
1 |
机身右贴花 |
machine body right decal |
6-3-11 |
11 |
12052087 |
4 |
吊钩点标示图 |
Label, lifting point |
6-3-12 |
12 |
13793494 |
1 |
动臂右贴花 |
boom right marking SY50C1Y4NU |
6-3-13 |
13 |
A820601990961 |
1 |
操纵标示图 |
Label, instruction, operation |
6-3-14 |
14 |
13156069 |
1 |
脚踏板指示牌 |
Foot pedal mark |
6-3-15 |
15 |
变更或见其他配置 |
1 |
严禁工作时倾斜机器标识牌 |
Sign of Forbidding Tilting Machine |
6-3-16 |
16 |
12496543 |
1 |
查阅说明书警示牌 |
Label, warning, read manual |
6-3-17 |
17 |
变更或见其他配置 |
1 |
高压回避警示牌 |
Decal, warning, high-voltage |
6-3-18 |
18 |
变更或见其他配置 |
1 |
座椅安全警示牌 |
Decal, safety, seat |
6-3-19 |
19 |
变更或见其他配置 |
1 |
钥匙断电警示牌 |
Decal, warning, power-off |
6-3-20 |
20 |
变更或见其他配置 |
1 |
液压油箱标识牌 |
Hydraulic Fuel Tank Mark Board |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
6-5-21 |
21 |
变更或见其他配置 |
1 |
禁止推土铲单侧受力标识牌 |
Decal, warning |
6-5-22 |
22 |
变更或见其他配置 |
1 |
预热警示牌 |
Decal, warning, preheating |
6-5-23 |
23 |
变更或见其他配置 |
1 |
定期清洗散热器标牌 |
Decal, regular-cleaning, radiator |
6-5-24 |
24 |
变更或见其他配置 |
1 |
空滤器警示牌 |
Decal, warning, air cleaner |
6-5-25 |
25 |
13148777 |
1 |
电源标志 |
Power sign |
6-5-26 |
26 |
变更或见其他配置 |
1 |
燃油箱标识牌 |
Logo plate of fuel tank |
6-5-27 |
27 |
13166449 |
1 |
润滑图表 |
Lubricating graphic chart |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

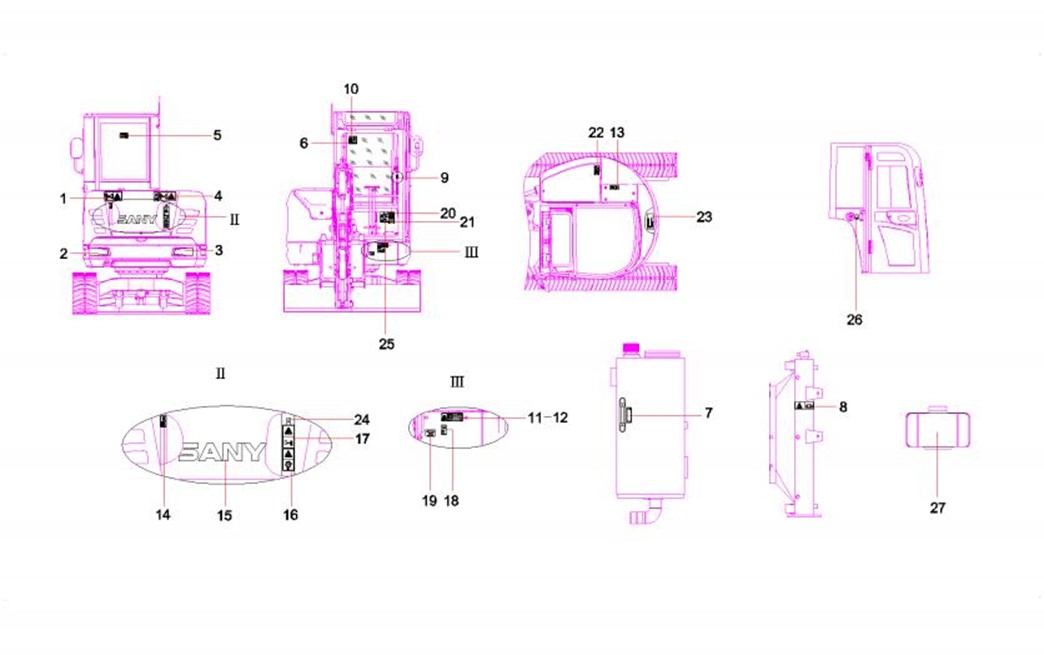

6-7-1 |
1 |
变更或见其他配置 |
2 |
配重警示牌 |
Decal, warning, counterweight |
6-7-2 |
2 |
13166523 |
1 |
配重左反光膜 |
Counterweight left reflective |
6-7-3 |
3 |
13166529 |
1 |
配重右反光膜 |
Counterweight right reflective |
6-7-4 |
4 |
变更或见其他配置 |
1 |
烫手警示标牌 |
Decal, warning, hot surface |
6-7-5 |
5 |
变更或见其他配置 |
1 |
安全出口标志 |
Label, emergency exit |
6-7-6 |
6 |
变更或见其他配置 |
1 |
雨刮器防撞贴花 |
Decal |
6-7-7 |
7 |
A820601990928 |
1 |
油位标签 |
Label, oil level |
6-7-8 |
8 |
变更或见其他配置 |
1 |
防喷溅警示牌 |
Decal, warning, anti-spray |
6-7-9 |
9 |
13155987 |
1 |
先导锁指示牌 |
Leading switch mark |
6-7-10 |
10 |
变更或见其他配置 |
1 |
前窗锁紧警示牌 |
Decal, warning, front window |
6-7-11 |
11 |
变更或见其他配置 |
1 |
铭牌 |
Nameplate |
6-7-12 |
12 |
A210510000007 |
4 |
铆钉 |
Rivet |
6-7-13 |
13 |
变更或见其他配置 |
1 |
禁止站人警示标牌 |
Decal, warning, no standing |
6-7-14 |
14 |
变更或见其他配置 |
1 |
燃油滤清放水贴花 |
fuel cleaner decal |
6-7-15 |
15 |
12880634 |
1 |
配重贴花 |
counerweight markingSY55C9I2R- |
6-7-16 |
16 |
变更或见其他配置 |
1 |
皮带安全警示牌 |
Decal, warning, belt safety |
6-7-17 |
17 |
变更或见其他配置 |
1 |
风扇打手警示标牌 |
Decal, warning, fan |
6-7-18 |
18 |
变更或见其他配置 |
1 |
回转支撑加油标识 |
Slewing bearing oil filler mark |
6-7-19 |
19 |
变更或见其他配置 |
1 |
回转齿轮加油标示 |
Marker, oil feed, swing gear |
6-7-20 |
20 |
变更或见其他配置 |
1 |
座椅调节指示牌 |
Decal, instruction, seat adjustment |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
6-9-21 |
21 |
变更或见其他配置 |
1 |
禁止攀扶警示标牌 |
Decal, warning, no climbing |
6-9-22 |
22 |
变更或见其他配置 |
1 |
油位标签 |
Oil level label SY285C9I2KS-TZ2- |
6-9-23 |
23 |
变更或见其他配置 |
1 |
冷媒更换说明 |
Decal, instruction, refrigerant |
6-9-24 |
24 |
13132241 |
1 |
电源插座标志 |
Power supply socket |
6-9-25 |
25 |
13328466 |
1 |
FOPS&TOPS贴花 |
FOPS&TOPS Decal |
6-9-26 |
26 |
A820601990927 |
1 |
开锁标识牌 |
Label, unlock |
6-9-27 |
27 |
13342566 |
2 |
防滑贴 |
Antiskid paste SY35C2Y4WU-TZ- |

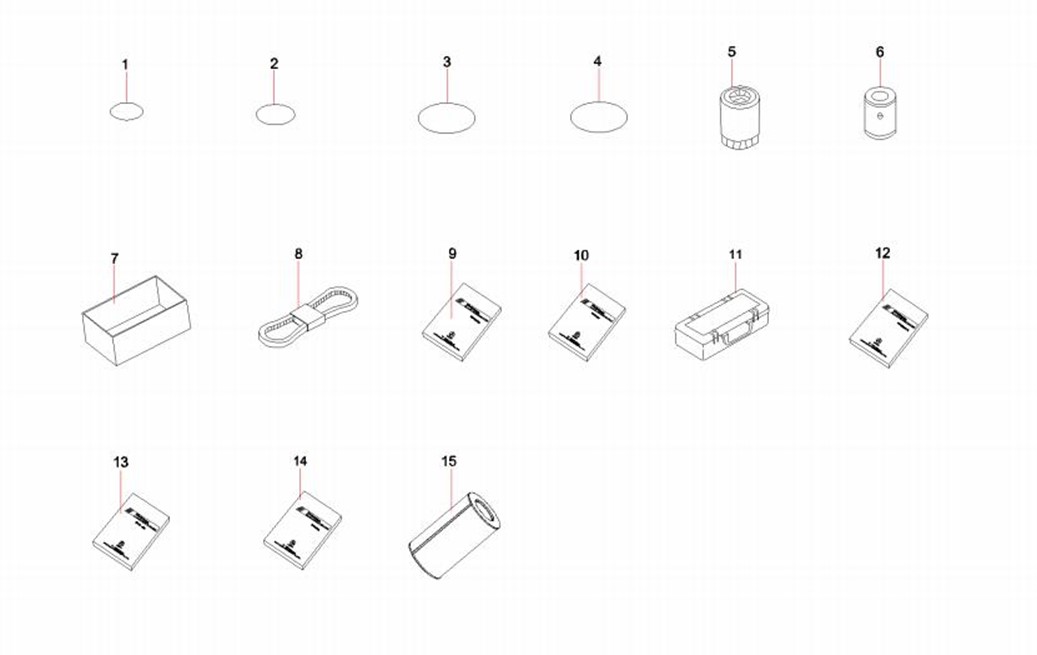

第7章
随机附件
(Attached accessories)
