识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

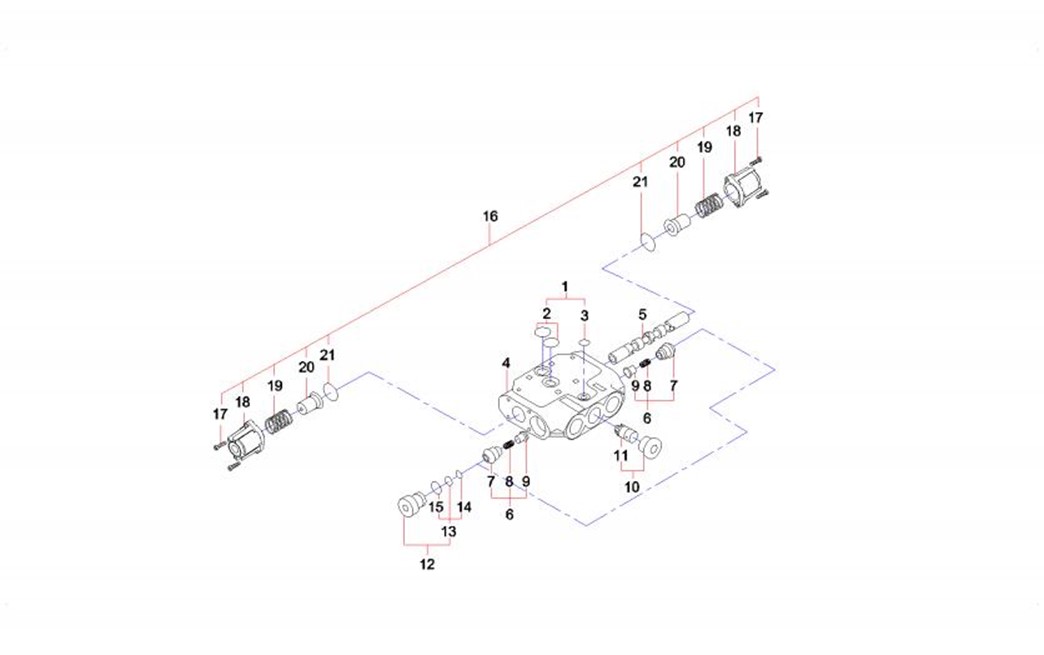

2-247-1

1

60086781

1

阀片间密封组件

Seal GP, valve

2-247-2

2

60038741

2

O形圈

O-ring

2-247-3

3

A230101000499

1

O形圈

O-ring

2-247-4

4

60086727

1

工作阀片

Plate, valve

2-247-5

5

60086722

1

阀芯

Spool, valve

2-247-6

6

60086712

2

单向阀组件

Valve GP, check

2-247-7

7

60086776

2

堵头

Plug

2-247-8

8

60086757

2

弹簧

Spring

2-247-9

9

60086731

2

提升阀

Valve, lift

2-247-10

10

60038027

1

压力补偿组件

Compensator GP, pressure

2-247-11

11

60038509

1

螺塞

Plug, screw

2-247-12

12

60038485

2

螺塞

Plug, screw

2-247-13

13

60038540

2

密封组件

Seal AS

2-247-14

14

60038736

2

O形圈

O-ring

2-247-15

15

24001013

2

O形圈

O-ring

2-247-16

16

60086706

1

液压操作组件

Hydraulic operation GP

2-247-17

17

A210204000116

4

螺钉

Screw M5×16GB70.1

2-247-18

18

60086692

2

盖

Cover

2-247-19

19

60086755

2

弹簧

Spring

2-247-20

20

60086766

2

弹簧座

Seat, spring

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-249-21

21

60008832

2

O形圈

O-ring

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

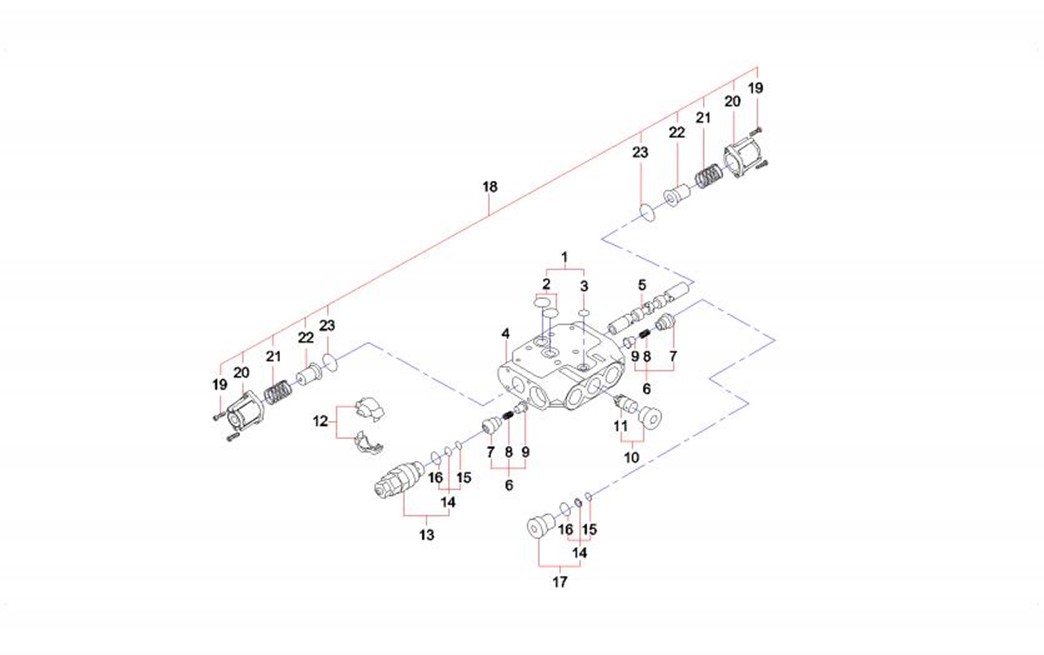

2-251-1

1

60086781

1

阀片间密封组件

Seal GP, valve

2-251-2

2

60038741

2

O形圈

O-ring

2-251-3

3

A230101000499

1

O形圈

O-ring

2-251-4

4

60086727

1

工作阀片

Plate, valve

2-251-5

5

60086718

1

阀芯

Spool, valve

2-251-6

6

60086712

2

单向阀组件

Valve GP, check

2-251-7

7

60086776

2

堵头

Plug

2-251-8

8

60086757

2

弹簧

Spring

2-251-9

9

60086731

2

提升阀

Valve, lift

2-251-10

10

60038027

1

压力补偿组件

Compensator GP, pressure

2-251-11

11

60038390

1

活塞

Piston

2-251-12

12

60008387

2

锁盖

Cover, lock

2-251-13

13

60038057

1

安全阀

Valve, safety

2-251-14

14

60038540

2

密封组件

Seal AS

2-251-15

15

60038736

2

O形圈

O-ring

2-251-16

16

24001013

2

O形圈

O-ring

2-251-17

17

60038485

1

螺塞

Plug, screw

2-251-18

18

60086706

1

液压操作组件

Hydraulic operation GP

2-251-19

19

A210204000116

4

螺钉

Screw M5×16GB70.1

2-251-20

20

60086692

2

盖

Cover

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-253-21

21

60086755

2

弹簧

Spring

2-253-22

22

60086766

2

弹簧座

Seat, spring

2-253-23

23

60008832

2

O形圈

O-ring

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

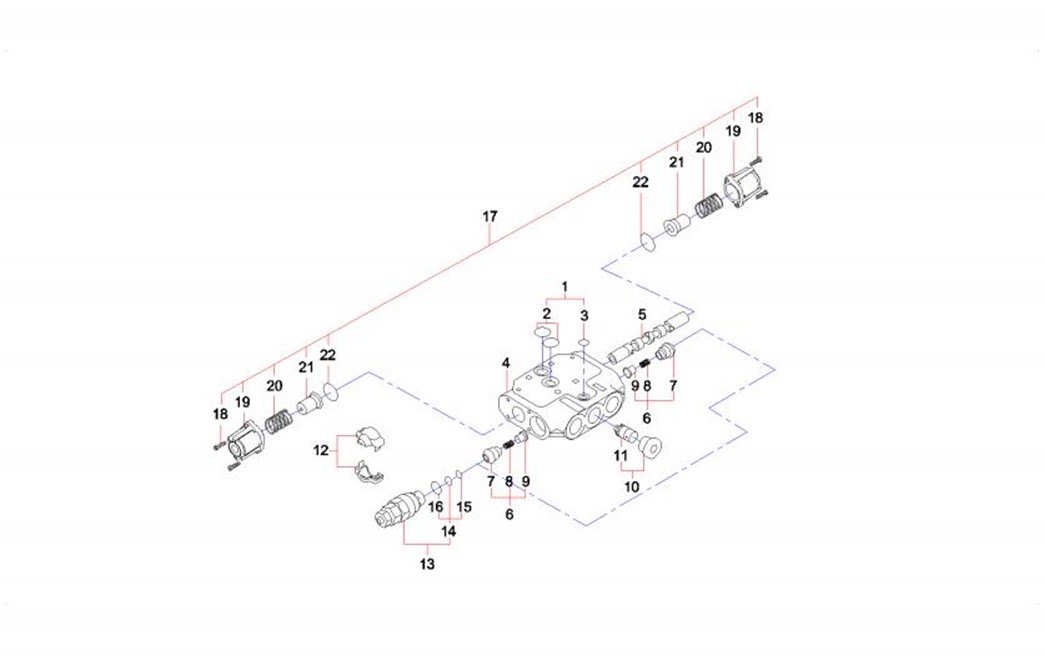

2-255-1

1

60086781

1

阀片间密封组件

Seal GP, valve

2-255-2

2

60038741

2

O形圈

O-ring

2-255-3

3

A230101000499

1

O形圈

O-ring

2-255-4

4

60086727

1

工作阀片

Plate, valve

2-255-5

5

60086719

1

阀芯

Spool, valve

2-255-6

6

60086712

2

单向阀组件

Valve GP, check

2-255-7

7

60086776

2

堵头

Plug

2-255-8

8

60086757

2

弹簧

Spring

2-255-9

9

60086731

2

提升阀

Valve, lift

2-255-10

10

60038027

1

压力补偿组件

Compensator GP, pressure

2-255-11

11

60038390

1

活塞

Piston

2-255-12

12

60008387

2

锁盖

Cover, lock

2-255-13

13

60038057

2

安全阀

Valve, safety

2-255-14

14

60038540

2

密封组件

Seal AS

2-255-15

15

60038736

2

O形圈

O-ring

2-255-16

16

24001013

2

O形圈

O-ring

2-255-17

17

60086706

1

液压操作组件

Hydraulic operation GP

2-255-18

18

A210204000116

4

螺钉

Screw M5×16GB70.1

2-255-19

19

60086692

2

盖

Cover

2-255-20

20

60086755

2

弹簧

Spring
