SANY SY55C SY55C9 SY55C9I2R EXCAVATOR parts catalog 35
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
3-45-21 |
21 |
60167121 |
1 |
安全阀组件 |
Valve GP, relief |
|

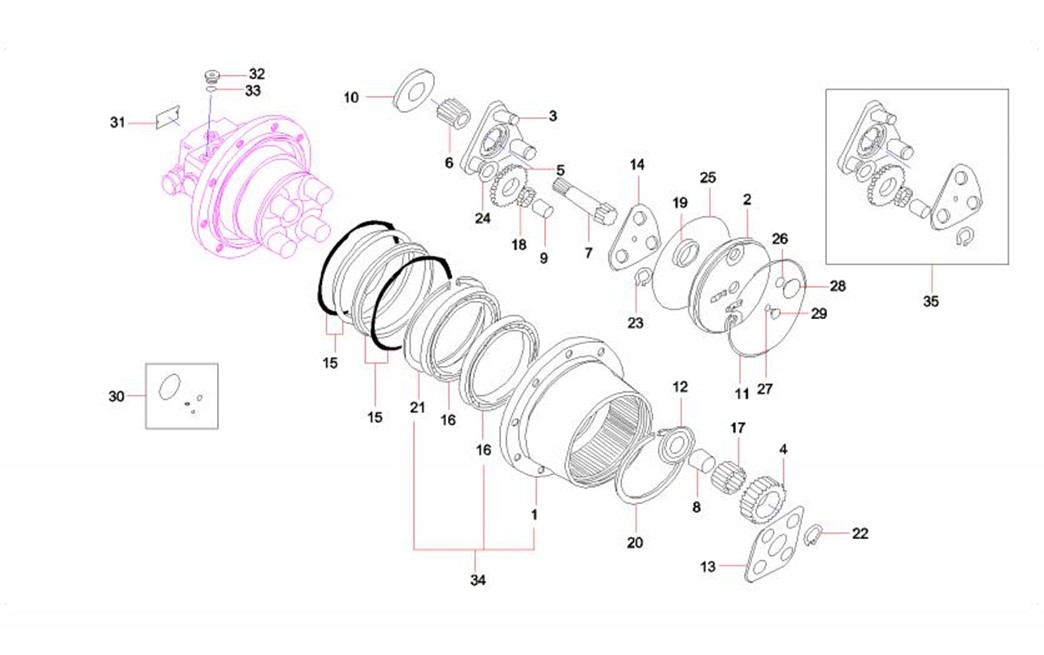

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
3-47-1 |
1 |
60216948 |
1 |
壳体 |
Housing |
|
3-47-2 |
2 |
60216949 |
1 |
后盖 |
Cover, rear |
|
3-47-3 |
3 |
60216950 |
1 |
行星架 |
Carrier, planetary gear |
|
3-47-4 |
4 |
60216951 |
4 |
一级行星轮 |
Gear, sun |
|
3-47-5 |
5 |
60216952 |
3 |
二级行星轮 |
Gear, planetary |
|
3-47-6 |
6 |
60216953 |
1 |
一级太阳轮 |
Gear, sun |
|
3-47-7 |
7 |
60216954 |
1 |
二级太阳轮 |
Gear, sun |
|
3-47-8 |
8 |
60164397 |
4 |
套筒 |
Bush |
|
3-47-9 |
9 |
60216955 |
3 |
套筒 |
Bush |
|
3-47-10 |
10 |
60216956 |
1 |
止动垫圈 |
Washer, lock |
|
3-47-11 |
11 |
60164169 |
1 |
钢丝圈 |
Ring, steel |
|
3-47-12 |
12 |
60216957 |
4 |
止推盘 |
Plate, thrust |
|
3-47-13 |
13 |
60216958 |
1 |
止推盘 |
Plate, thrust |
|
3-47-14 |
14 |
60216959 |
1 |
止推盘 |
Plate, thrust |
|
3-47-15 |
15 |
60164390 |
2 |
浮动油封 |
Seal, floating |
|
3-47-16 |
16 |
60216960 |
2 |
轴承 |
Bearing |
|
3-47-17 |
17 |
60164282 |
136 |
固定销 |
Pin, fixing |
|
3-47-18 |
18 |
60216961 |
69 |
滚针 |
Needle, roller |
|
3-47-19 |
19 |
60216962 |
1 |
滑动环 |
Ring, slide |
|
3-47-20 |
20 |
60216963 |
1 |
止动环 |
Ring, stop |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
3-49-21 |
21 |
60216964 |
1 |
止动环 |
Ring, stop |
|
3-49-22 |
22 |
60167122 |
4 |
卡簧 |
Spring, snap |
|
3-49-23 |
23 |
60216965 |
3 |
止动环 |
Ring, stop |
|
3-49-24 |
24 |
60216966 |
3 |
止动垫圈 |
Washer, lock |
|
3-49-25 |
25 |
60164373 |
1 |
O形圈 |
O-ring |
|
3-49-26 |
26 |
60038799 |
2 |
O形圈 |
O-ring |
|
3-49-27 |
27 |
60038808 |
1 |
O形圈 |
O-ring |
|
3-49-28 |
28 |
60164261 |
2 |
堵头 |
Plug |
|
3-49-29 |
29 |
60164263 |
1 |
堵头 |
Plug |
|
3-49-30 |
30 |
60164291 |
1 |
减速机维修包 |
Repair kit, reducer |
|
3-49-31 |
31 |
60216968 |
1 |
铭牌 |
Nameplate |
|
3-49-32 |
32 |
60164262 |
1 |
堵头 |
Plug |
|
3-49-33 |
33 |
60038798 |
1 |
O形圈 |
O-ring |
|
3-49-34 |
34 |
60216969 |
1 |
壳体组件 |
Housing AS |
|
3-49-35 |
35 |
60216970 |
1 |
行星架Ⅱ组件 |
Carrier, planetary gear |

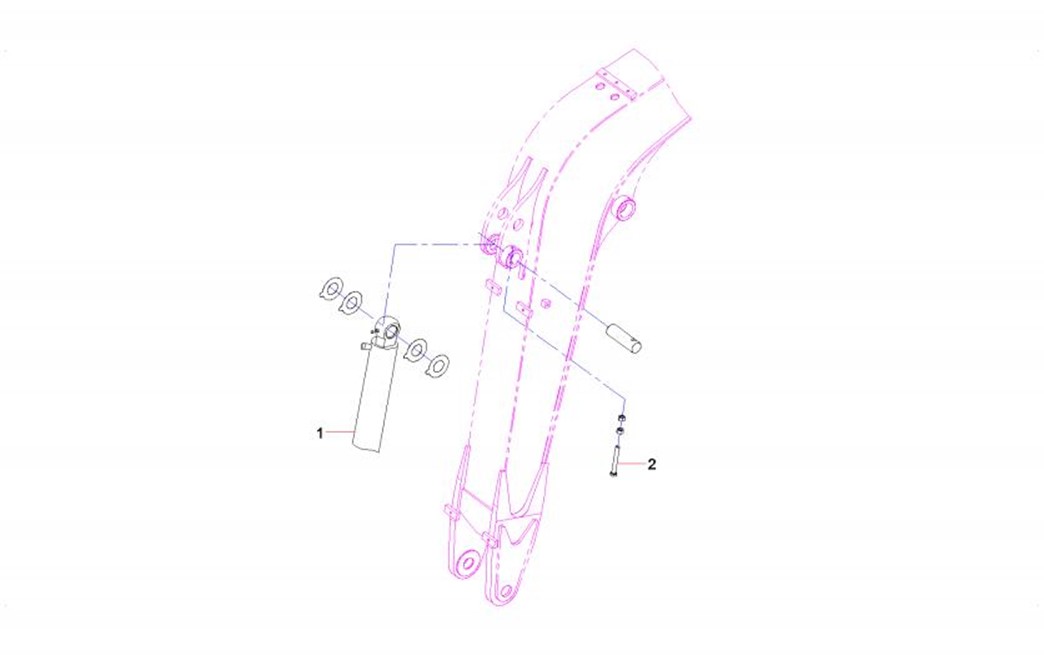

第4章
工作装置
(Work equipment)
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

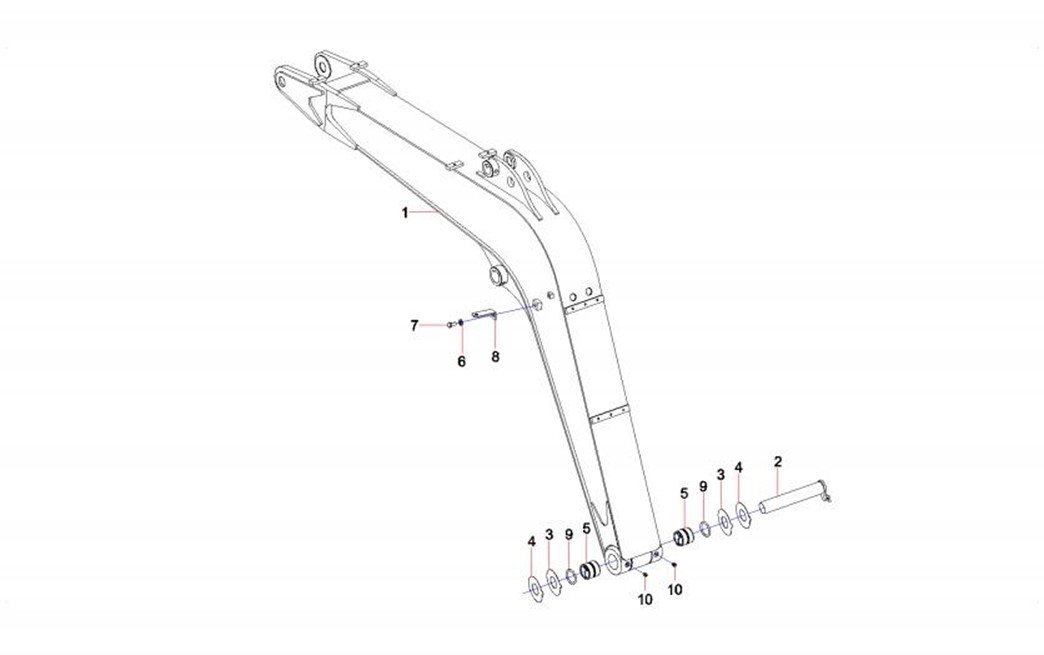

4-3-1 |
1 |
10543247 |
1 |
动臂 |
Boom |
|
4-3-2 |
2 |
10543251 |
1 |
联板销轴 |
Roll, pin |
|
4-3-3 |
3 |
A820102010779 |
2 |
垫片 |
Shim |
|
4-3-4 |
4 |
A820102010780 |
2 |
垫片 |
Shim |
|
4-3-5 |
5 |
A820202005318 |
2 |
轴套 |
Sleeve, shaft |
|
4-3-6 |
6 |
A210405000003 |
1 |
垫圈 |
Washer 16GB97.1 |
|
4-3-7 |
7 |
A210111000263 |
1 |
螺栓 M16×30GB5783 10.9级 |
Bolt M16×30GB5783 10.9 |
|
4-3-8 |
8 |
A820101322531 |
1 |
灯架 |
Bracket, lamp |
|
4-3-9 |
9 |
B230101001118 |
2 |
DLI防尘圈 |
DLI-ring, dustproof |
|
4-3-10 |
10 |
60017380 |
2 |
黄油嘴 |
Fitting, grease |
