SANY SY55C SY55C9 SY55C9I2R EXCAVATOR parts catalog 41

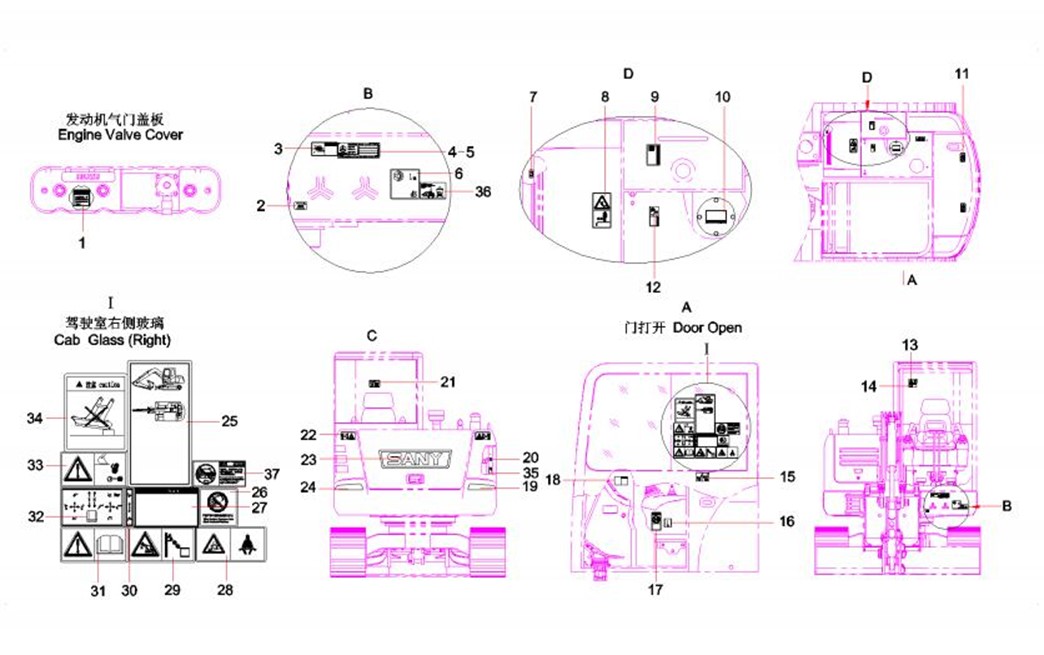

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
6-7-1 |
1 |
10379095 |
1 |
机油加注警示牌 |
Decal |
6-7-2 |
2 |
11172196 |
1 |
回转齿轮加油标示 |
Marker, oil feed, swing gear |
6-7-3 |
3 |
12540826 |
1 |
回转支承加注润滑脂 |
Add grease to swing bearing |
6-7-4 |
4 |
10251978 |
1 |
铭牌 |
Nameplate |
6-7-5 |
5 |
A210510000007 |
4 |
铆钉 |
Rivet |
6-7-6 |
6 |
10385320 |
1 |
噪音标记 |
Label, noise |
6-7-7 |
7 |
A820601990972 |
1 |
电源标志 |
Label, power supply |
6-7-8 |
8 |
A820601990926 |
2 |
防跌落警示牌 |
Decal, warning, falling |
6-7-9 |
9 |
A820601991047 |
1 |
燃油箱标识牌 |
Decal, fuel tank |
6-7-10 |
10 |
A820601991048 |
1 |
液压油箱标识牌 |
Label, identification, hydraulic tank |
6-7-11 |
11 |
12016795 |
2 |
禁止站人警示标牌 |
Decal, warning, no standing |
6-7-12 |
12 |
12185067 |
1 |
液压油加油标识牌 |
Decal, refilling, hydraulic oil |
6-7-13 |
13 |
12052088 |
1 |
前窗锁紧警示牌 |
Decal, warning, front window |
6-7-14 |
14 |
12080939 |
1 |
雨刮器防撞贴花 |
Decal |
6-7-15 |
15 |
A820601990967 |
1 |
座椅调节指示牌 |
Decal, instruction, seat adjustment |
6-7-16 |
16 |
A820601990927 |
1 |
开锁标识牌 |
Label, unlock |
6-7-17 |
17 |
12076696 |
1 |
禁止攀扶警示标牌 |
Decal, warning, no climbing |
6-7-18 |
18 |
11604972 |
1 |
工作模式警示牌 |
Decal |
6-7-19 |
19 |
12880559 |
1 |
配重右反光膜 |
counterweight right reflective |
6-7-20 |
20 |
A820699001109 |
1 |
电源插座标志 |
Label, power socket |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
6-9-21 |
21 |
12052089 |
1 |
安全出口标志 |
Label, emergency exit |
6-9-22 |
22 |
A820601991049 |
2 |
配重警示牌 |
Decal, warning, counterweight |
6-9-23 |
23 |
12880634 |
1 |
配重贴花 |
counerweight markingSY55C9I2R- |
6-9-24 |
24 |
12880533 |
1 |
配重左反光膜 |
counterweight left reflective |
6-9-25 |
25 |
A820601000015 |
1 |
润滑图表 |
Graph, lubrication |
6-9-26 |
26 |
12157387 |
1 |
严禁工作时倾斜机器标识牌 |
Decal, no inclining during operation |
6-9-27 |
27 |
A820699001024 |
1 |
预热警示牌 |
Decal, warning, preheating |
6-9-28 |
28 |
12052084 |
1 |
座椅安全警示牌 |
Decal, safety, seat |
6-9-29 |
29 |
12496542 |
1 |
高压回避警示牌 |
Decal, warning, high-voltage |
6-9-30 |
30 |
A820601000014 |
1 |
推土铲操纵指示牌 |
Decal |
6-9-31 |
31 |
12496543 |
1 |
查阅说明书警示牌 |
Label, warning, read manual |
6-9-32 |
32 |
A820601990961 |
1 |
操纵标示图 |
Label, instruction, operation |
6-9-33 |
33 |
12496541 |
1 |
钥匙断电警示牌 |
Decal, warning, power-off |
6-9-34 |
34 |
11809799 |
1 |
禁止推土铲单侧受力标识牌 |
Decal, warning |
6-9-35 |
35 |
12648410 |
1 |
燃油滤清放水贴花 |
fuel cleaner decal |
6-9-36 |
36 |
12891717 |
1 |
吊装贴花 |
Lifting Marking |
6-9-37 |
37 |
12972179 |
1 |
上车警示牌 |
Loading Warning LableSY55-TZ- |

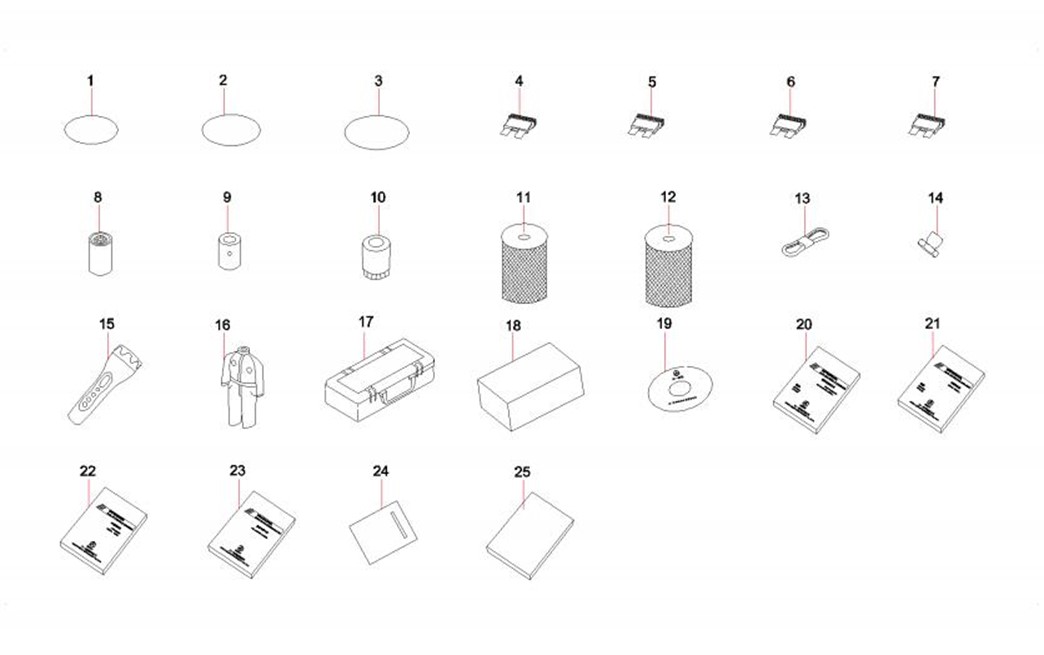

第7章
随机附件
(Accessories)
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
7-3-1 |
1 |
A210609000273 |
2 |
O形圈 |
O-ring 75×5.3GB3452.1 |
7-3-2 |
2 |
A230101000247 |
4 |
O形圈 |
O-ring 10.9×2.3(JISB2401) |
7-3-3 |
3 |
B230101000614 |
1 |
O形圈 |
O-ring |
7-3-4 |
4 |
变更或见其他配置 |
5 |
熔断器5-6.75A 国产 |
Fuse |
7-3-5 |
5 |
变更或见其他配置 |
5 |
熔断器 |
Fuse |
7-3-6 |
6 |
变更或见其他配置 |
5 |
熔断器 |
Fuse |
7-3-7 |
7 |
变更或见其他配置 |
5 |
熔断器 |
Fuse 10-13.35A |
7-3-8 |
8 |
变更或见其他配置 |
1 |
柴油滤清器 |
Filter, diesel fuel |
7-3-9 |
9 |
变更或见其他配置 |
1 |
柴油滤清器 |
Filter, fuel |
7-3-10 |
10 |
B222100000573 |
1 |
机油滤清器 |
Filter, engine oil |
7-3-11 |
11 |
B222100000593 |
1 |
空气滤清器主滤芯 |
Filter core, air filter,main |
7-3-12 |
12 |
B222100000591 |
1 |
空气滤清器安全滤芯 |
Filter core, air filter,safety |
7-3-13 |
13 |
A230106000322 |
1 |
V带 |
V-belt |
7-3-14 |
14 |
变更或见其他配置 |
2 |
堵头 |
Plug |
7-3-15 |
15 |
A241100000596 |
1 |
手提工作灯 |
Flashlight |
7-3-16 |
16 |
A550300000008 |
1 |
工作服 售后人员用 |
Suit, working, service worker |
7-3-17 |
17 |
A810509000100 |
1 |
随机工具 |
Tool, attached |
7-3-18 |
18 |
60041997 |
1 |
随机附件箱 |
Box, accessory |
7-3-19 |
19 |
A279900000038 |
1 |
挖掘机保养光碟 |
CD, excavator maintenance |
7-3-20 |
20 |
A279900000037 |
1 |
三一挖掘机保养及保修手册 |
Manual, operation and |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
7-5-21 |
21 |
11375520 |
1 |
SY55C3零部件图册 |
Parts Book |
7-5-22 |
22 |
B270100000004 |
1 |
柴油机使用说明书 |
Engine Operation Manual |
7-5-23 |
23 |
11375522 |
1 |
操作保养手册 |
Operation Manual |
7-5-24 |
24 |
12252559 |
1 |
三一重机常用件价格目录 |
Catalog, spare part |
7-5-25 |
25 |
59006107 |
1 |
服务第一品牌手册 |
Brochure for No.1 Service Brand |
