SANY SY155C SY155C9 SY155C9I3K EXCAVATOR parts catalog 10
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-79-41 |
41 |
60307172 |
1 |
Fuel Filter Assembly |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

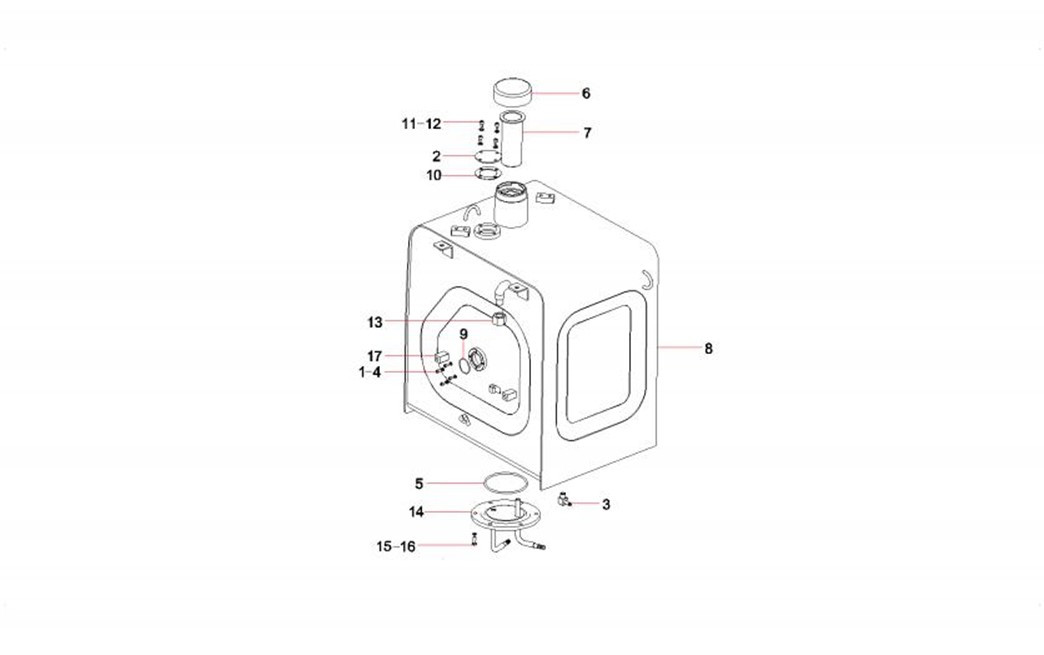

2-81-1 |
1 |
A210204000129 |
4 |
Screw M6×12GB70.1 |
2-81-2 |
2 |
10210078 |
1 |
Plate AS |
2-81-3 |
3 |
10210085 |
1 |
Connector, Fuel Return |
2-81-4 |
4 |
A210405000006 |
4 |
Washer |
2-81-5 |
5 |
A210609000352 |
1 |
O-ring |
2-81-6 |
6 |
A290000002193 |
1 |
Cover, Lock, Fuel Tank |
2-81-7 |
7 |
B222100000201 |
1 |
Strainer AS, fuel (float gauge) |
2-81-8 |
8 |
10249431 |
1 |
Tank, fuel |
2-81-9 |
9 |
B230101000457 |
1 |
O-ring |
2-81-10 |
10 |
10210081 |
1 |
Plate, rubber |
2-81-11 |
11 |
A210204000145 |
4 |
Bolt M8x12 Cap Screw |
2-81-12 |
12 |
A210405000007 |
10 |
Washer |
2-81-13 |
13 |
10210082 |
1 |
Plug |
2-81-14 |
14 |
13603012 |
1 |
bottom cap SY135C9I3K.1.3.5.1.2 |
2-81-15 |
15 |
A210111000090 |
6 |
Bolt |
2-81-16 |
16 |
A210401000017 |
6 |
Washer |
2-81-17 |
17 |
60029642 |
1 |
Sensor GP, fuel level |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

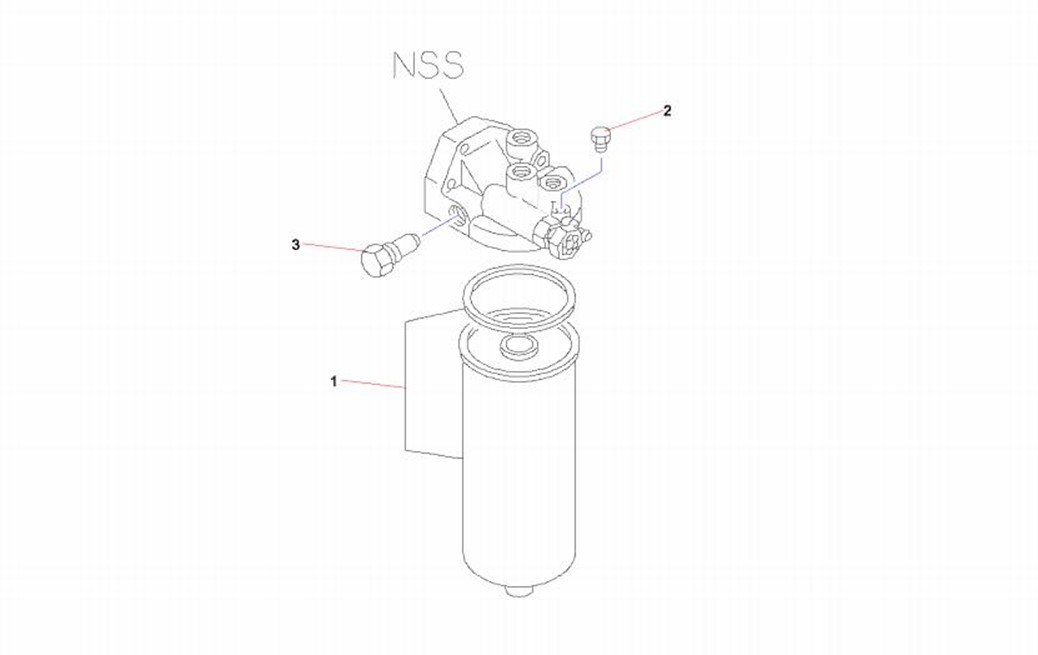

2-83-1 |
1 |
60250941 |
1 |
fule filter |
2-83-2 |
2 |
60311839 |
1 |
Valve |
2-83-3 |
3 |
60115532 |
1 |
Plug |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

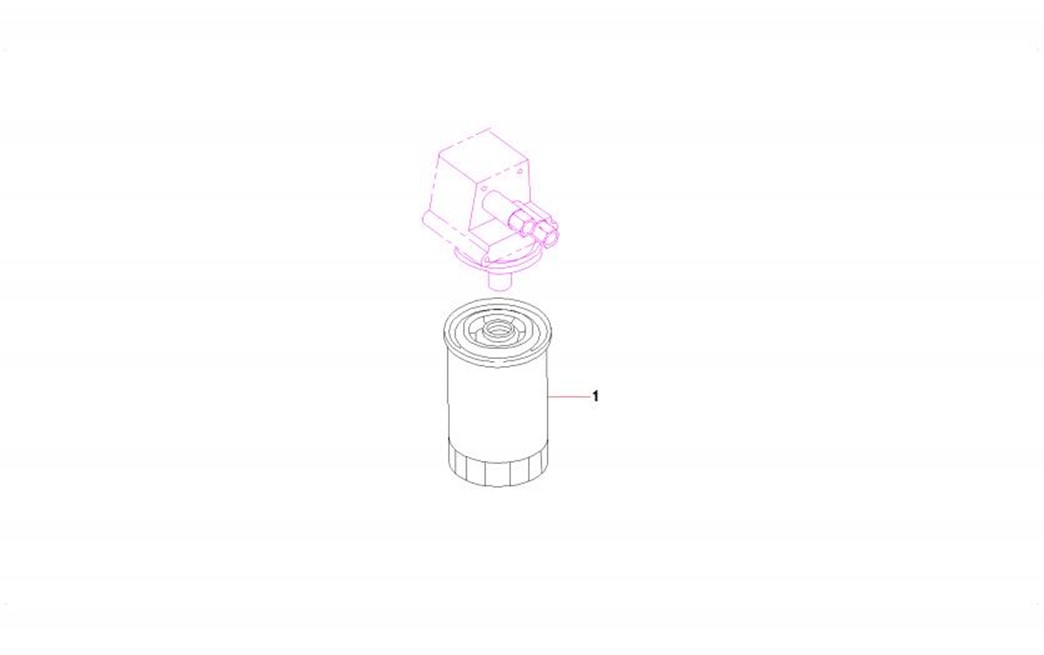

2-85-1 |
1 |
23991450 |
1 |
Filter core |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-87-1 |
1 |
60333507 |
1 |
Cylinder head cover |
2-87-2 |
2 |
60333508 |
1 |
Cylinder head |
2-87-3 |
3 |
60333509 |
1 |
Cylinder block |
2-87-4 |
4 |
60333510 |
1 |
Oil pan and level gauge |
2-87-5 |
5 |
60333511 |
1 |
Camshaft and valve |
2-87-6 |
6 |
60333512 |
1 |
Camshaft piston and flywheel |
2-87-7 |
7 |
60333513 |
1 |
Timing gear case and flywheel |
2-87-8 |
8 |
60333514 |
1 |
Engine mounting |
2-87-9 |
9 |
60333515 |
1 |
Inlet manifold |
2-87-10 |
10 |
60333516 |
1 |
Exhaust manifold |
2-87-11 |
11 |
60333517 |
1 |
Ventilation system |
2-87-12 |
12 |
60333518 |
1 |
Water pump and corrosion resistor |
2-87-13 |
13 |
60333519 |
1 |
Thermostat and housing |
2-87-14 |
14 |
60333520 |
1 |
Water pump of engine |
2-87-15 |
15 |
60333521 |
1 |
Fan and fan belt |
2-87-16 |
16 |
60333522 |
1 |
Turbocharger system |
2-87-17 |
17 |
60333523 |
1 |
Fuel injection system |
2-87-18 |
18 |
60333524 |
1 |
Fuel filter and bracket |
2-87-19 |
19 |
60333525 |
1 |
Oil cooler and oil filter |
2-87-20 |
20 |
60333526 |
1 |
Oil pump and oil strainer |
