SANY SY155C SY155C9 SY155C9I3K EXCAVATOR parts catalog 11
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-89-21 |
21 |
60333527 |
1 |
Oil and vacuum piping of engine |
2-89-22 |
22 |
60333528 |
1 |
Emission piping |
2-89-23 |
23 |
60333529 |
1 |
Engine electrical control parts |
2-89-24 |
24 |
60333530 |
1 |
Starter |
2-89-25 |
25 |
60333531 |
1 |
Generation |
2-89-26 |
26 |
60333532 |
1 |
Radiator bracket |
2-89-27 |
27 |
60333533 |
1 |
Wiring harness and fixing parts |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

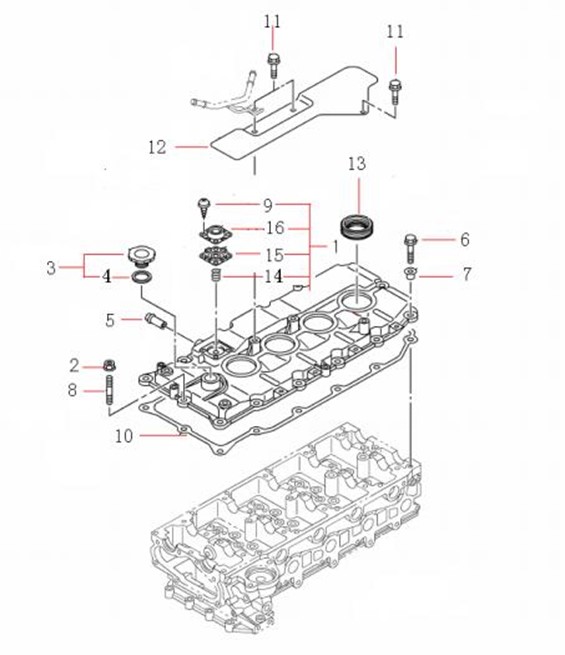

2-91-1 |
1 |
60333534 |
1 |
Cover of CYL HD |
2-91-2 |
2 |
60115419 |
1 |
Nut |
2-91-3 |
3 |
B229900005805 |
1 |
Cap AS, engine oil filler |
2-91-4 |
4 |
60003634 |
1 |
Gasket, seal |
2-91-5 |
5 |
60115605 |
1 |
Hose – Pressure Control Valve |
2-91-6 |
6 |
60115420 |
13 |
Bolt |
2-91-7 |
7 |
60333535 |
14 |
Rubber MTG HD cover |
2-91-8 |
8 |
60115421 |
1 |
Stud |
2-91-9 |
9 |
60333536 |
4 |
Adapter screw |
2-91-10 |
10 |
60065517 |
1 |
Gasket |
2-91-11 |
11 |
B229900004851 |
3 |
Bolt |
2-91-12 |
12 |
60333537 |
1 |
Cover of nozzle INJ |
2-91-13 |
13 |
60117404 |
4 |
Cover |
2-91-14 |
14 |
60115548 |
1 |
Spring |
2-91-15 |
15 |
60115550 |
1 |
Plate |
2-91-16 |
16 |
60115549 |
1 |
Cover |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

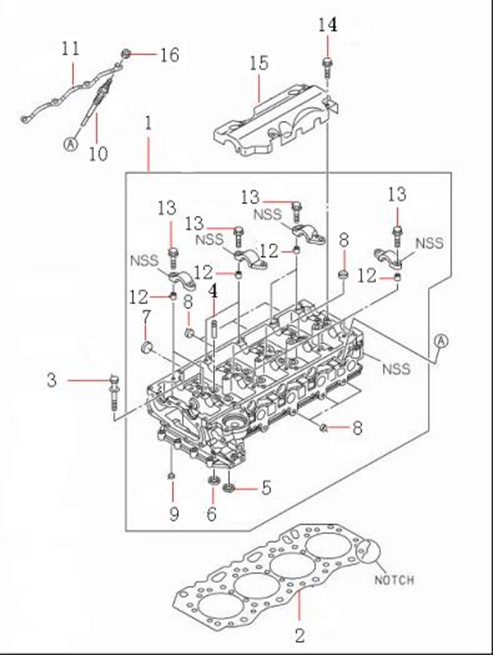

2-93-1 |
1 |
60333538 |
1 |
Cylinder head asm. |
2-93-2 |
2 |
60333539 |
1 |
Cylinder head gasket |
2-93-3 |
3 |
60333542 |
18 |
Cylinder head to block bolt |
2-93-4 |
4 |
60115517 |
16 |
Valve Guide |
2-93-5 |
5 |
60115465 |
8 |
Seat Ring – Intake Valve |
2-93-6 |
6 |
60115483 |
8 |
Seat Ring – Exhaust Valve |
2-93-7 |
7 |
B229900004651 |
2 |
Plug, Cup |
2-93-8 |
8 |
60003702 |
13 |
Seal, ring |
2-93-9 |
9 |
60115417 |
7 |
Cover – Cylinder Head Seal Plug |
2-93-10 |
10 |
60115302 |
4 |
Plug – Preheat |
2-93-11 |
11 |
60115580 |
1 |
Joint Plate – Preheat Plug |
2-93-12 |
12 |
60115553 |
20 |
Pin |
2-93-13 |
13 |
60115552 |
20 |
Bolt |
2-93-14 |
14 |
60115342 |
4 |
Bolt |
2-93-15 |
15 |
60115412 |
1 |
Plate – Retaining |
2-93-16 |
16 |
B229900004816 |
4 |
Nut |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-95-1 |
1 |
60115469 |
2 |
Pin |
2-95-2 |
2 |
60115372 |
1 |
Eye – Lifting (Rear) |
2-95-3 |
3 |
B229900004851 |
2 |
Bolt |
2-95-4 |
4 |
60116346 |
4 |
Pin |
2-95-5 |
5 |
60115489 |
4 |
Pin |
2-95-6 |
6 |
B229900004851 |
2 |
Bolt |
2-95-7 |
7 |
60115480 |
1 |
Hot Water Pipe |
2-95-8 |
8 |
60115520 |
1 |
Bolt |
2-95-9 |
9 |
60115372 |
1 |
Eye – Lifting (Rear) |
2-95-10 |
10 |
B229900004802 |
3 |
Nut |
2-95-11 |
11 |
60115521 |
2 |
Stud |
2-95-12 |
12 |
60115522 |
1 |
Stud |
2-95-13 |
13 |
60115523 |
1 |
Stud |
2-95-14 |
14 |
B229900004538 |
4 |
Shim |
2-95-15 |
15 |
60115554 |
1 |
Stud |
2-95-16 |
16 |
60115555 |
1 |
Stud |
2-95-17 |
17 |
60115418 |
1 |
Plate |
2-95-18 |
18 |
60003567 |
1 |
Bolt |
2-95-19 |
19 |
B229900004899 |
3 |
Bolt |
2-95-20 |
20 |
60333543 |
1 |
Cap of pipe HTR |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-97-21 |
21 |
60003499 |
1 |
Clamp |
