IC

INDEX

PART NUMBER

QTY

PART NAME

4-9-21

21

10167597

2

Shim

4-9-22

22

A810312990209

10

Shim

IC

INDEX

PART NUMBER

QTY

PART NAME

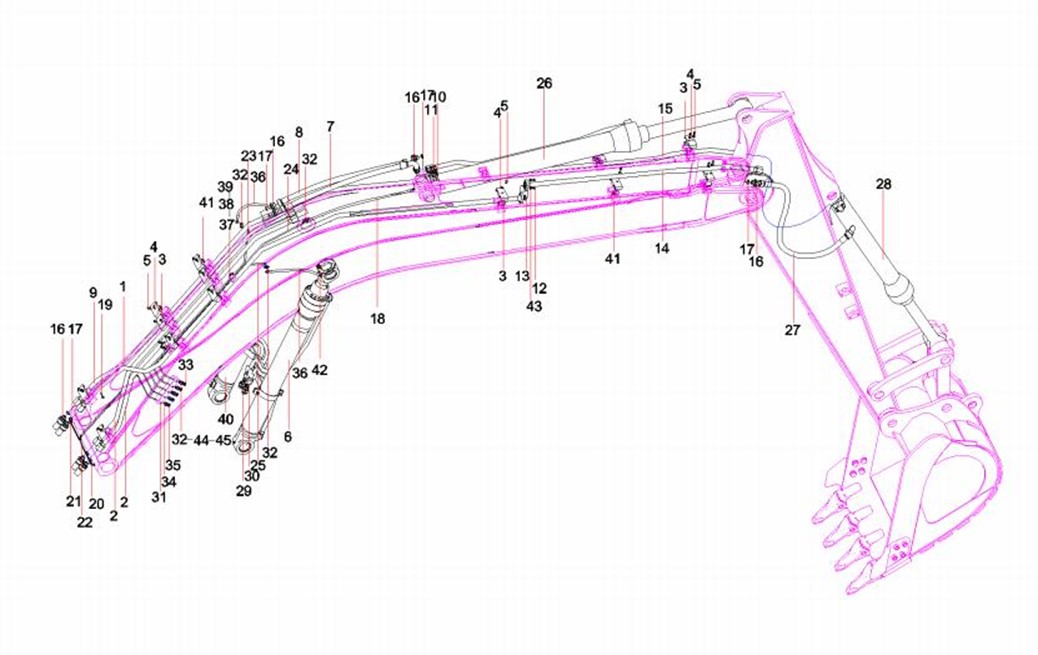

4-11-1

1

13585391

1

steel pipe assembly of bucket

4-11-2

2

13585262

2

steel pipe assembly of arm cylinder

4-11-3

3

13624410

14

clamp SY135C9I3K.3.1-15

4-11-4

4

24000639

14

Washer

4-11-5

5

A210111000103

14

Bolt

4-11-6

6

60024871

1

Cylinder, boom, right

4-11-7

7

60259939

1

rubber hose

4-11-8

8

60043082

1

Hose

4-11-9

9

13585415

1

steel pipe of bucket cylinder

4-11-10

10

B210780000696

2

Split flange

4-11-11

11

A210204000354

4

Screw

4-11-12

12

A210204000215

8

Screw

4-11-13

13

A210609000136

1

O-ring 29.7×3.5JISB2401

4-11-14

14

12042264

1

Pipe GP,steel

4-11-15

15

12043189

1

Pipe GP,steel

4-11-16

16

A820205002473

11

Connector

4-11-17

17

B230101000356

11

O-ring

4-11-18

18

B230103000995

1

Hose

4-11-19

19

60086353

4

Clamp, harness

4-11-20

20

A210715000008

2

Fitting 28×28×70mm

IC

INDEX

PART NUMBER

QTY

PART NAME

4-13-21

21

12043208

1

Tube, grease

4-13-22

22

12043218

1

Tube, grease

4-13-23

23

12043362

1

Tube, grease

4-13-24

24

12043226

1

Tube, grease

4-13-25

25

12043349

1

Tube, grease

4-13-26

26

60024873

1

Cylinder, arm

4-13-27

27

B230103003807

2

Rubber hose 4SH20-DKOS-1500

4-13-28

28

60024870

1

Cylinder, bucket

4-13-29

29

B230101000090

4

O-ring

4-13-30

30

A820205002472

4

Connector

4-13-31

31

B229900000686

5

Fitting, grease

4-13-32

32

A820205001235

6

Connector

4-13-33

33

24000612

3

Washer 14GB93

4-13-34

34

B210770000085

2

Joint, pipe

4-13-35

35

A210434000005

2

Washer 10JB982

4-13-36

36

B230103005361

2

Hose

4-13-37

37

A820101345161

2

Clamp, pipe

4-13-38

38

A210204000339

6

Screw M8×12GB70.1 10.9

4-13-39

39

24000511

6

Washer

4-13-40

40

60024872

1

Cylinder, boom, left

IC

INDEX

PART NUMBER

QTY

PART NAME

4-15-41

41

12448345

10

Pipe, steel

4-15-42

42

A820205000858

3

Connector

4-15-43

43

24000512

8

Washer

4-15-44

44

B210780000191

6

Connector

4-15-45

45

B229900001092

6

Sleeve, special

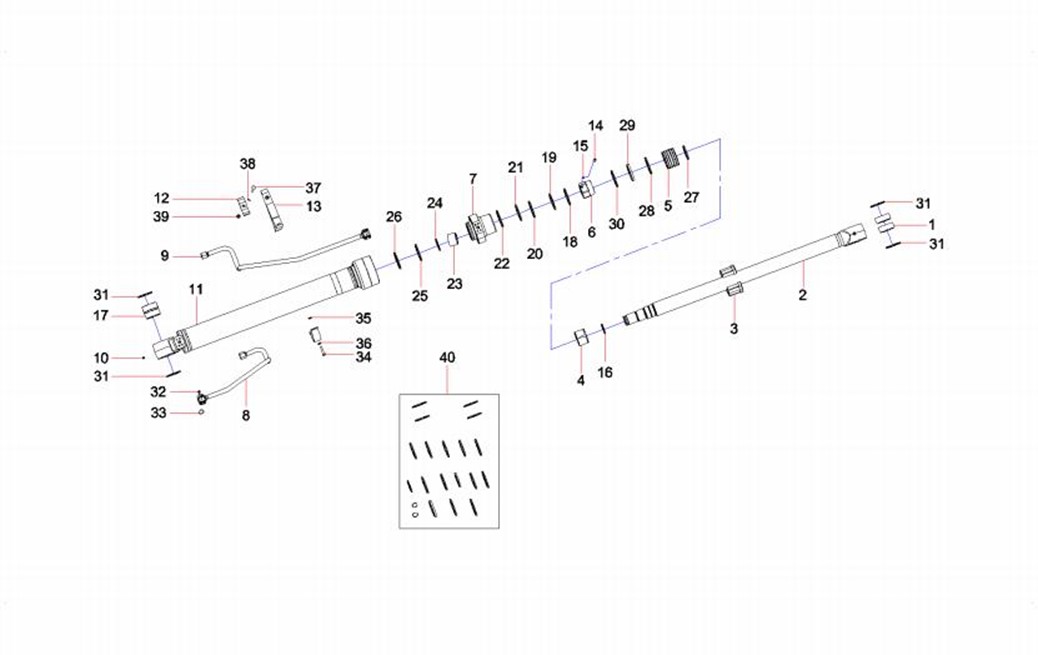

IC

INDEX

PART NUMBER

QTY

PART NAME

4-17-1

1

60249056

2

C-Shaft Sleeve

4-17-2

2

60084705

1

Rod, piston

4-17-3

3

A210204000298

12

Screw M14×65GB70.1

4-17-4

4

60287017

1

Bumper Sleeve

4-17-5

5

60287018

1

Piston

4-17-6

6

60287019

1

Nut

4-17-7

7

60084696

1

Cover, end

4-17-8

8

60329018

1

(right)Boom cylinder pipe assembly

4-17-9

9

60329019

1

(right)Boom cylinder pipe assembly

4-17-10

10

A880899010002

1

Cup, oil

4-17-11

11

60329022

1

Cylinder body

4-17-12

12

60169606

2

Plate, pressure

4-17-13

13

60329023

1

Tube collar assembly

4-17-14

14

60084741

1

Screw M10×12GB80

4-17-15

15

60080467

1

Ball, steel

4-17-16

16

60084694

1

Gasket

4-17-17

17

60295053

1

Graphite liner copper sleeve

4-17-18

18

A880808070027

1

Ring, dust

4-17-19

19

60084740

1

Ring, retaining

4-17-20

20

60249041

1

Seal Ring
