识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-241-21

21

60221606

2

弹簧

Spring

2-241-22

22

60008602

1

接头

Connector

2-241-23

23

60008809

1

圆板

Plate, circular

2-241-24

24

60038479

1

螺母

Nut

2-241-25

25

60192531

1

橡胶罩

Cover, rubber

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-243-6

6

60237073

2

内六角螺钉

screw

2-243-9

9

60237074

2

压盘

cover

2-243-12

12

60237075

1

安装板

plate

2-243-23

23

60237078

2

内六角螺钉

screw

2-243-31

31

60008690

4

轴套

Sleeve,shaft

2-243-32

32

60008585

2

凸轮轴

Camshaft

2-243-33

33

60008591

2

凸轮

Plate, cam

2-243-34

34

60237082

2

紧定螺钉

set screw

2-243-35

35

60008592

4

调整螺杆

Screw, adjusting

2-243-36

36

60038480

4

螺母

Nut

2-243-37

37

60237083

2

护套

protective sleeve

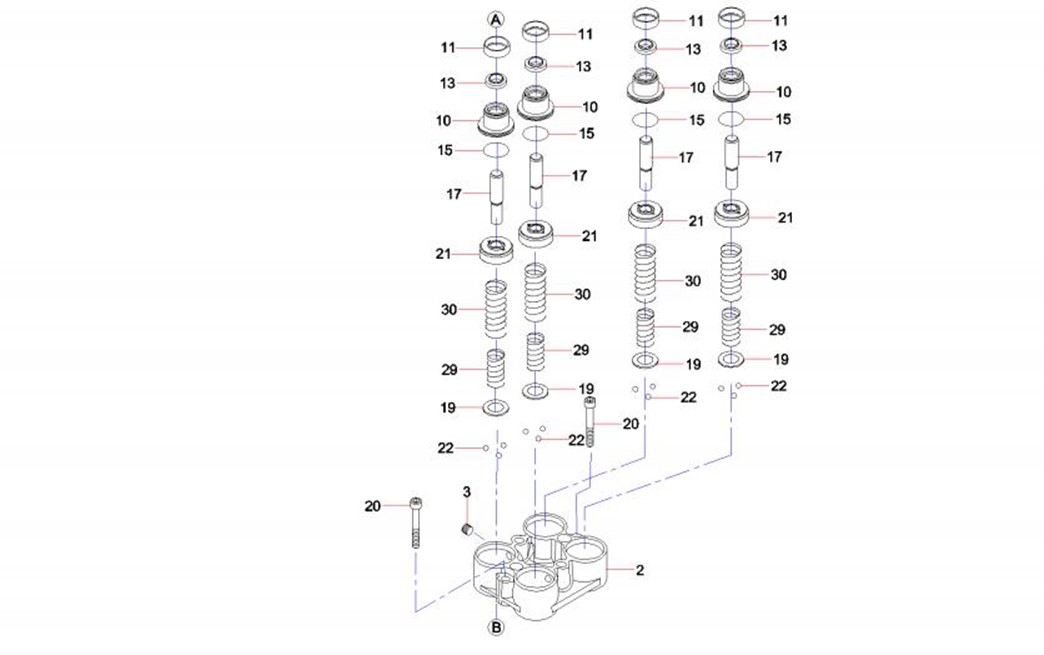

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-245-2

2

60237072

1

阀体

casing

2-245-3

3

60008728

1

紧定螺钉

Setscrew

2-245-10

10

60163768

4

堵

PLUG

2-245-11

11

60008754

4

盖

Cover

2-245-13

13

60163771

4

防尘圈

Ring, dust

2-245-15

15

60038720

4

O形圈

O-ring

2-245-17

17

60273527

4

柱塞

rod

2-245-19

19

60008756

4

弹簧座

Seat, spring

2-245-20

20

60038563

2

内六角螺钉

Bolt

2-245-21

21

60008803

4

活塞

Piston

2-245-22

22

60237077

12

滚珠

roller

2-245-29

29

60008766

4

弹簧

Spring

2-245-30

30

60008767

4

弹簧

Spring

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-247-1

1

60273523

1

壳体

casing

2-247-4

4

60273524

2

堵头

plug

2-247-5

5

60221657

2

O形圈

O-ring

2-247-7

7

60273525

2

阀座

seat

2-247-8

8

60273526

2

滚珠

steel ball

2-247-14

14

60038727

2

O形圈

O-ring

2-247-16

16

60038820

4

O形圈

O-ring

2-247-18

18

60008597

4

垫圈

Washer

2-247-24

24

60273528

4

阀芯

spool

2-247-25

25

60237080

4

弹簧座

spring seat

2-247-26

26

60008589

4

垫圈

Washer

2-247-27

27

60008594

4

弹簧

Spring

2-247-28

28

60038221

4

弹簧

Spring

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-249-1

1

11287446

40

G3/8-M16接头

Joint

2-249-2

2

B230101000049

53

O形圈

O-ring 13.8×2.4JISB2401

2-249-3

3

60217141

9

压力传感器

Pressure Sensor

2-249-4

4

B210780000636

22

管接头

Connector, pipe

2-249-5

5

A820205000947

13

堵头

Plug

2-249-12

12

B210780000015

13

管接头

Connector, pipe

2-249-14

14

B210780001404

2

管接头

Connector, pipe

2-249-15

15

B220401000316

1

三通梭阀

Valve, shuttle, three-way

2-249-16

16

11287448

1

继电器接头

Connector, relay

2-249-22

22

12252614

1

板

Plate

2-249-24

24

10899646

1

G1/8接头

Connector

2-249-25

25

A210608000007

1

O形圈

O-ring

2-249-26

26

A820205002445

9

管接头

Connector

2-249-27

27

B230101000047

12

O形圈

O-ring

2-249-37

37

A220401000593

6

单向节流阀

Valve, one-way, throttle

2-249-38

38

A820205001771

3

堵头

Plug

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-251-4

4

B210780000636

22

管接头

Connector, pipe

2-251-6

6

B230103002375

3

胶管

Hose, rubber

2-251-7

7

B230103003183

4

胶管

Hose, rubber

2-251-8

8

B230103000076

7

胶管

Hose, rubber

2-251-9

9

10077269

1

过渡块

Adapter

2-251-10

10

A210204000362

4

螺钉M12×70GB70.1 10.9级

Screw M12×70GB70.1 10.9

2-251-11

11

A210401000002

4

垫圈

Washer 12GB93

2-251-12

12

B210780000015

13

管接头

Connector, pipe

2-251-13

13

21003891

1

胶管

Hose, rubber

2-251-17

17

B230103001889

1

胶管

Hose assembly

2-251-18

18

B230103001885

3

胶管

Hose

2-251-19

19

B230103001082

1

胶管

Hose

2-251-20

20

B230103000694

2

胶管

Hose, rubber

2-251-21

21

B230103003136

1

胶管

Hose

2-251-23

23

B230103003612

1

胶管

Hose, rubber

2-251-27

27

B230101000047

12

O形圈

O-ring

2-251-28

28

13306939

1

三胶管管夹

Clamp of Three Rubber Hose

2-251-29

29

13306940

1

三胶管胶套

Rubber pad of Three Rubber Hose

2-251-30

30

A210111000293

1

螺栓

Bolt M8×30GB5783 10.9

2-251-31

31

24000633

2

垫圈8GB97.1 达克锈

Washer
