识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

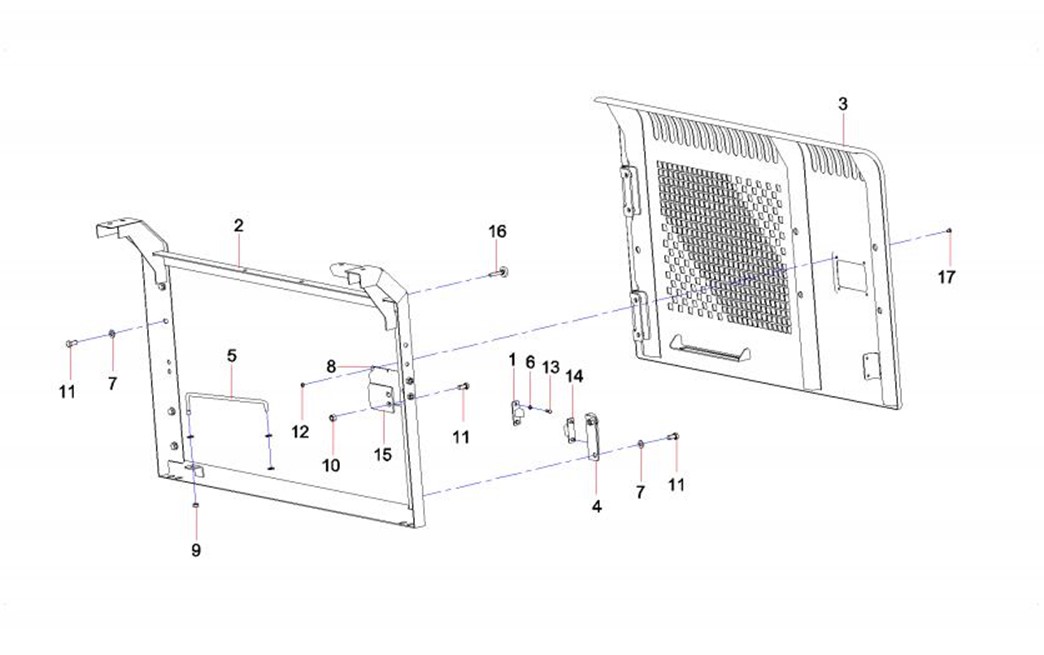

2-313-1

1

A810502010207

2

缓冲块

Block, buffer

2-313-2

2

12768288

1

左门安装架

Left door mounting frame

2-313-3

3

12771752

1

左门

Left DoorⅠSY385C2M2KS.1.6.3.2

2-313-4

4

12770893

1

左门

Right

2-313-5

5

12769206

2

固定块

fixed blockSY385C2M2KS.1.6.3.5

2-313-6

6

12018543

2

风钩

Catch

2-313-7

7

A210405000006

8

垫圈

Washer 6GB97.1

2-313-8

8

A210405000001

22

垫圈

Washer 12GB97.1

2-313-9

9

A222200000012

2

门锁

Lock, door

2-313-10

10

A210307000017

4

螺母

Nut M10GB6170

2-313-11

11

A210307000001

6

螺母

Nut M12GB6170

2-313-12

12

A210111000036

8

螺栓

Bolt M12×20(GB5783)

2-313-13

13

A210111000037

4

螺栓

Bolt M12×25GB5783

2-313-14

14

A210111000038

4

螺栓

Bolt M12×30GB5783

2-313-15

15

11817218

8

防松螺母

Nut

2-313-16

16

A210111000080

8

螺栓

Bolt M6×20GB5783

2-313-17

17

A820405000009

2

卡座

Holder

2-313-18

18

A820101118440

2

锁卡板

Plate, locking

2-313-19

19

A810502019056

2

定位螺钉

Setscrew

2-313-20

20

11817247

8

固定卡座

Anchor, clamp

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

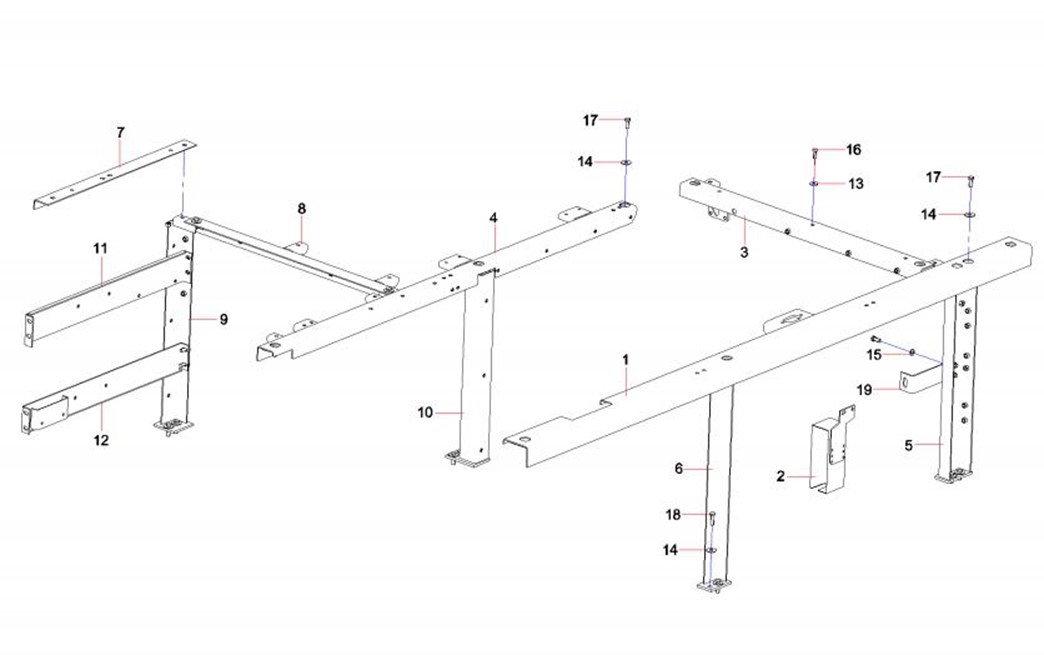

2-315-1

1

11845473

1

后横梁

Beam, cross, rear

2-315-2

2

11208991

1

熄火装置支架

Bracket, engine shutdown device

2-315-3

3

11168093

1

消音器罩安装梁

Beam, mounting, muffler

2-315-4

4

11845247

1

主横梁

Beam, cross, main

2-315-5

5

11824931

1

右后立柱

Pillar, rear, right

2-315-6

6

11168271

1

左后立柱

Pillar, rear, left

2-315-7

7

12581220

1

前横梁

Beam, cross, front

2-315-8

8

12581211

1

左前盖安装梁

Beam, mounting, front left cover

2-315-9

9

12170358

1

前立柱

Pillar, front

2-315-10

10

11168365

1

中立柱

Pillar, middle

2-315-11

11

12207207

1

U型梁

U-beam

2-315-12

12

12207223

1

U型梁

U-beam

2-315-13

13

60060546

1

垫圈10GB96.1 达克锈

Washer 10GB96.1

2-315-14

14

60060548

21

垫圈12GB96.1 达克锈

Washer 12GB96.1

2-315-15

15

24000639

2

垫圈12GB97.1 达克锈

Washer

2-315-16

16

A210111000024

2

螺栓

Bolt M10×30GB5783 10.9

2-315-17

17

A210111000202

15

螺栓

Bolt M12×30GB578310.9

2-315-18

18

A210111000204

7

螺栓

Bolt M12×40GB5783 10.9

2-315-19

19

11416341

1

板

Plate

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-317-1

1

A810502010207

1

缓冲块

Block, buffer

2-317-2

2

12770892

1

右门安装架

right door frame

2-317-3

3

12770893

1

左门

Right

2-317-4

4

12769206

1

固定块

fixed blockSY385C2M2KS.1.6.3.5

2-317-5

5

12018543

1

风钩

Catch

2-317-6

6

A210405000006

4

垫圈

Washer 6GB97.1

2-317-7

7

A210405000001

8

垫圈

Washer 12GB97.1

2-317-8

8

A222200000012

1

门锁

Lock, door

2-317-9

9

A210307000017

1

螺母

Nut M10GB6170

2-317-10

10

A210307000001

4

螺母

Nut M12GB6170

2-317-11

11

A210111000101

8

螺栓M12×25GB5783 10.9级

Bolt M12×25GB5783 10.9

2-317-12

12

A210307000016

6

螺母

Nut M6GB6170

2-317-13

13

A210111000079

4

螺栓

Bolt M6×16GB5783

2-317-14

14

A820405000009

1

卡座

Holder

2-317-15

15

A820101118440

1

锁卡板

Plate, locking

2-317-16

16

A810502019056

1

定位螺钉

Setscrew

2-317-17

17

10911866

4

固定卡座

Anchor, clamp

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

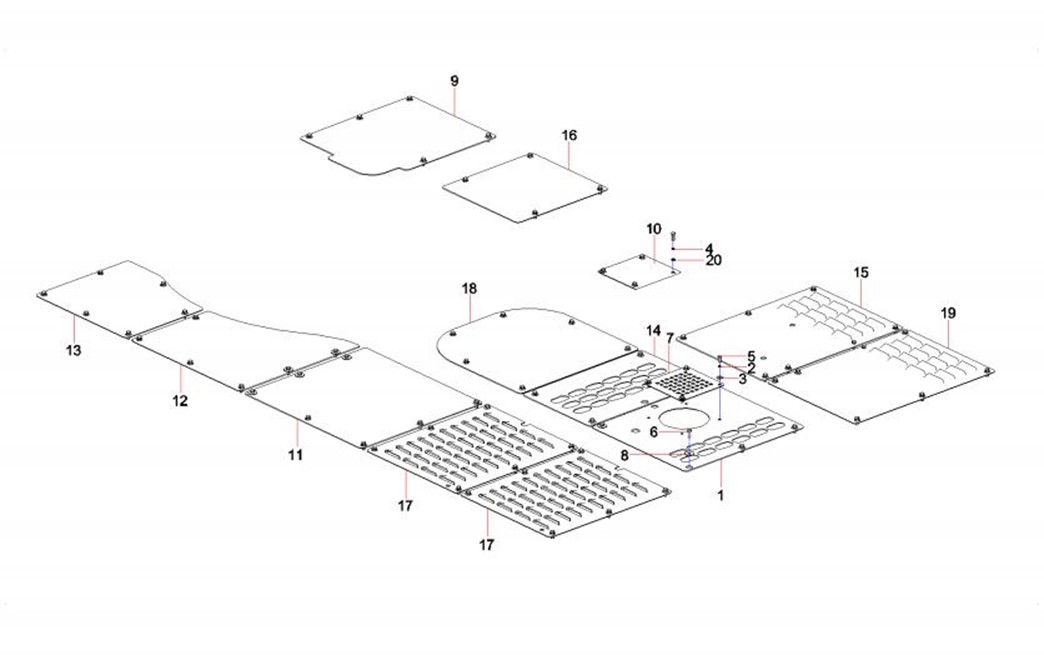

2-319-1

1

13412884

1

中底盖

Central seat cover

2-319-2

2

A210401000001

4

垫圈

Washer 10GB93

2-319-3

3

A210404000003

4

垫圈

Washer 10GB96.1

2-319-4

4

变更或见其他配置

4

垫圈

Washer 12GB93

2-319-5

5

A210111000197

4

螺栓

Bolt M10×25GB5783 10.9

2-319-6

6

A210111000038

74

螺栓

Bolt M12×30GB5783

2-319-7

7

A820101117947

1

盖

Cover

2-319-8

8

13300896

70

加厚垫片

Thickening Washer

2-319-9

9

13692137

1

板

Plate Ⅰ SY385C2M2KS.1.6.10-1

2-319-10

10

13692136

1

盖板

Cover palte SY385C2M2KS.1-1A

2-319-11

11

13692138

1

板

Plate Ⅶ SY385C2M2KS.1.6.10-7

2-319-12

12

13692139

1

板

Plate Ⅷ SY385C2M2KS.1.6.10-8

2-319-13

13

13692140

1

板

Plate Ⅸ SY385C2M2KS.1.6.10-9

2-319-14

14

13412874

1

板

Plate Ⅹ SY425C1M2K.1.6.10a-10

2-319-15

15

11820583

1

板

Plate

2-319-16

16

13412876

1

板

PlateⅡ SY425C1M2K.1.6.10a-2

2-319-17

17

11735809

2

板

Plate

2-319-18

18

13412878

1

板

Plate Ⅴ SY425C1M2K.1.6.10a-5

2-319-19

19

11735812

1

板

Plate

2-319-20

20

A210404000004

4

垫圈

Washer 12GB96.1

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

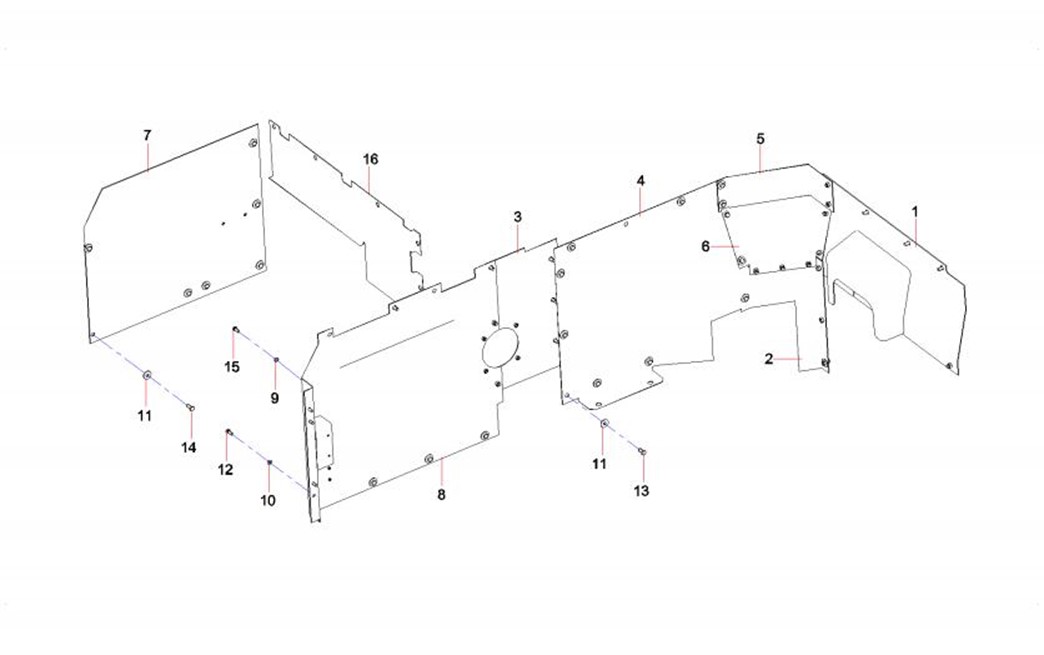

2-321-1

1

12871296

1

右隔板

Right

2-321-2

2

12791178

1

右下隔板

Partition, lower, right

2-321-3

3

11168713

1

左隔板

Partition, left

2-321-4

4

11168717

1

左隔板

Partition, left

2-321-5

5

11421009

1

角部隔板

Partition, corner

2-321-6

6

11421010

1

角部隔板

Partition, corner

2-321-7

7

11987181

1

前隔板总成

Partition AS, front

2-321-8

8

12481000

1

左隔板

Left clapboard Ⅰ

2-321-9

9

A210405000006

2

垫圈

Washer 6GB97.1

2-321-10

10

A210405000011

4

垫圈

Washer 10GB97.1

2-321-11

11

A210404000004

44

垫圈

Washer 12GB96.1

2-321-12

12

A210111000018

4

螺栓

Bolt M10×25GB5783

2-321-13

13

A210111000037

39

螺栓

Bolt M12×25GB5783

2-321-14

14

A210111000101

5

螺栓M12×25GB5783 10.9级

Bolt M12×25GB5783 10.9

2-321-15

15

A210111000080

2

螺栓

Bolt M6×20GB5783

2-321-16

16

12309046

1

空滤挡板

Plate, retaining, air cleaner

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

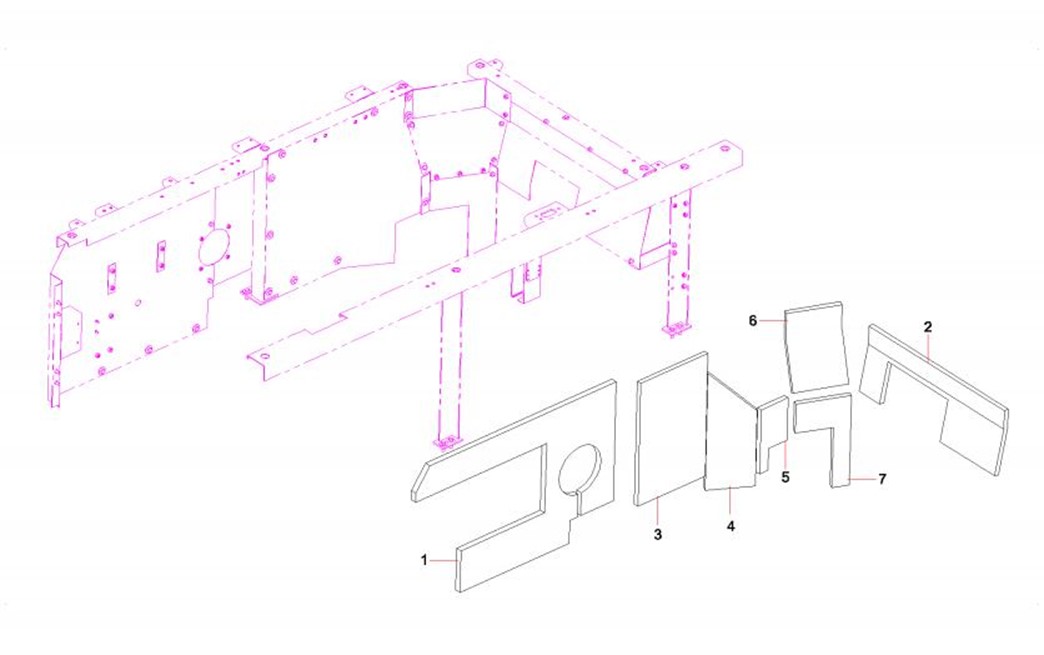

2-323-1

1

11845905

1

降噪海绵

Sponge,denoising

2-323-2

2

12929444

1

降噪海绵

Right part

2-323-3

3

11169075

1

降噪海绵

Sponge, noise-absorption

2-323-4

4

11169076

1

降噪海绵

Sponge, noise-absorption

2-323-5

5

11169077

1

降噪海绵

Sponge, noise-absorption

2-323-6

6

11169078

1

降噪海绵

Sponge, noise-absorption

2-323-7

7

11169079

1

降噪海绵

Sponge, noise-absorption
