识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-25-1

1

21050781

4

螺钉

Screw

4-25-2

2

B230101000578

1

O形圈

O-ring 40.7×3.5JISB2401

4-25-3

3

60053919

1

斗杆油缸

Cylinder, arm

4-25-4

4

12469952

1

钢管

Tube

4-25-5

5

12234202

1

管夹

Clamp, pipe

4-25-6

6

12467867

1

管夹

Clamp, pipe

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-27-1

1

60154007

1

缸体

cylinder body

4-27-2

2

60154021

1

活塞杆

piston rod

4-27-3

3

60153999

1

端盖

end cover

4-27-4

4

60154012

1

滑动轴套

shaft sleeve

4-27-5

5

60153994

1

挡圈

Retaining Ring

4-27-6

6

60153980

1

缓冲圈

Bumper Sleeve

4-27-7

7

60154051

1

轴用密封圈

Seal Ring

4-27-8

8

60154025

1

开口挡圈

Retaining Ring

4-27-9

9

60154041

1

防尘圈

Dust Ring

4-27-10

10

60154035

1

O形圈

O-ring

4-27-11

11

60153989

1

O形圈挡圈

Ring, retaining

4-27-12

12

A210204000267

14

螺钉M20×100GB70.1 12.9级

Screw M20×100GB70.1 12.9

4-27-13

13

60153982

1

缓冲套

Bumper Sleeve

4-27-14

14

60154043

1

缓冲环

Bumper Sleeve

4-27-15

15

60154013

1

活塞

Piston

4-27-16

16

60154046

1

孔用密封圈

Ring, seal

4-27-17

17

60154039

2

成型导向环

Ring, guide

4-27-18

18

60153986

2

纳污环

Ring, contaminant

4-27-19

19

60154027

1

螺钉

Screw

4-27-20

20

21010039

1

钢球

Steel Ball

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-29-21

21

60065195

1

后缓冲套

Sleeve, buffer, rear

4-29-22

22

60065212

1

缓冲泄压环

Ring, pressure relief, buffer

4-29-23

23

60065194

1

挡环

Ring, retaining

4-29-24

24

60153983

1

卡圈

Ring, retainer

4-29-25

25

60046228

2

B型轴套

Sleeve, shaft

4-29-26

26

60046231

4

防尘圈

Ring, dust

4-29-27

27

60153993

1

挡圈

Retaining Ring

4-29-28

28

A880899010003

2

直通式压注油杯

Oil cup, forced filling, straight-flow

4-29-29

29

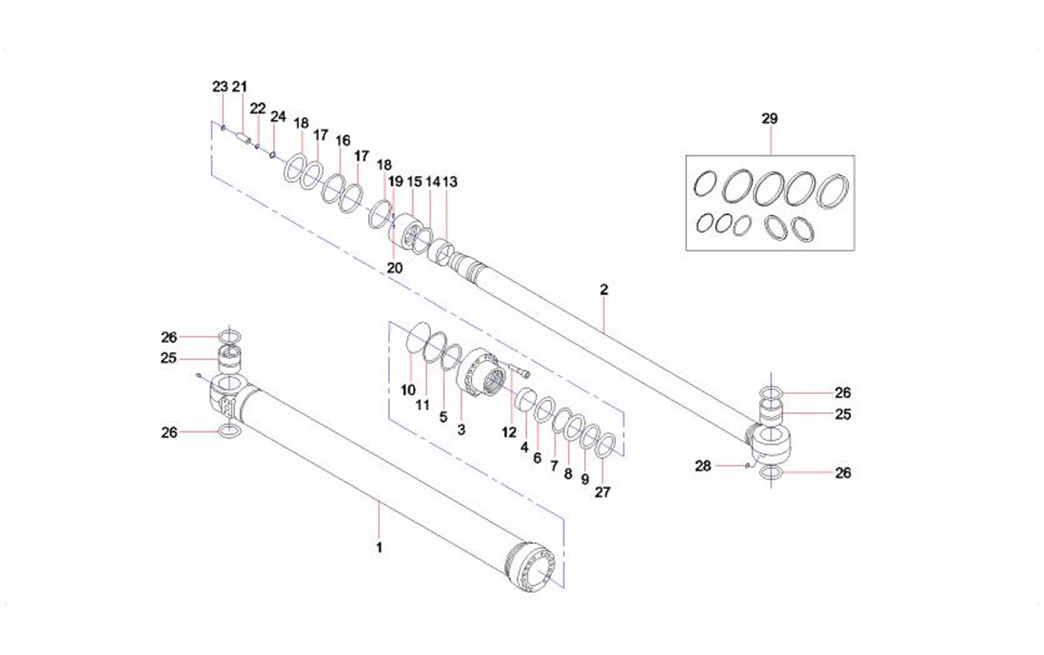

60217495

1

斗杆油缸K维修包

Arm maintenance package

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-31-1

1

60053917

1

铲斗油缸

Cylinder, bucket

4-31-2

2

21050781

8

螺钉

Screw

4-31-3

3

B230101000578

2

O形圈

O-ring 40.7×3.5JISB2401

4-31-4

4

12224100

1

钢管

Tube

4-31-5

5

12233609

2

管夹

Clamp, pipe

4-31-6

6

12224688

1

钢管

Tube

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-33-1

1

60154005

1

缸体

cylinder body

4-33-2

2

60154019

1

活塞杆

piston rod

4-33-3

3

60153997

1

端盖

end cover

4-33-4

4

60154010

1

滑动轴套

shaft sleeve

4-33-5

5

60153992

1

圈

Retaining Ring

4-33-6

6

60153979

1

缓冲圈

Bumper Sleeve

4-33-7

7

60154050

1

轴用密封圈

Seal Ring

4-33-8

8

60154023

1

开口挡圈

Retaining Ring

4-33-9

9

60154040

1

防尘圈

Dust Ring

4-33-10

10

60154034

1

O形密封圈

O-ring

4-33-11

11

60153988

1

O形圈挡圈

O-ring

4-33-12

12

21029919

14

螺栓M18×100GB5782 10.9级

Bolt

4-33-13

13

60153981

1

缓冲套

Bumper Sleeve

4-33-14

14

60154015

1

活塞

piston rod

4-33-15

15

60154045

1

孔用密封圈

Seal Ring

4-33-16

16

60154037

2

成型导向环

Guide ring

4-33-17

17

60153985

2

纳污环

RING

4-33-18

18

60154026

1

螺钉

Screw

4-33-19

19

21010039

1

钢球

Steel Ball

4-33-20

20

60154031

2

轴套

shaft sleeve

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-35-21

21

60044360

4

防尘圈

Ring, dust

4-35-22

22

60154003

1

防尘圈用挡圈

Retaining Ring

4-35-23

23

60153996

1

垫片

washer

4-35-24

24

60154029

1

螺母

Nut

4-35-25

25

A880899010003

2

直通式压注油杯

Oil cup, forced filling, straight-flow

4-35-26

26

60149563

1

铲斗油缸密封包38.5T-CD-G 恒立

Sealed package of movable bucket
