SANY SY385C SY385CDI3K EXCAVATOR parts catalog 01
INDEX
Chapter 1 SY385CD Hydraulic Excavator ………………………………………………………………………… 1-1
12961573 SY385CD Hydraulic Excavator …………………………………………………………………………………… 1-2
Chapter 2 Slewing device SY365CDI3K. 1 ………………………………………………………………………… 2-1
13444588 Slewing device SY365CDI3K. 1 …………………………………………………………………………………… 2-2
13443398 POWER SYSTEM SY365CDI3K.1.3 …………………………………………………………………………………… 2-4
60238141 engine ………………………………………………………………………………………………………………… 2-6
60311906 Air valve chamber cover assembly ………………………………………………………………………………… 2-10
60311911 Cylinder cover assembly …………………………………………………………………………………………… 2-12
60311929 Air cylinder body assembly ………………………………………………………………………………………… 2-16
60311942 Oil pan assembly …………………………………………………………………………………………………… 2-20
60311946 Camshaft and valve assembly ……………………………………………………………………………………… 2-22
60311965 Crankshaft and piston assembly …………………………………………………………………………………… 2-28
60311977 Timing gear case assembly ………………………………………………………………………………………… 2-32
60311988 Air intake assembly ………………………………………………………………………………………………… 2-36
60311161 Exhaust assembly …………………………………………………………………………………………………… 2-40
60311167 Ventilation system …………………………………………………………………………………………………… 2-42
60311176 Water pump assembly ……………………………………………………………………………………………… 2-44
60311189 Thermostat assembly ………………………………………………………………………………………………… 2-48
60311200 Engine water piping ………………………………………………………………………………………………… 2-52
60311211 Fan and belt assembly ……………………………………………………………………………………………… 2-56
60311217 Turbocharger system ………………………………………………………………………………………………… 2-58
60311226 Fuel injection system ………………………………………………………………………………………………… 2-60
60311838 Filter system ………………………………………………………………………………………………………… 2-66
60250940 Fule filter ……………………………………………………………………………………………………………… 2-68
60311840 Fuel pipe system ……………………………………………………………………………………………………… 2-70
60311845 Oil cooler system …………………………………………………………………………………………………… 2-72
B222100000560 Filter, engine oil ……………………………………………………………………………………………… 2-76
60311850 Engine Oil Pump assembly ………………………………………………………………………………………… 2-78
60311855 Engine oil piping ……………………………………………………………………………………………………… 2-80
60311862 EGR assembly ……………………………………………………………………………………………………… 2-82
60311882 Engine electrical control parts ……………………………………………………………………………………… 2-86
60311895 Radiator system ……………………………………………………………………………………………………… 2-90
60311897 Fuel tank ……………………………………………………………………………………………………………… 2-92
13443490 Exhaust system SY365CDI3K.1.3.2 ……………………………………………………………………………… 2-94
13434409 Damping and transmission system SY365CDI …………………………………………………………………… 2-96
13443476 fuel system SY365CDI3K.1.3.5 …………………………………………………………………………………… 2-98
60249071 Fuel filter ……………………………………………………………………………………………………………… 2-106
60064763 Fuel coarse filter ……………………………………………………………………………………………………… 2-108
13346847 fuel add pipe SY365CFI2KH.1.3.7 ………………………………………………………………………………… 2-110
13443469 air inlet system SY365CDI3K.1.3.4 ………………………………………………………………………………… 2-112
60265366 Air Cleaner Assembly ………………………………………………………………………………………………… 2-116
60241870 AIR CLEANER ASM ………………………………………………………………………………………………… 2-118
13441476 cooling system SY365CDI3K.1.3.3 ………………………………………………………………………………… 2-120
60266242 Radiator ……………………………………………………………………………………………………………… 2-126
13441701 Platform pipeline SY365CDI3K.1.2 ……………………………………………………………………………………… 2-128
13601695 hydraulic oil tank assembly SY365CDI3K.1 ……………………………………………………………………… 2-132
12353451 Filter element AS, oil drain ………………………………………………………………………………………… 2-134
13441698 Oil suction pipeline SY365CDI3K.1.2.2 …………………………………………………………………………… 2-136
60100129 Pump, plunger ………………………………………………………………………………………………………… 2-140
60155077 Main Pump …………………………………………………………………………………………………………… 2-142
60153895 Leading Pump ………………………………………………………………………………………………………… 2-150
60153897 Regulator ……………………………………………………………………………………………………………… 2-154
13441700 Oil drainage and return pipeline SY365CD ……………………………………………………………………… 2-162
13441699 Main hydraulic lines SY365CDI3K.1.2.3 …………………………………………………………………………… 2-170
60043410 Reducer GP …………………………………………………………………………………………………………… 2-176
60180837 Rotary motor ………………………………………………………………………………………………………… 2-178
60042755 Reduction Gear ……………………………………………………………………………………………………… 2-186
60312521 Multiple valve ………………………………………………………………………………………………………… 2-190
13346999 Assembly panels SY365CFI2KH.1.6 …………………………………………………………………………………… 2-220
13605012 Right door SY365CDI2KH.1.6.3A ………………………………………………………………………………… 2-226
13605011 Left door I SY365CDI2KH.1.6.1A ………………………………………………………………………………… 2-230
13517642 Left door II SY365CDI2KH.1.6.2 …………………………………………………………………………………… 2-234
13346457 Bottom cover plate assembly SY365CFI2KH. …………………………………………………………………… 2-236
13525810 Armrest assembly SY365CDI2KH.1.6.17 ………………………………………………………………………… 2-238
13348131 Tool Box Assy. SY365CFI2KH.1.6.21 …………………………………………………………………………… 2-240
13443055 Battery protective assembly SY365CFI2KH. ……………………………………………………………………… 2-242
13444417 Air conditioning SY365CDI3K.1.8 ………………………………………………………………………………………… 2-244
60168171 Assembly, air conditioner unit ……………………………………………………………………………………… 2-250
10473304 Electrical system, air conditioner …………………………………………………………………………………… 2-256
13439033 Counterweight assembly SY365CDI3K.1. …………………………………………………………………………… 2-258
13587578 Rotary bearing assy SY365CDI3K.1.7 …………………………………………………………………………………… 2-260
13484728 Slewing ring SSf1405/50CWH …………………………………………………………………………………… 2-262
13443999 cab SY365CDI3K.1.5 ……………………………………………………………………………………………………… 2-264
60277449 CAB …………………………………………………………………………………………………………………… 2-268
A229900008240 Wiper AS ……………………………………………………………………………………………………… 2-278
13267724 seat and control cabinet SY365CEI2KH.1.5 ……………………………………………………………………… 2-280
B229900000265 Seat, cab, mechanical suspension ………………………………………………………………………… 2-284
60204190 Armrest GP, right …………………………………………………………………………………………………… 2-290
60204189 Armrest AS, left ……………………………………………………………………………………………………… 2-292
13346289 Bottom board rack of cab SY365CFI2KH.1.5 …………………………………………………………………… 2-294
13284295 Running control mechanism SY465C5M2KS.1. ………………………………………………………………… 2-298
13441696 Pilot Pipeline SY365CDI3K.1.4 …………………………………………………………………………………………… 2-300
13441692 PPC Pipeline SY365CDI3K.1.4.1 ………………………………………………………………………………… 2-302
60283709 Pilot Valve …………………………………………………………………………………………………………… 2-308
60210245 Pilot-control Valve …………………………………………………………………………………………………… 2-314
13441694 Main valve pipeline SY365CDI3K.1.4.3 …………………………………………………………………………… 2-318
13441695 Electromagnetic valve pipeline SY365CDI3 ……………………………………………………………………… 2-324
13441693 Main pump pipeline SY365CDI3K.1.4.2 …………………………………………………………………………… 2-328
B229900000063 Filter, oil ……………………………………………………………………………………………………… 2-330
Chapter 3 travel device SY365CDI3K.2B ……………………………………………………………………… 3-1
13599719 travel device SY365CDI3K.2B ………………………………………………………………………………… 3-2
60263596 Track idler …………………………………………………………………………………………………………………… 3-8
60013106 Tensioner …………………………………………………………………………………………………………………… 3-10
12123787 Roller As, carrier …………………………………………………………………………………………………………… 3-12
11630971 Pipeline,hydraulic,travel device …………………………………………………………………………………………… 3-14
60243992 Center Swivel Joint …………………………………………………………………………………………………… 3-18
A220501000109 Reducer GP ………………………………………………………………………………………………………… 3-20
60180067 Motor …………………………………………………………………………………………………………………… 3-22
B220800000390 Reducer GP,travelling ……………………………………………………………………………………… 3-28
11296007 Track GP …………………………………………………………………………………………………………………… 3-32
13271675 Track Roller SWZ216E …………………………………………………………………………………………………… 3-34
Chapter 4 Work device SY365CDI3K.3 ……………………………………………………………………………… 4-1
13443477 Work device SY365CDI3K.3 ……………………………………………………………………………………… 4-2
13443458 Work device Tube SY365CDI3K.3.1 …………………………………………………………………………………… 4-10
13527618 Bucket cylinder assembly SY365CDI3K.3.1. ……………………………………………………………………… 4-14
60117473 Cylinder, bucket ……………………………………………………………………………………………………… 4-16
60216115 arm clinder …………………………………………………………………………………………………………… 4-20
60277012 Boom Cylinder ………………………………………………………………………………………………………… 4-22
13611495 Left boom oil cylinder pipeline SY365CDI ………………………………………………………………………… 4-24
13611481 Right boom oil cylinder pipeline SY365CD ………………………………………………………………………… 4-26
11352533 Pipeline, lubrication ………………………………………………………………………………………………………… 4-28
A810201031035 Connector ……………………………………………………………………………………………………… 4-30
13841903 Bucket Assembly (Turkey) SY385CDI3K.3.4 …………………………………………………………………………… 4-32
13841901 Bucket body (Turkey) SY385CDI3K.3.4.1 ………………………………………………………………………… 4-34
Chapter 5 Eletrical system assembly SY365CDI3K.5A ……………………………………………………… 5-1
13561983 Eletrical system assembly SY365CDI3K.5A ………………………………………………………………… 5-2
13561936 Cab Electrical Assembly SY365CDI3K.5A.1 …………………………………………………………………………… 5-4
13560453 Electrical plate Assembly SY365CDI3K.5A. ……………………………………………………………………… 5-8
13560456 Boom Electrical Assembly SY365CDI3K. …………………………………………………………………………… 5-10
13560458 Accumulator Assembly SY365CDI3K.5A.3 ……………………………………………………………………………… 5-12
13561946 Vehicle Body Electrical Assembly SY3 ……………………………………………………………………………… 5-14
13560459 Electrical Box Assembly SY365CDI3K.5A.4. ……………………………………………………………………… 5-18
Chapter 6 Coating SY365CFI2KH.6 …………………………………………………………………………………… 6-1
13347006 Coating SY365CFI2KH.6 …………………………………………………………………………………………… 6-2
Chapter 7 SY365~SY465(B)H Hydraulic Excavator Oper ………………………………………………… 7-1
13445418 SY365~SY465(B)H Hydraulic Excavator Oper ……………………………………………………………… 7-2
10442742 Tools, attached ……………………………………………………………………………………………………………… 7-6
A229900007607 Joint, universal ………………………………………………………………………………………………… 7-12
A290000000155 Toolbox, portable ……………………………………………………………………………………………… 7-14
Chapter 8 Other Fittings ……………………………………………………………………………………………………… 8-1
13680742 Working device pipeline of quartering ha ……………………………………………………………………… 8-2
13681909 Piping diagram of quartering hammer plat …………………………………………………………………… 8-6

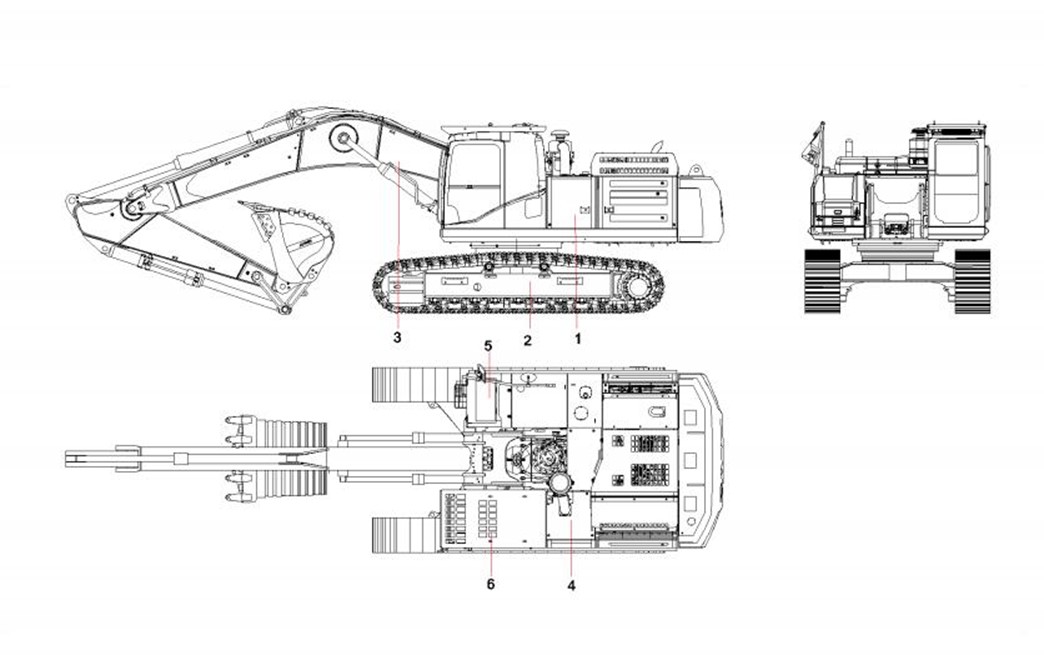

Chapter 1
SY385CD Hydraulic Excavator
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
1-3-1 |
1 |
13444588 |
1 |
Slewing device SY365CDI3K.1 |
1-3-2 |
2 |
13599719 |
1 |
travel device SY365CDI3K.2B |
1-3-3 |
3 |
13443477 |
1 |
Work device SY365CDI3K.3 |
1-3-4 |
4 |
13561983 |
1 |
Eletrical system assembly |
1-3-5 |
5 |
13347006 |
1 |
Coating SY365CFI2KH.6 |
1-3-6 |
6 |
13445418 |
1 |
SY365~SY465(B)H Hydraulic |
