XCMG LW550FN WHEEL LOADER PARTS MANUAL 04
|

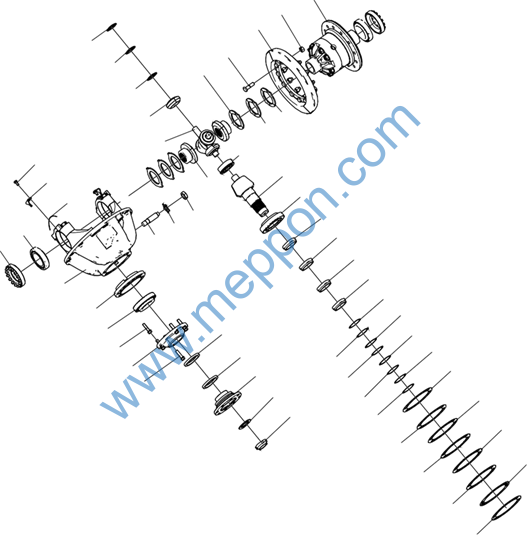

275102485 MAIN REDUCTOR ASSY |
||||||
|
12 |
13 |
24 26 23 22 16 21 15 14 20 19 1718 11 10 9 5 8 76 |
29 30 28
31 33 32 34 35 36 37 38 39 40 41 42 4 43 3 55 44 2 54 1 53 52 51 50 49 48 |
|||
|
45 |
||||||
|
46 |
||||||
|
47 |
||||||
|
275102485 MAIN REDUCTOR ASSY 275102460 FRONT AXLE ASSY |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
CONTAINS 20、21、 22、23、24、25、 275102531 1 FIDDERENTIAL ASSY REPAIR KIT 26、30、31、32 PIECES |
|

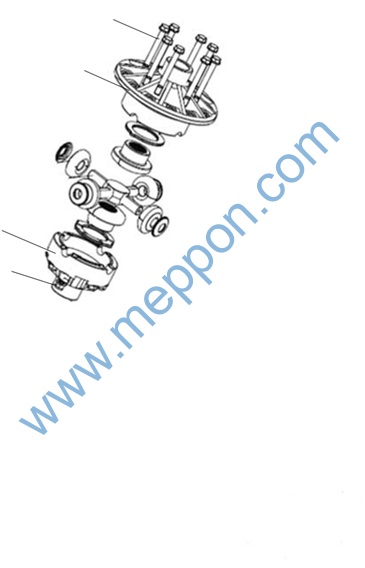

275101798 DIFFERENTIAL CASE |
|
4
2 1 |
|
275101798 DIFFERENTIAL CASE 275101687 MAIN REDUCTOR ASSY |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 275100158 8 NUT |
|
2 275100161 1 DIFFERENTIAL LEFT HOUSING |
|
3 275101684 1 DIFFERENTIAL RIGHT HOUSING |
|
4 275100160 8 SLEEVE,SCREW,&NUT SUB-ASSY METRIC |
|
275102059 1 DIFERENTIAL HOUSING REPAIR KIT CONTAINS 2、3 PIECES |
|
251810204 REAR DRIVE SHAFT ASSY |
|
2 3 |
|
251810204 REAR DRIVE SHAFT ASSY 251811460 DRIVE AXLE SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
2 805300018 8 WASHER 12 GB/T93-1987 |
|
3 805048484 8 SLEEVE,SCREW,&NUT SUB-ASSY METRIC M12×1.25×55 GB/T5785-2000 |
|

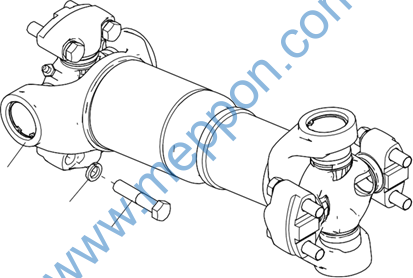

800363722 REAR DRIVE SHAFT ASSEMBLY |
|
|
|
800363722 REAR DRIVE SHAFT ASSEMBLY 251810204 REAR DRIVE SHAFT ASSY |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860166013 2 UNIVERSAL JOINT ASSEMBLY |
|

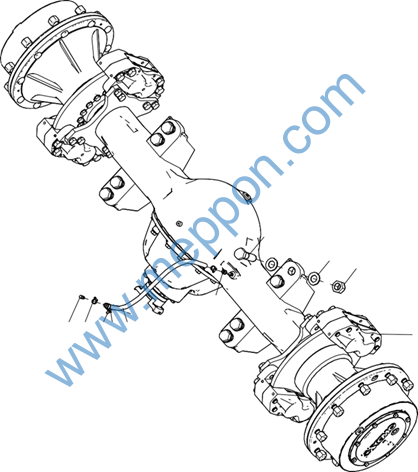

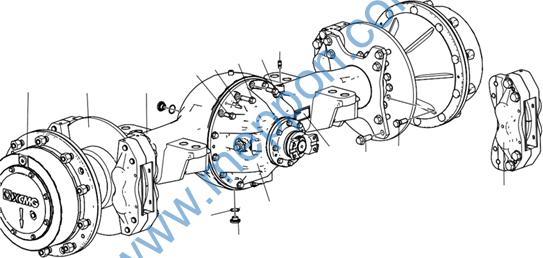

251811482 REAR AXLE ASSY 251811460 DRIVE AXLE SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
2 805239073 8 NUT M30×2 GB/T889.2-2000 |
|
3 805338293 16 WASHER 30 (DACROMET) GB/T97.1-2002 |
|
4 805052301 8 SLEEVE,SCREW,&NUT SUB-ASSY METRIC M30×2×110 GB/T5785-2000 |
|
5 803163983 1 AIR PLUG QC/T410-1999 |
|
6 801902705 2 HOSE CLAMP C13-19 QC/T619-1999 |
|
7 805004755 1 BOLT M8×16 (DACROMET) GB/T16674.1-2004 |
|
8 803199326 1 FERRULE Φ18 TJBC |
|
9 803163998 1 HOSE B10×1050 |
|
10 252604999 1 SPLICEII |
