4

3

2

1

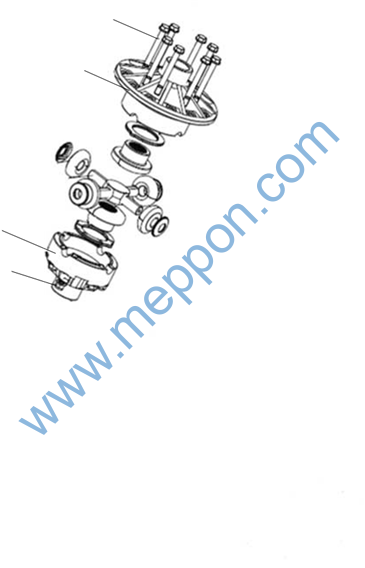

275101798 DIFFERENTIAL CASE

275101687 MAIN REDUCTOR ASSY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 275100158    8    NUT

2 275100161    1    DIFFERENTIAL LEFT HOUSING

3 275101684    1    DIFFERENTIAL RIGHT HOUSING

4 275100160    8    SLEEVE,SCREW,&NUT SUB-ASSY METRIC

275102059    1    DIFERENTIAL HOUSING REPAIR KIT    CONTAINS 2、3 PIECES

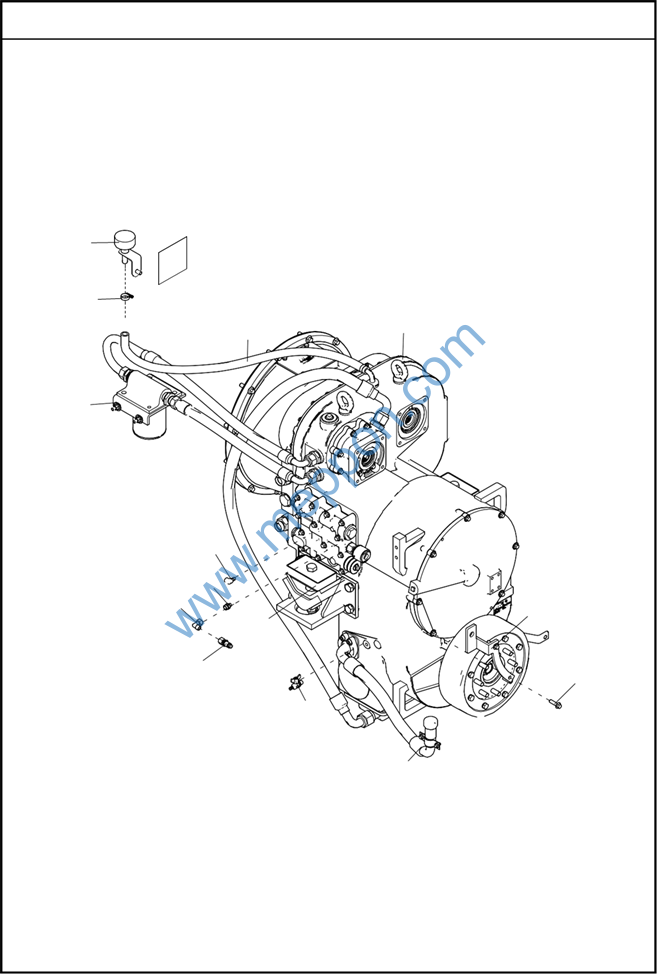

251808598 TRANSMISSION AND TORQUE CONVERTER SYSTEM

251811519 WHEEL LOADER

No.

PART NUMBER

QTY

NAME

NOTE

PAGE

1

252115507

1

ENGINE-GEARBOX BUTT ASSY

60

2

803163994

1

HOSEB16×1200

3

251806247

1

VENTILATOR ASSY

92

4

801968904

2

HOOP B14-27

QC/T619-1999

5

251808294

1

FILTER

94

6

251806614

1

TRANSITION JOINT

7

803166753

1

SPLICE

8

803103351

1

SPLICE

9

803163606

1

SPLICE

10

251804547

1

BRACKET

98

11

800788034

1

R1/4 BALL VALVE

12

251809295

1

TRANSMISSION OIL FILLER PIPE

100

13

251800747

1

BRACKET

14

805048007

2

BOLT M10×35

GB/T16674.1-2004

2    6

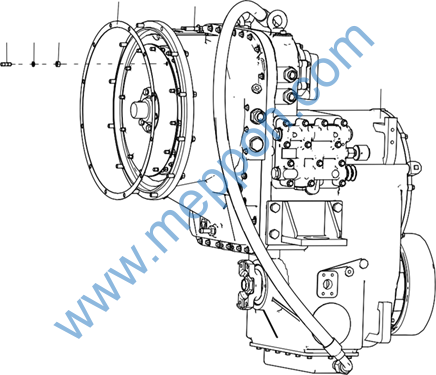

252115507 ENGINE-GEARBOX BUTT ASSY

251808598 TRANSMISSION AND TORQUE CONVERTER SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 272200753    1    ZL50 TRANSMISSION ASSEMBLY    62

2 250200162    1    GASKET

3 805002236    12 SCREW AM10×1×20    GB/T899-1988

4 805300014    12 SPRING WASHER 10    GB/T93-1987

5 805200090    12 NUT M10×1    GB/T6171-2000

6 805048019    12 BOLT M12×55    GB/T16674.1-2004

8

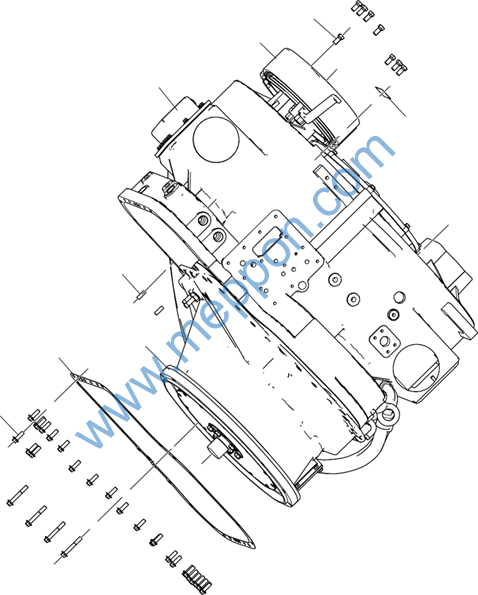

272200753 ZL50 TRANSMISSION ASSEMBLY

252115507 ENGINE-GEARBOX BUTT ASSY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 805048012    5    SLEEVE,SCREW,&NUT SUB-ASSY METRIC M10×70    GB/T16674.1-2004

2 805048006    26 BOLT M10×30    GB/T16674.1-2004

3 250200229    1    ID SEAL

4 272200758    1    HYDRAULIC TORQUE CONVERTER    64

5 805601564    2    PIN 10U8×30    GB/T119.1-2000

6 272200165    1    TRANSMISSION ASSEMBLY    70

7 250202028    1    CURVED HANDLE BRAKE    90

8 805002139    8    SLEEVE,SCREW,&NUT SUB-ASSY METRIC M12×1.25×25    GB/T5786-2000

9 272200766    1    NAMEPLATE

272200758 HYDRAULIC TORQUE CONVERTER

29

27 28

26

24 25

23 43

22

21

20    30

19    31

18

17

15

14    16

13

12    32

11

10    33

89    34

7    35

6    36

5    38 37

4    39

40

3    41

2    42

1

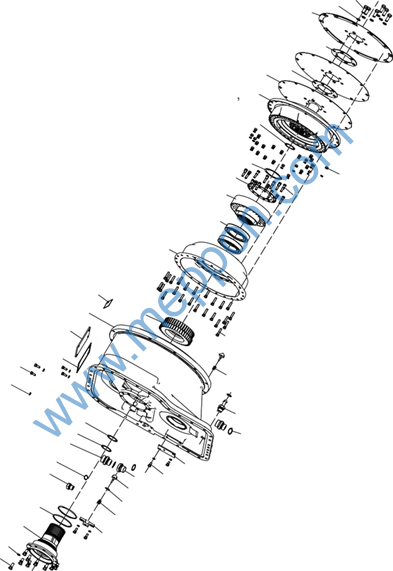

272200758 HYDRAULIC TORQUE CONVERTER

272200753 ZL50 TRANSMISSION ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 805011330    9    BOLT M10×25(DACROMET)    GB/T5783-2000

2 805338260    9    WASHER 10    GB/T93-1987

3 272200304    1    SUPPORT-STATOR

4 272200303    2    LAP SEAL RING

5 272200818    1    TYPE FEMAL

6 803400948    2    EDSEAL RING    DIN3869-22-NBR

7 272200820    2    END STRAIGHT CONNECTOR

8 272200343    1    ADJUSTING GASKET

9 272200344    1    ADJUSTING GASKET

10 805338259    46 SPRING WASHER 8    GB/T93-1987

11 805046508    6    BOLT M8×20 (DACROMET)    GB/T5783-2000

12 272200315    1    PAPER WASHER

13 272200314    1    COVER

14 272200290    1    HOUSING BODY

15 272200757    1    NAMEPLATE

16 272200691    1    TRANSFER GEAR

17 272200759    1    PUMP IMPELLER

18 800514854    2    BEARING 6017/C3    GB/T276-1994

19 272200756    1    IDLER PULLEY

20 272200300    1    BASE PLATE

21 805400092    1    SEPARATE BUSH 85    GB/T894.1-1986

22 272200296    1    ADJUSTING GASKET

23 860142945    1    TURBINE ASSY    68

24 272200293    2    PLATE

25 272200341    1    ROUND PAD

26 272200291    1    ROUND PAD

27 272200294    1    PLATE

28 805338261    6    WASHER 12    GB/T93-1987

272200758 HYDRAULIC TORQUE CONVERTER

29

27 28

26

24 25

23 43

22

21

20    30

19    31

18

17

15

14    16

13

12    32

11

10    33

89    34

7    35

6    36

5    38 37

4    39

40

3    41

2    42

1
