272200758 HYDRAULIC TORQUE CONVERTER

272200753 ZL50 TRANSMISSION ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

29 805006412    6    BOLT M12×30    GB/T5783-2000

30 805046477    24 NUT M8    GB/T6170-2000

31 805004593    14 SLEEVE,SCREW,&NUT SUB-ASSY METRIC M8×35    GB/T5782-2000

32 805046512    24 BOLT M8×35    GB/T5783-2000

33 272200313    1    SPRING

34 272200817    1    LEAKING OIL TUBE CONNECTOR

35 272200816    3    EDSEAL RING

36 272200312    1    VALVE CAP

37 805046893    2    BOLT M8×15 (DACROMET)    GB/T5783-2000

38 272200814    1    END CAP

39 272200309    2    VALVE ROD

40 272200345    1    SPACER

41 272200311    1    SPRING

42 272200307    1    VALVE CAP

860142945 TURBINE ASSY

1

3

2

860142945 TURBINE ASSY

272200758 HYDRAULIC TORQUE CONVERTER

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860114857    1    COVER

2 800514853    1    BEARING 6013/C3    GB/T276-1994

3 800514852    1    BEARING 6210/C3    GB/T276-1994

4 272200712    1    SEPARATE BUSH52

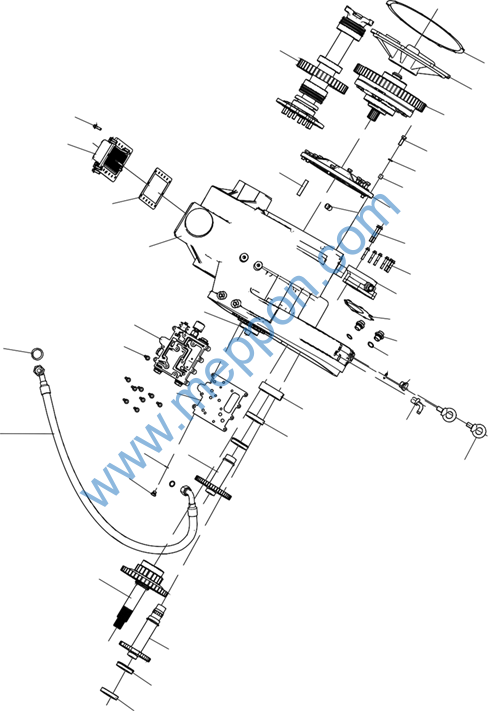

272200165 TRANSMISSION ASSEMBLY

16

17

18

14    19

13

15    20

21

12    24    22

23

11    25

26

9    10    27

28

3    8    29

3031

7

34

2    5    6    35    33

4    32

1

36

37

38

272200165 TRANSMISSION ASSEMBLY

272200753 ZL50 TRANSMISSION ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 250200770    1    THE THIRD AXLE ASSEMBLY    74

2 252100707    1    HOSE

3 801100129    2    ORING 23×3.55    GB/T3452.1-2005

4 272200815    1    OIL PORT PLUG

5 803400943    1    EDSEAL RING    DIN3869-16-NBR

6 272200749    1    STEERING PUMP SHAFT GEAR

7 250200292    1    ID SEAL

8 805048012    13 SLEEVE,SCREW,&NUT SUB-ASSY METRIC M10×70    GB/T16674.1-2004

9 250200147    1    TRANSMISSION CONTROL VALVE ASSY

10 272200615    1    FOUTH AXLE ASSEMBLY    76

11 272200153    1    BOX

12 250200538    1    SEALING GASKET

13 250202029    1    OIL SUMP ASSEMBLY    82

14 805048006    22 BOLT M10×30    GB/T16674.1-2004

15 250200358    1    FIXING PLATE

16 272200351    1    THE FIFTH AXLE ASSEMBLY    84

17 250200442    1    ID SEAL

18 250200441    1    SHAFT

19 272200727    1    FOUTH AXLE ASSEMBLY    88

20 805006415    12 SLEEVE,SCREW,&NUT SUB-ASSY METRIC M14×40    GB/T5783-2000

21 805338262    12 SPRING WASHER 14    GB/T93-1987

22 250200357    1    CYLINDRICAL PLUG

23 272200722    1    MIDDLE COVER

24 250200359    1    CYLINDRICAL PIN

25 805006193    2    BOLT M10×80(DACROMET)    GB/T16674.1-2004

26 805004715    6    BOLT M10×55    GB/T16674.1-2004

27 803004322    1    PUMP ASSEMBLY

28 250200290    1    ID SEAL

272200165 TRANSMISSION ASSEMBLY

16

17

18

14    19

13

15    20

21

12    24    22

23

11    25

26

9    10    27

28

3    8    29

3031

7

34

2    5    6    35    33

4    32

1

36

37

38

272200165 TRANSMISSION ASSEMBLY

272200753 ZL50 TRANSMISSION ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

29 272200819    2    END STRAIGHT CONNECTOR

30 272200816    3    EDSEAL RING

31 272200814    1    END CAP

32 805100447    2    SCREW M20    GB/T825-1988

33 272200546    1    VENTILATION PIPE CONNECTOR

34 272200381    1    SLEEVE

35 800511443    1    BEARING 6211    GB/T276-1994

36 272200747    1    WORKING PUMP SHAFT GEAR

37 800511304    2    BEARING 6210 N    GB/T276-1994

38 800500249    1    BEARING 6012    GB/T276-1994

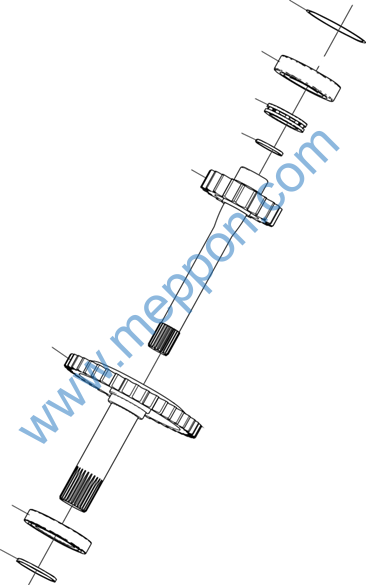

250200770 THE THIRD AXLE ASSEMBLY

8

7

6

5

4

3

2

1

250200770 THE THIRD AXLE ASSEMBLY

272200165 TRANSMISSION ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 250200525    1    ROTATING SEAL

2 800511307    1    BEARING 6016    GB/T276-1994

3 250200436    1    INPUT SECONDARY GEAR

4 250200435    1    INPUT PRIMARY GEAR

5 250200526    1    ROTATING SEAL

6 800511327    1    BEARING 51111    GB/T301-1995

7 800511252    1    BEARING 6311    GB/T276-1994

8 250200771    1    ADJUSTING GASKET

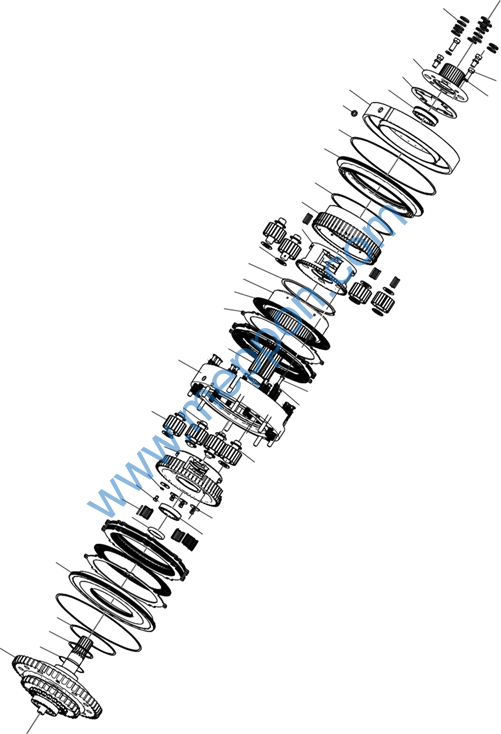

272200615 FOUTH AXLE ASSEMBLY

30

29

28

26    27    31

25    32

24

23

22

21

20

19

18

17

16

15

13    14

11 12    33

34

10

89    35

7

6    36

5    37

4

3

1    2

272200615 FOUTH AXLE ASSEMBLY

272200165 TRANSMISSION ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 800302360    1    OVERRUN CLUTCH ASSEMBLY

2 250200750    1    ADJUSTING GASKET    80

3 805400009    1    SEPARATE BUSH 90    GB/T893.1-1986

4 250200481    1    INTERNAL SEAL RING

5 272200578    1    REVERSE PISTON

6 250200345    1    SEPARATE BUSH

7 800511260    176 ROLL NEDDLE 4×34.8 G2 -3-5    GB/T309-2000

8 805046502    4    BOLT M8×12(DACROMET)    GB/T5783-2000

9 805338259    4    SPRING WASHER 8    GB/T93-1987

10 272200125    1    REVERSE PLANETARY CARRIER

11 250200646    8    GEAR PLANETARY

12 272200130    4    PLANETARY GEAR SHAFT FOR 1ST GEAR

13 272200790    1    FRICTION PLATE ISOLATION CARRIER ASSEMBLY_

14 272200133    1    GEAR-SUN

15 250200531    10 DRIVEN PLATE FOR 1ST/REVERSE GEARS

16 250200527    8    DRIVE PLATE FOR 1ST/REVERSE GEARS

17 272200134    1    REVERSE INNER GEAR RING

18 250200353    1    SEPARATE BUSH

19 272200129    16 SPACER

20 272200553    1    PLANETARY CARRIER FOR 1ST GEAR

21 272200128    1    INNER GEAR RING

22 250200484    1    SEAL RING

23 272200126    1    PISTON FOR 1ST GEAR

24 250200480    2    EXTERNAL SEAL RINGS

25 250200528    1    RECTANGULAR SEALING RING

26 272200127    1    CYLINDER FOR 1ST GEAR

27 800555089    1    BEARING 6210 NR    GB/T276-1994

28 272200131    1    LOCK DISC_
