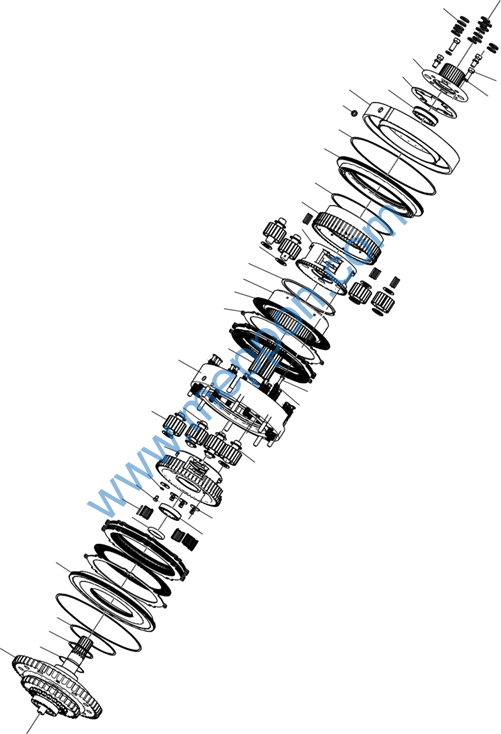

272200615 FOUTH AXLE ASSEMBLY

30

29

28

26    27    31

25    32

24

23

22

21

20

19

18

17

16

15

13    14

11 12    33

34

10

89    35

7

6    36

5    37

4

3

1    2

272200615 FOUTH AXLE ASSEMBLY

272200165 TRANSMISSION ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

29 272200789    1    CONNECTING DISC FOR DIRECT GEAR_

30 250200360    16 SPACER SLEEVE

31 805049429    4    SLEEVE,SCREW,&NUT SUB-ASSY METRIC M14×1.5×35    GB/T5786-2000

32 805338900    4    WASHER 14    GB/T93-1987

33 250200356    15 SPRING HINGE

34 250200485    15 SPRING

35 272200137    4    REVERSE PLANETARY SHAFT

36 250200355    4    LOCK WASHER

37 800511274    1    BEARING 6010 E    GB/T276-1994

INCLUD-

IN-

272200604    1    REVERSE PLANET CARRIER REPAIR KIT

G7,8,9,10,11,19,30,35,-

36,37

INCLUD-

IN-

272200742    1    PLANETARY CARRIER FOR 1ST GEAR

G7,11,12,17,18,19,20,-

27,28,29,30,31,32

250200750 ADJUSTING GASKET

1

2

3

250200750 ADJUSTING GASKET

272200615 FOUTH AXLE ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 250200117    1    ZL40A.30.5-33X1 ADJUSTING GASKET0.5

2 250200118    1    ZL40A.30.5-33X2 ADJUSTING GASKET0.8

3 250200119    1    ZL40A.30.5-33X3 ADJUSTING GASKET0.3

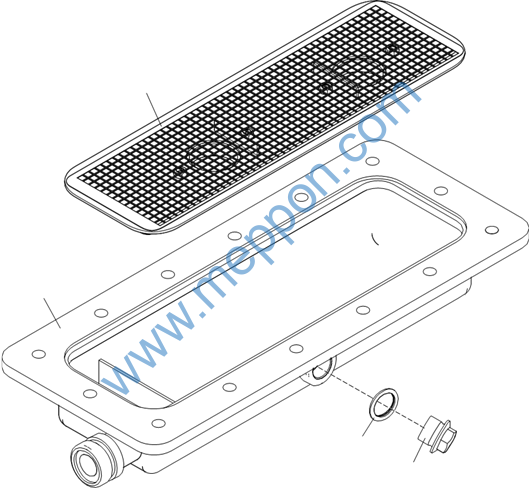

250202029 OIL SUMP ASSEMBLY

4

3

2

1

250202029 OIL SUMP ASSEMBLY

272200165 TRANSMISSION ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803100382    1    SCREW PLUG M22×1.5    JB/T1000-1977

2 805300032    1    WASHER 22    JB/T982-1977

3 250202030    1    OIL SUMP BODY

4 250202031    1    FILTER SCREEN BRACKET ASSEMBLY

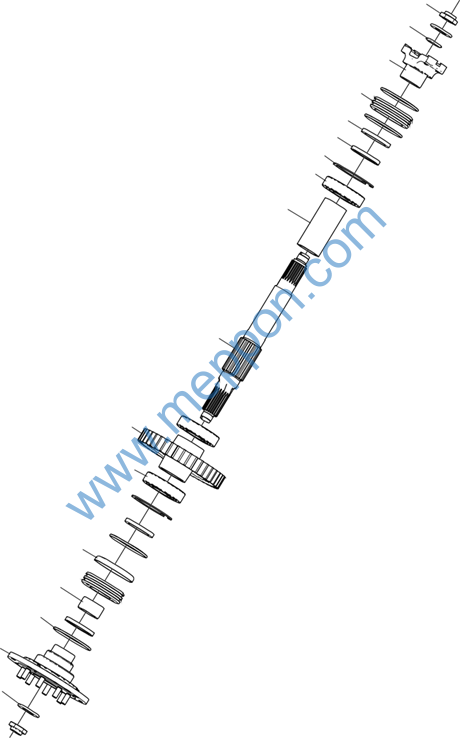

272200351 THE FIFTH AXLE ASSEMBLY

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

272200351 THE FIFTH AXLE ASSEMBLY

272200165 TRANSMISSION ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 272200176    2    WASHER

2 272200171    1    FLANGE    86

3 803164062    4    ORING130×5.7    FB1235-1976

4 250200689    1    AXIS COVER

5 272200140    1    DUST COVER

6 800500196    2    BEARING 6312    GB/T276-1994

7 250200430    1    OUTPUT SHAFT GEAR

8 272200354    1    OUTPUT SHAFT

9 272200353    1    SEPARATE BUSH

10 800511302    1    BEARING 6410    GB/T276-1994

11 805400024    2    SEPARATE BUSH 130    GB/T893.1-1986

12 801101745    2    OIL SEAL

13 801101722    2    LIP-TYPE PACKING SEAL B70×95×10    GB/T9877-2008

14 272200138    2    SEAL SEAT

15 272200179    1    FLANGE

16 250200687    1    SEAL RING

17 272200177    2    NUT

272200171 FLANGE

4

3

2    1

272200171 FLANGE

272200351 THE FIFTH AXLE ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252101240    1    FLANGE

2 252101238    8    CONNECTING BOLT

3 272200169    1    BAFFLE-OIL

4 805046481    4    BOLT M6×16(DACROMET)    GB/T5783-2000

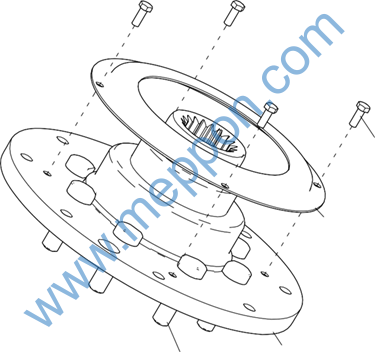

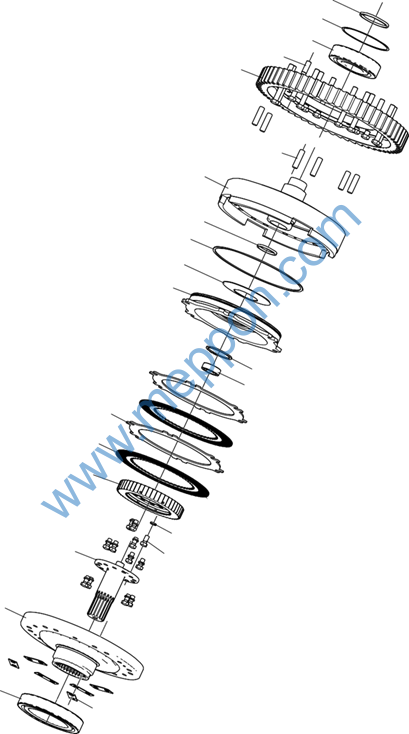

272200727 FOUTH AXLE ASSEMBLY

17

16

15

13    14

12

11

10

9

8

7

18

19

6

5

4

3    20

21

2

1

22
