XCMG LW550FN WHEEL LOADER PARTS MANUAL 09
|
272200727 FOUTH AXLE ASSEMBLY 272200165 TRANSMISSION ASSEMBLY |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 800511306 1 BEARING 6022 GB/T276-1994 |
|
2 272200726 1 COMPRESSED DISC FOR DIRECT GEAR |
|
3 272200144 1 DIRECT GEAR SHAFT |
|
4 272200145 1 RING GEAR FOR 2ND GEAR |
|
5 250200521 2 DRIVE PLATE FOR 2ND GEAR |
|
6 250200522 2 DRIVEN PLATE FOR 2ND GEAR |
|
7 272200567 1 DIRECT PISTON |
|
8 250200349 1 DISC SPRING |
|
9 272200832 1 II GEAR SEALING RING |
|
10 250200526 1 ROTATING SEAL |
|
11 272200568 1 CYLINDER FOR DIRECT GEAR |
|
12 272200146 6 GUIDE PIN |
|
13 272200149 1 OUTPUT GEAR FOR DIRECT GEAR |
|
14 805050996 12 SLEEVE,SCREW,&NUT SUB-ASSY METRIC M12×1.25×100 GB/T5785-2000 |
|
15 800500196 1 BEARING 6312 GB/T276-1994 |
|
16 250200813 1 ADJUSTING GASKET |
|
17 250200525 1 ROTATING SEAL |
|
18 805400076 1 SEPARATE BUSH 65 GB/T894.1-1986 |
|
19 800514015 1 BEARING 6204 GB/T276-1994 |
|
20 805338378 12 WASHER 10 GB/T93-1987 |
|
21 805046472 12 BOLT M10×20(DACROMET) GB/T5783-2000 |
|
22 250200361 6 LOCK WASHER |
|
272200560 1 FOUTH AXLE ASSEMBLY NOT INCLUDING10,16 |
|

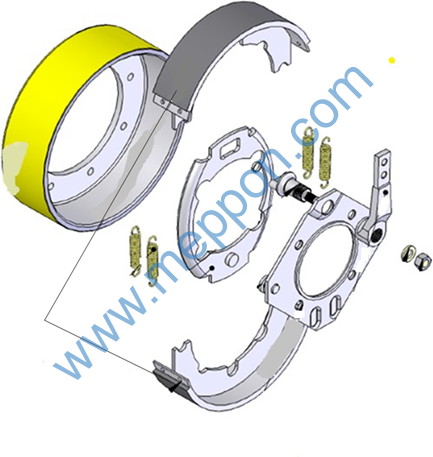

250202028 CURVED HANDLE BRAKE |
|
|
|
250202028 CURVED HANDLE BRAKE 272200753 ZL50 TRANSMISSION ASSEMBLY |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860114987 1 BRAKING PLATE |
|
251806247 VENTILATOR ASSY 251808598 TRANSMISSION AND TORQUE CONVERTER SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 251806245 1 VENTILATION CONNECTING PIPE |
|
2 251702785 1 RESPIRATOR ASSEMBLY |
|
3 805048016 1 BOLT M12×20 (DACROMET) GB/T16674.1-2004 |
|
4 253805542 1 BREATHER LEBEL |
|

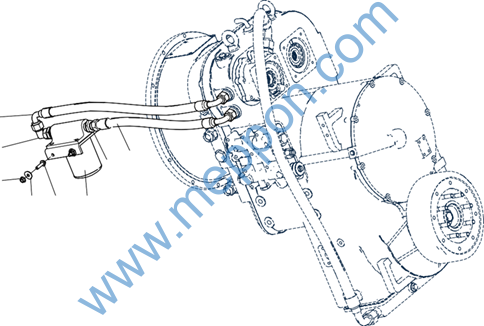

251808294 FILTER 251808598 TRANSMISSION AND TORQUE CONVERTER SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 813407341 1 HOSE ASSEMBLY |
|
2 803173684 1 SPLICE |
|
3 805238533 2 NUT 10 GB/T6177.1-2000 |
|
4 805338267 2 WASHER 10 GB/T96.1-2002 |
|
5 805048008 2 BOLT M10×40 GB/T16674.1-2004 |
|
7 803164756 2 SPLICE |
|
8 251808023 1 HOSE ASSEMBLY |
|

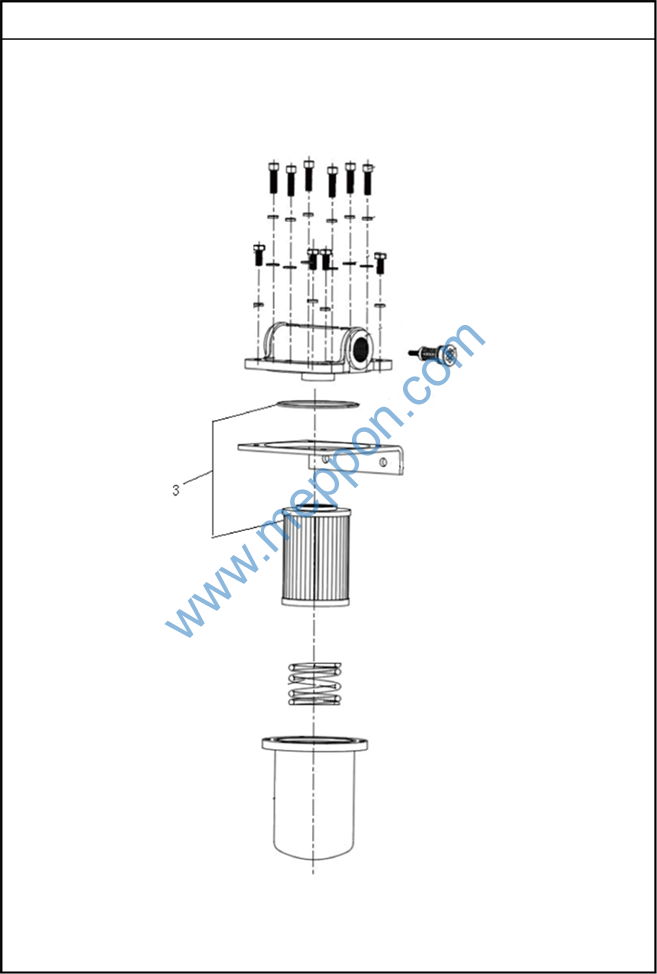

803440533 FILTER 251808294 FILTER |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860164488 1 ELECTRICAL BOX FILTER ELEMENT |
|
2
3 5 6 7 4 |
|

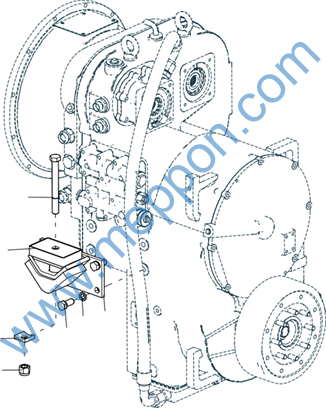

251804547 BRACKET 251808598 TRANSMISSION AND TORQUE CONVERTER SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 805046679 2 SLEEVE,SCREW,&NUT SUB-ASSY METRIC M20×180 GB/T5782-2000 |
|
2 251800858 2 SHOCK ABSORBERS |
|
3 250200228 2 WASHER |
|
4 805201518 2 NUT M20 GB/T6182-2010 |
|
5 805046468 8 SLEEVE,SCREW,&NUT SUB-ASSY METRIC M18×40 GB/T5783-2000 |
|
6 805300039 8 WASHER 18 GB/T93-1987 |
|
7 251800862 2 TRANSMISSION SUPPORT |
