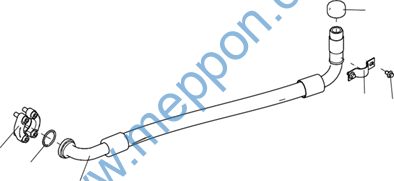

251809295 TRANSMISSION OIL FILLER PIPE

251808598 TRANSMISSION AND TORQUE CONVERTER SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 251811048    1    TRANSMISSION OIL FILLER PIPE

2 803401130    1    ORING37.69×3.53    222N552-90

3 803164828    1    FLANGE

4 803453561    1    NUT SEAL CAP M36×2

5 253402545    1    FIXING CLAMP

6 805047997    2    BOLT M8×12(DACROMET)    GB/T16674.1-2004

6    5    4

251810582 UNDERCARRIAGE SYSTEM

251811519 WHEEL LOADER

No. PART NUMBER QTY NAME    NOTE    PAGE

1 251810591    1    LEFT UNDERCARRIAGE    104

2 251808182    1    TRANSMISSION LEFT SUPPORT

3 805338273    12 SPRING WASHER 16    GB/T96.1-2002

4 805048033    12 SLEEVE,SCREW,&NUT SUB-ASSY METRIC M16×35    GB/T16674.1-2004

5 251811285    1    RIGHT BRACKET

6 251811047    1    RIGHT UNDERCARRIAGE    106

7 253801223    1    RIGHT FENDER

8 253801222    1    LETF FENDER

9 805004764    10 BOLT M12×25 (DACROMET)    GB/T16674.1-2004

5    4

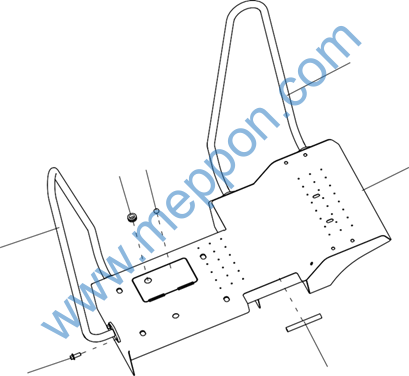

251810591 LEFT UNDERCARRIAGE

251810582 UNDERCARRIAGE SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 251810579    1    LEFT UNDERCARRIAGE WELDMENT

2 251810399    1    LEFT BACK HANDRAIL

3 805004699    4    BOLT M12×30    GB/T16674.1-2004

4 805004755    1    BOLT M8×16 (DACROMET)    GB/T16674.1-2004

5 250400188    1    RUBBER SLEEVE

6 251810389    1    LEFT-FRONT HANDRAIL

2

251811047 RIGHT UNDERCARRIAGE

251810582 UNDERCARRIAGE SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 251811053    1    RIGHT UNDERCARRIAGE WELDMENT

2 251811050    1    RIGHT REAR GUARDRAIL

3 251806141    1    MAGNET

4 250400188    1    RUBBER SLEEVE

5 251810416    1    RIGHT FRONT RAIL

6 805004699    8    BOLT M12×30    GB/T16674.1-2004

7 252910949    1    35MOULDING0.28M

3

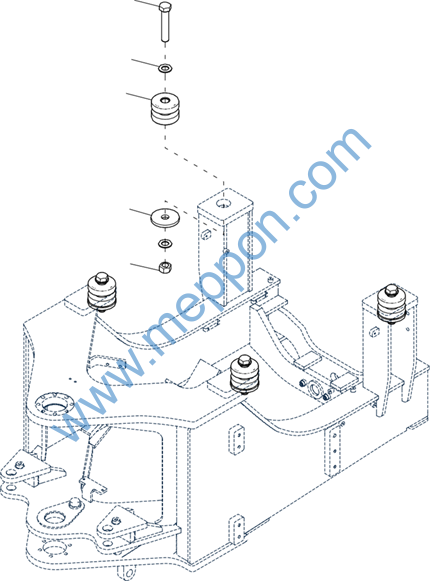

251810666 REAR FRAME SYSTEM

251811519 WHEEL LOADER

No. PART NUMBER QTY NAME    NOTE    PAGE

1 251810665    1    BODY

2 251808642    1    CAB INSTALLATION ASSY    110

3 252910960    1    FIXED STEERING PIN ASSY    112

4 251808339    1    BAFFLE ASSEMBLY    114

5 251808337    1    FIXED ROD ASSEMBLY    116

6 252910958    1    FIXED SUBFRAME ASSY    118

7 251810797    1    BALLAST ASSY    120

8 803545700    4    RUBBER JACKET

9 252910963    1    ENGINE HOOD FIXING ASSY    124

10 251808336    1    SUBFRAME GREASE PIPE ASSY    126
