XCMG LW550FN WHEEL LOADER PARTS MANUAL 31
|
251808897 HANDBRAKE CONTROLLER ASSY 251811484 BRAKING SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 251808894 1 HANDLE BRAKE GOVERNOR |
|
2 805004763 2 BOLT M10×25(DACROMET) GB/T16674.1-2004 |
|
3 251809618 1 SOFT SHAFT BRACKET 500FV.9.5.1 |
|
4 805048007 2 BOLT M10×35 GB/T16674.1-2004 |
|
251810671 BRAKE CONTROLLER 251811484 BRAKING SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 800988105 1 AIR BRAKE VALVE |
|
2 805004760 4 BOLT M8×30(DACROMET) GB/T16674.1-2004 |
|
3 252904201 1 TRANSITION JOINT |
|
4 805301414 3 WASHER 22 Q/SC1294-2000 |
|
5 803104023 2 SPLICE |
|
6 803105415 1 SPLICE |
|

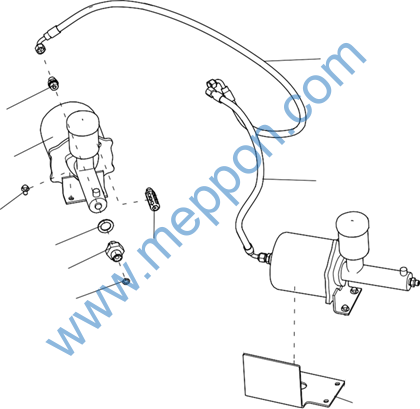

251808285 BOOSTER PUMP ASSY 251811484 BRAKING SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 803131845 2 ORING 6×1.8 GB/T3452.1-2005 |
|
2 252900348 2 SPLICE |
|
3 805301410 2 WASHER 14 Q/SC1294-2000 |
|
4 805048005 4 BOLT M10×16(DACROMET) GB/T16674.1-2004 |
|
5 800989537 2 ENERGIZING CYLINDER |
|
6 803104023 2 SPLICE |
|
7 804403407 2 RESPIRATOR ASSEMBLY |
|
8 251808365 1 HOSE ASSEMBLY |
|
9 252114730 1 HOSE ASSEMBLY |
|
10 251811446 1 BOOSTER PUMP GUARD |
|

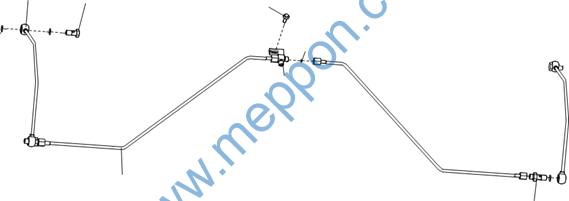

253805629 FRONT AXLE BRAKE STEEL PIPE 251811484 BRAKING SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 269900184 2 BOLT |
|
2 253900869 2 BRAKE STEEL PIPE |
|
3 803198914 8 ORING 14×2.65 GB/T3452.1-2005 |
|
4 253805628 2 FRONT AXLE BRAKE COOLING PIPELINE |
|
5 805004717 1 BOLT M8×25 GB/T16674.1-2004 |
|
6 252900347 1 T-JOINT |
|
7 803164132 5 ORING 6×1.8 GB/T3452.1-1992 |
|
8 253900865 2 SPLICE |
|
251808936 ELECTRIC SYSTEM 251811519 WHEEL LOADER |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|

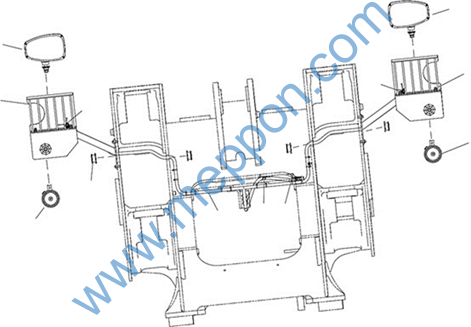

251807977 FRONT FRAME ELECTRIC SYSTEM 251808936 ELECTRIC SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 803688413 1 CONE ELECTRIC TWEETER HORN |
|
4 803688412 1 CONE ELECTRIC BASS HORN |
|
7 803744087 2 DECHI SMALL BRACKET |
|
8 252110953 4 RUBBER JACKET |
|
9 251807974 1 FRONT FRAME HARNESS |
|
10 803199325 1 FERRULE Φ16 TJBC |
|
11 803683146 1 DELPHI LOCATING BRACKET |
