XCMG LW550FN WHEEL LOADER PARTS MANUAL 32
|

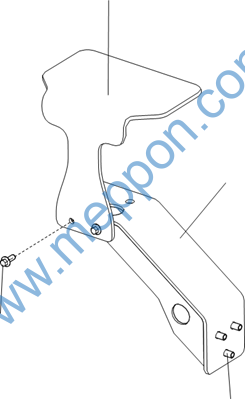

251710041 LEFT LAMP HOLDER ASSEMBLY |
|
2
3
4 |
|
251710041 LEFT LAMP HOLDER ASSEMBLY 251807977 FRONT FRAME ELECTRIC SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 251710052 1 CAUTION LAMP COVER |
|
2 251710034 1 LEFT LAMP HOLDER WELDING PART |
|
3 805004756 2 BOLT M8×20 (DACROMET) GB/T16674.1-2004 |
|
4 805004770 3 BOLT M10×20(DACROMET) GB/T16674.1-2004 |
|
803593874 LEFT HEADLAMP 251807977 FRONT FRAME ELECTRIC SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860134404 1 QSDJ066HEADLAMP BULB |
|

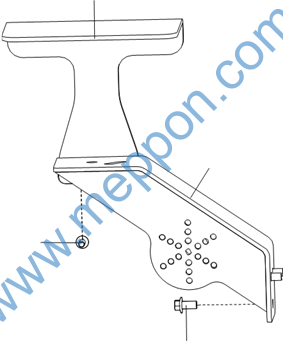

251710039 RIGHT LAMP HOLDER ASSEMBLY |
|
4
2
3 |
|
251710039 RIGHT LAMP HOLDER ASSEMBLY 251807977 FRONT FRAME ELECTRIC SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 251710052 1 CAUTION LAMP COVER |
|
2 805046723 2 BOLT M8×20 (DACROMET) GB/T16674.1-2004 |
|
3 805004770 3 BOLT M10×20(DACROMET) GB/T16674.1-2004 |
|
4 251710038 1 RIGHT LAMP BRACKET |
|
803593875 RIGHT HEADLAMP |
|
|
|
803593875 RIGHT HEADLAMP 251807977 FRONT FRAME ELECTRIC SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860134404 1 QSDJ066HEADLAMP BULB |
|

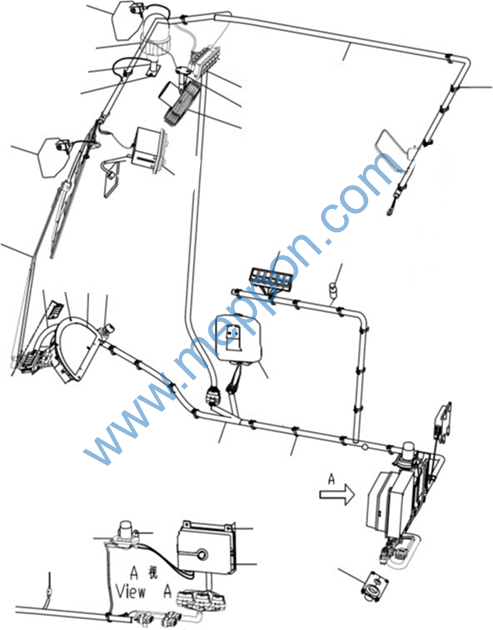

251808934 CAB ELECTRICAL SYSTEM |
|
9
1 13 2 12 25 11 9 10
4 15 3 6 7 5 8
17
16 14
19 20 20 22 21 23 |
|
251808934 CAB ELECTRICAL SYSTEM 251808936 ELECTRIC SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 803596281 1 ROTATING ALARM LAMP |
|
2 803751329 1 WARNING LAMP BRACKET |
|
3 803587848 1 POWER SOCKET |
|
5 803589289 1 COMBINATIONAL INSTRUMENT |
|
6 803682373 1 COMBINATION INSTRUMENT HARNESS |
|
7 805101828 6 SCREW M5×14 GB/T819.1-2000 |
|
8 803608667 1 KEY SWITCH |
|
10 803544526 1 FAN |
|
11 805047994 4 SCREW M6×30 GB/T16674.1-2004 |
|
12 803589283 1 COMBINATION ROCKER SWITCH |
|
13 252116664 1 CAB WIRE |
|
14 839901427 25 NYLON 5×250 |
|
15 803589284 1 COMBINATION ROCKER SWITCH |
|
16 251808937 1 WIRES |
|
17 803588342 1 SINGLE MOTOR WASHER ASSEMBLY |
|
19 803684468 1 POWER SUPPLY RELAY |
|
20 805004709 6 BOLT M6×16(DACROMET) GB/T16674.1-2004 |
|
22 803608668 1 RELAY |
|
25 801970978 8 CONNECTOR CABLE TIE 4.8×190 GNP-190STB |
