XCMG LW550FN WHEEL LOADER PARTS MANUAL 33
|
802138058 WINDSHIELD WIPER 251808934 CAB ELECTRICAL SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 802141469 1 EECTROMOTOR |
|
2 802141471 1 WIPER BLADE |
|
3 802141475 1 WIPER ARM |
|
803545523 LIGHT |
|
|
|
803545523 LIGHT 251808933 REAR CHASSIS ELECTRICAL SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860134405 1 JYDJ008 WORKING LAMP BULB |
|

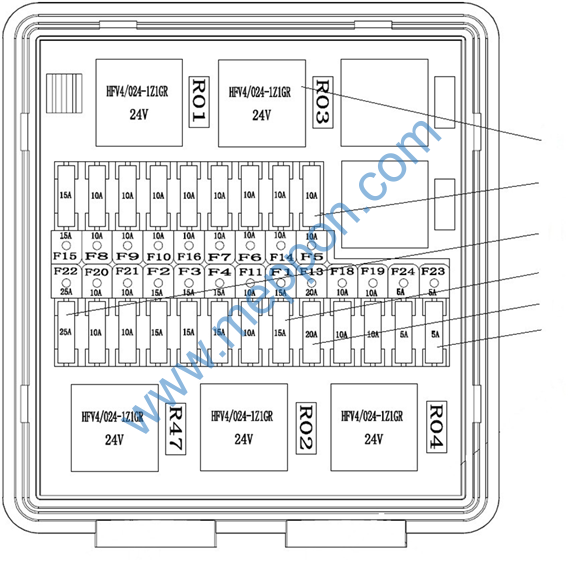

803690793 VEHICLE ELECTRICAL CENTER |
|
2 3 4 5 6 |
|
803690793 VEHICLE ELECTRICAL CENTER 251808934 CAB ELECTRICAL SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 803682286 7 HFV4/024-1Z1GR RELAY |
|
2 803682280 13 FUSE 10A |
|
3 803682283 1 ATS-25A FUSE25A |
|
4 803682281 5 FUSE 15A |
|
5 803682282 2 FUSE 20A |
|
6 803682279 2 FUSE 5A |
|

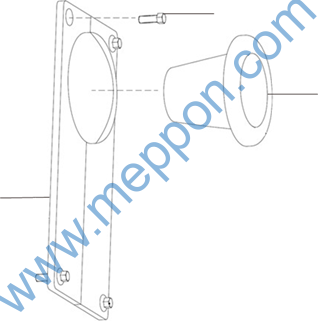

252116704 CAB HARNESS SEALING ASSEMBLY |
|
3
2
|
|
252116704 CAB HARNESS SEALING ASSEMBLY 251808934 CAB ELECTRICAL SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 252116705 2 SEALING PLATE |
|
2 803587868 1 RUBBER JACKET HT12×70 |
|
3 805004756 4 BOLT M8×20 (DACROMET) GB/T16674.1-2004 |
|

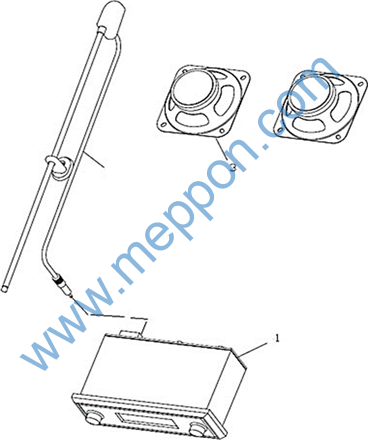

803588584 FOLDING MACHINE |
|
3 |
|
803588584 FOLDING MACHINE 251808934 CAB ELECTRICAL SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860138642 1 RADIO/AUDIO PLAYER ANTENNA |
|
2 803588585 2 RADIO/AUDIO PLAYER SPEAKER |
|
3 860138641 1 RADIO/AUDIO PLAYER UNIT |

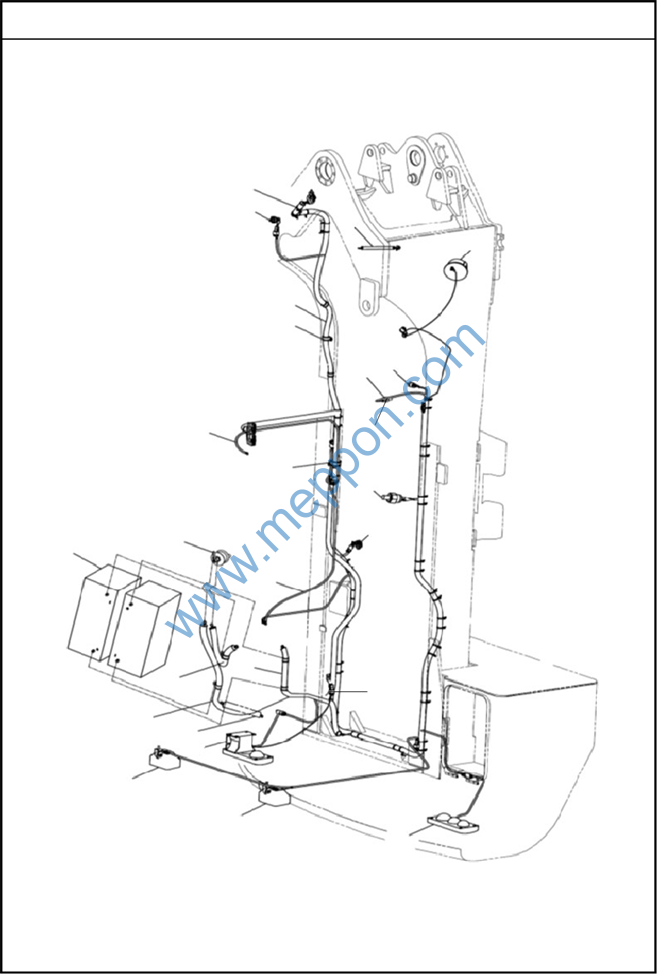

251808933 REAR CHASSIS ELECTRICAL SYSTEM
1
2 18
6
3
4
17 16
5 23
22 21
20
12 8
7
9 11 24
10 19
13
14
14
15
|
251808933 REAR CHASSIS ELECTRICAL SYSTEM 251808936 ELECTRIC SYSTEM |
|||||
|
No. |
PART NUMBER |
QTY |
NAME |
NOTE |
PAGE |
|
1 |
801970978 |
50 |
CONNECTOR CABLE TIE 4.8×190 |
GNP-190STB |
|
|
2 |
803678437 |
1 |
BRAKE LAMP SWITCH |
||
|
3 |
251808935 |
1 |
REAR FRAME HARNESS |
||
|
4 |
803199325 |
2 |
FERRULE Φ16 |
TJBC |
|
|
5 |
803688630 |
1 |
BATTERY CABLE |
||
|
6 |
813500699 |
1 |
AIR PRESSURE SENSOR |
||
|
7 |
803684978 |
1 |
BATTERY CABLE |
||
|
8 |
803604579 |
1 |
BATTERY NEGATIVE SWITCH |
||
|
9 |
803611380 |
1 |
BATTERY CABLE |
||
|
10 |
803801014 |
1 |
BATTERY CABLE |
||
|
11 |
803690697 |
1 |
BATTERY CABLE |
||
|
12 |
803505989 |
2 |
BATTERY |
||
|
13 |
803544308 |
1 |
REVERSING BEEPER |
||
|
14 |
803545523 |
2 |
LIGHT |
||
|
15 |
803587849 |
2 |
TAIL COMBINATION LAMP |
||
|
16 |
803546617 |
1 |
PRESSURE SWITCH |
||
|
17 |
803547478 |
1 |
VDO TEMPERATURE SENSOR (DECHI PLUG-IN) |
||
|
18 |
803608732 |
1 |
BATTERY CABLE |
||
|
19 |
803614143 |
1 |
BATTERY CABLE |
||
|
20 |
803547477 |
1 |
VDO TEMPERATURE SENSOR (DECHI PLUG-IN) |
||
|
21 |
803678440 |
1 |
PRESSURE SWITCH |
||
|
22 |
803300794 |
1 |
FERRULE Φ35 |
TJBC |
|
|
23 |
803744087 |
1 |
DECHI SMALL BRACKET |
||
|
24 |
803683146 |
2 |
DELPHI LOCATING BRACKET |
||
