251808383 SUPPORT PLATE ASSY

251811593 WORKING HYDRAULIC SYSTEM (1)

No. PART NUMBER QTY NAME    NOTE    PAGE

1 251808382    1    BRACKET

2 253301724    1    U-BOLT

3 805238533    2    NUT 10    GB/T6177.1-2000

4 805004770    2    BOLT M10×20(DACROMET)    GB/T16674.1-2004

251808364 OIL RETURN BLOCK ASSY

3

1

2

251808364 OIL RETURN BLOCK ASSY

251811593 WORKING HYDRAULIC SYSTEM (1)

No. PART NUMBER QTY NAME    NOTE    PAGE

1 251807963    1    OIL RETURN BLOCK

2 252911076    1    FLANGE    400

3 805004763    2    BOLT M10×25(DACROMET)    GB/T16674.1-2004

252911076 FLANGE

2

1

3

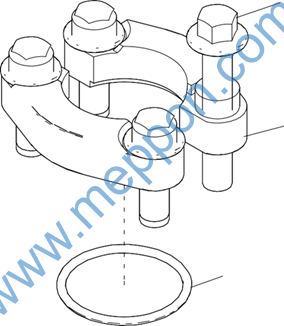

252911076 FLANGE

252914539 WORKING PUMP OIL SUCTION STEEL PIPE ASSY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803164240    1    FLANGE

2 805048017    4    BOLT M12×35 (DACROMET)    GB/T16674.1-2004

3 803401133    1    ORING47.22×3.53    225N552-90

253007816 FUEL TANK SUCTION STEEL PIPE ASSY

251811593 WORKING HYDRAULIC SYSTEM (1)

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252911084    1    FLANGE    404

2 253007814    1    FUEL TANK SUCTION STEEL PIPE

252911084 FLANGE

2

1

3

252911084 FLANGE

253007816 FUEL TANK SUCTION STEEL PIPE ASSY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803164258    1    FLANGE

2 805048017    4    BOLT M12×35 (DACROMET)    GB/T16674.1-2004

3 803401136    1    ORING56.74×3.53    228N552-90

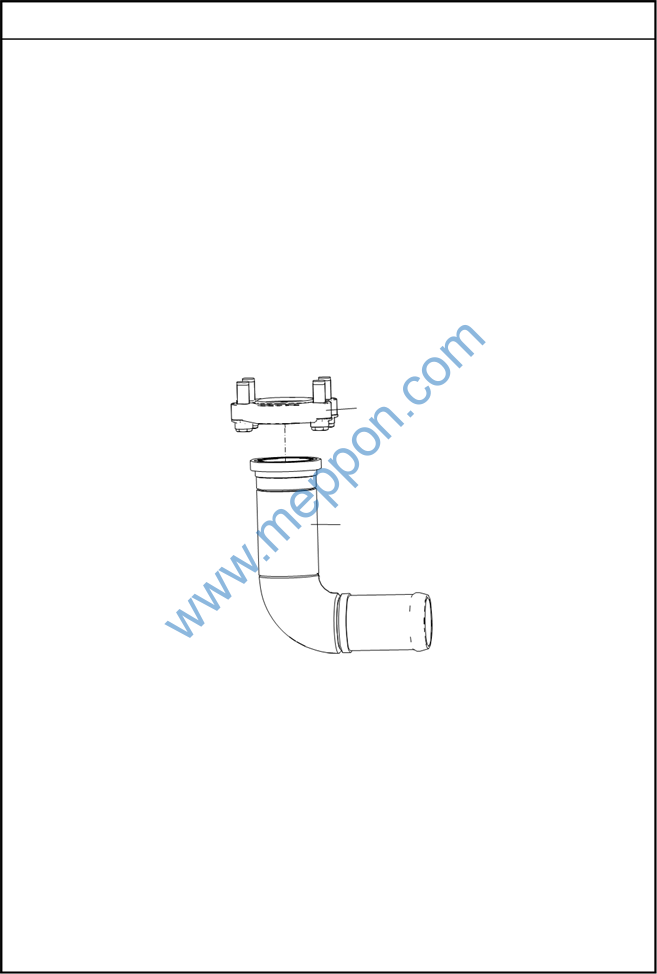

252914539 WORKING PUMP OIL SUCTION STEEL PIPE ASSY

1

2

252914539 WORKING PUMP OIL SUCTION STEEL PIPE ASSY

251811593 WORKING HYDRAULIC SYSTEM (1)

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252914540    1    WORKING PUMP OIL SUCTION STEEL PIPE

2 252911076    1    FLANGE    408
