XCMG LW550FN WHEEL LOADER PARTS MANUAL 43
|
251808046 SINGLE JOYSTICK TWO-CIRCUIT PILOT VALVE ASSY 251808624 CAB PILOT PIPELINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
2 803103529 1 SPLICE |
|
3 805002295 5 SPLICE |
|
4 805004717 4 BOLT M8×25 GB/T16674.1-2004 |
|
5 803103961 1 END CAP |
|
6 252101425 1 SINGLE JOYSTICK OPERATION LABEL |
|

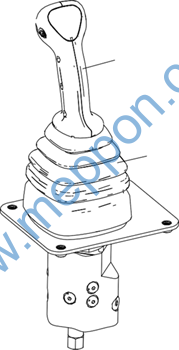

803086379 SINGLE JOYSTICK PILOT VALVE |
|
2 |
|
803086379 SINGLE JOYSTICK PILOT VALVE 251808046 SINGLE JOYSTICK TWO-CIRCUIT PILOT VALVE ASSY |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860140599 1 JOYSTICK ASSY |
|
2 860140600 1 DUST COVER |
|

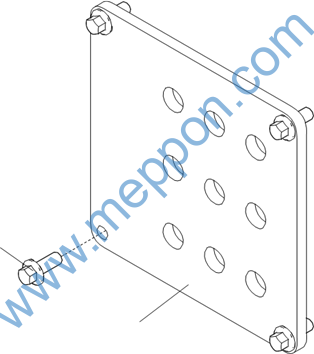

251808048 CAB PIPELINE MOUNTING PLATE ASSY |
|
1 |
|
251808048 CAB PIPELINE MOUNTING PLATE ASSY 251808624 CAB PILOT PIPELINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 251808047 1 MOUNTING PLATE |
|
2 805004756 4 BOLT M8×20 (DACROMET) GB/T16674.1-2004 |
|

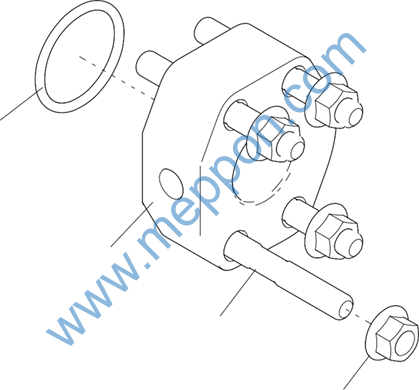

251810949 PRESSURE MEASUREMENT FLANGE |
|
1
3
4 |
|
251810949 PRESSURE MEASUREMENT FLANGE 251811594 OPERATING SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 269901947 1 PRESSURE MEASUREMENT FLANGE |
|
2 803401130 1 ORING37.69×3.53 222N552-90 |
|
3 805002240 4 SCREW M10×80 GB/T901-1988 |
|
4 805238533 4 NUT 10 GB/T6177.1-2000 |
|

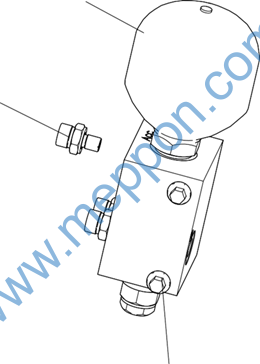

252121261 PILOT OIL SOURCE VALVE GROUP |
|
3
|
|
252121261 PILOT OIL SOURCE VALVE GROUP 251811594 OPERATING SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 804008969 1 PILOT OIL SOURCE VALVE BLOCK |
|
2 805004756 2 BOLT M8×20 (DACROMET) GB/T16674.1-2004 |
|
3 803103326 3 SPLICE |
|
4 803103958 1 END CAP |
|

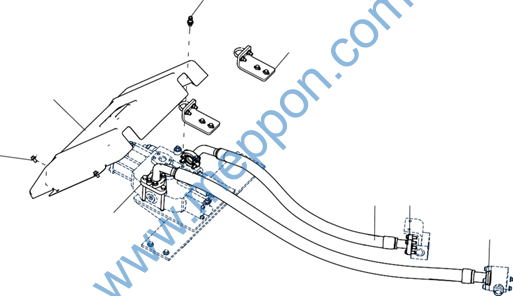

251811537 ARTICULATED PIPELINE 251811487 HYDRAULIC SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 804406531 1 HOSE ASSEMBLY |
|
2 252911080 2 FLANGE |
|
3 804406527 1 HOSE ASSEMBLY |
|
5 803163524 1 SPLICE |
|
6 251811058 1 COVER |
|
7 805048005 4 BOLT M10×16(DACROMET) GB/T16674.1-2004 |
