XCMG ZL50GN WHEEL LOADER PARTS MANUAL 13
|
252919192 SHOCK ABSORBERS 252912236 BRACKET |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 801974091 1 SHOCK CABSORBER |
|
2 252614586 1 CUSHION |
|
3 805047771 1 SLEEVE,SCREW,&NUT SUB-ASSY METRIC M20×150 GB/T5782-2000 |
|
4 805201518 1 NUT M20 GB/T6182-2010 |
|
1
2 6 3 4 |
|

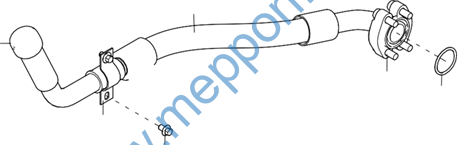

252913917 OIL PIPE ASSEMBLY 252115353 TRANSMISSION AND TORQUE CONVERTER SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 252918386 1 TRANSMISSION OIL FILLER PIPE |
|
2 803164828 1 FLANGE |
|
3 253402545 1 FIXING CLAMP |
|
4 805047997 2 BOLT M8×12(DACROMET) GB/T16674.1-2004 |
|
5 803453561 1 NUT SEAL CAP M36×2 |
|
6 803401130 1 ORING37.69×3.53 222N552-90 |
|

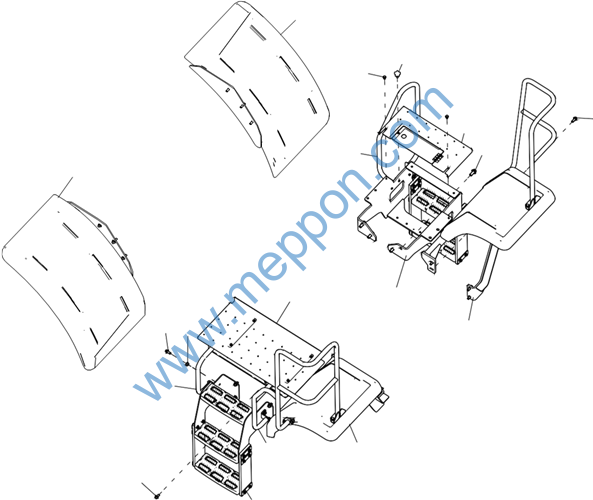

252917807 UNDERCARRIAGE SYSTEM 252116885 50GNV(I) WHEEL LOADER |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
3 805048033 4 SLEEVE,SCREW,&NUT SUB-ASSY METRIC M16×35 GB/T16674.1-2004 |
|
4 252917789 1 UP COVER PLATE |
|
5 801974730 2 MANUAL TIGHTEN BOLT |
|
6 252917802 1 RIGHT-FRONT HANDRAIL |
|
7 805004699 14 BOLT M12×30 GB/T16674.1-2004 |
|
8 253801223 1 RIGHT FENDER |
|
9 253801222 1 LETF FENDER |
|
10 805048016 15 BOLT M12×20 (DACROMET) GB/T16674.1-2004 |
|
13 252917022 1 LEFT-FRONT HANDRAIL |
|
14 253801366 1 LEFT BACK HANDRAIL |
|
7
2
6
5
3 4 |
|

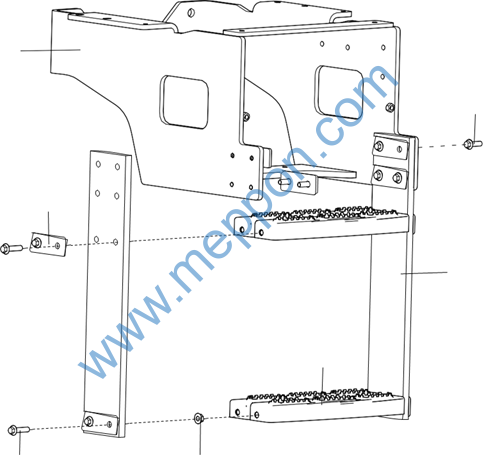

252917805 RIGHT BOX 252917807 UNDERCARRIAGE SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 252917794 1 RIGHT TANK BODY |
|
2 805048007 8 BOLT M10×35 GB/T16674.1-2004 |
|
3 252916992 2 RUBBER PLATE |
|
4 805048008 8 BOLT M10×40 GB/T16674.1-2004 |
|
5 252908262 8 RETAINER FLEX-PLATE |
|
6 805238533 8 NUT 10 GB/T6177.1-2000 |
|
7 252916843 2 PEDAL |
|
252917796 RIGHT REAR FENDER |
|
1
3 |
|

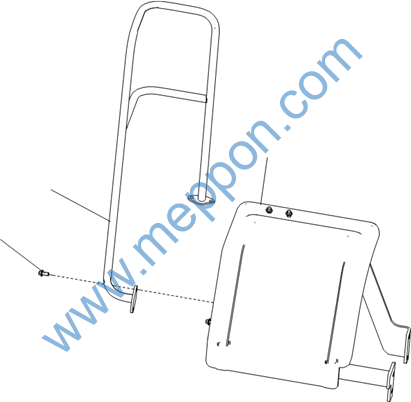

252917796 RIGHT REAR FENDER 252917807 UNDERCARRIAGE SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 252917797 1 RIGHT BACK FENDER |
|
2 252917822 1 RIGHT REAR GUARDRAIL |
|
3 805004764 4 BOLT M12×25 (DACROMET) GB/T16674.1-2004 |
|

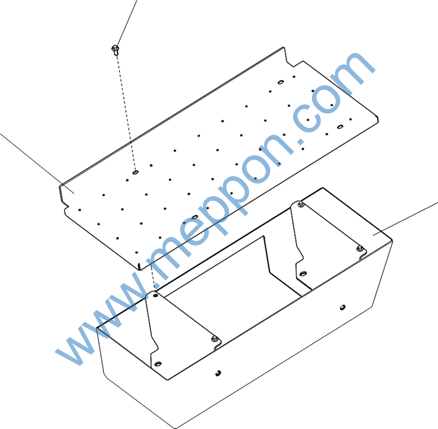

252917791 LEFT BOX |
|
2
1 |
