250202028 CURVED HANDLE BRAKE

272200753 ZL50 TRANSMISSION ASSEMBLY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860114987    1    BRAKING PLATE

251806247 VENTILATOR ASSY

2

4

1

3

251806247 VENTILATOR ASSY

252115353 TRANSMISSION AND TORQUE CONVERTER SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 251806245    1    VENTILATION CONNECTING PIPE

2 251702785    1    RESPIRATOR ASSEMBLY

3 805048016    1    BOLT M12×20 (DACROMET)    GB/T16674.1-2004

4 252110079    1    BREATHER LEBEL    Z5GS.16-10

8

1

2

3 4    5    6    7

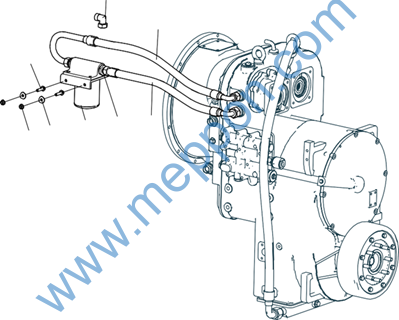

252911394 FILTER

252115353 TRANSMISSION AND TORQUE CONVERTER SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 813403710    1    HOSE ASSEMBLY

2 805048008    2    BOLT M10×40    GB/T16674.1-2004

3 805238533    2    NUT 10    GB/T6177.1-2000

4 805338267    2    WASHER 10    GB/T96.1-2002

5 803440533    1    FILTER    116

6 803164756    2    SPLICE

7 252910610    1    HOSE ASSEMBLY

8 803173684    1    SPLICE

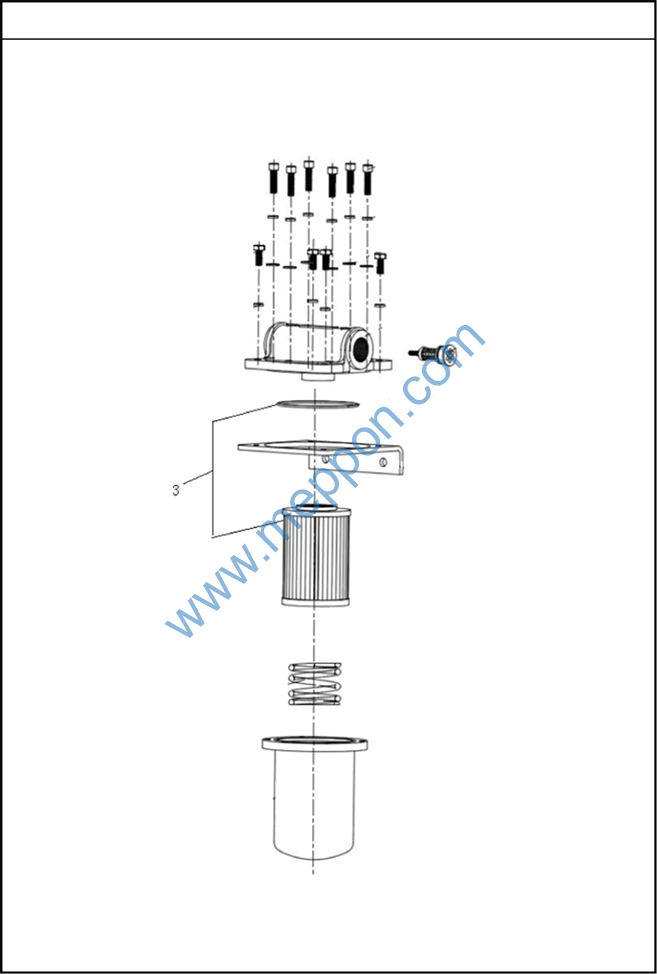

803440533 FILTER

252911394 FILTER

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860164488    1    ELECTRICAL BOX FILTER ELEMENT

4    3    2    1

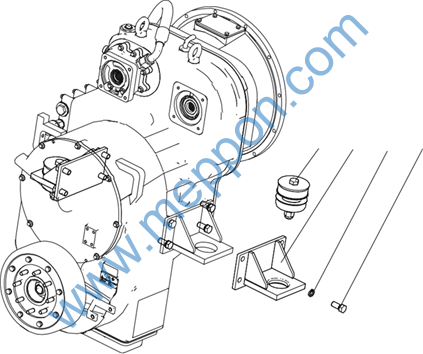

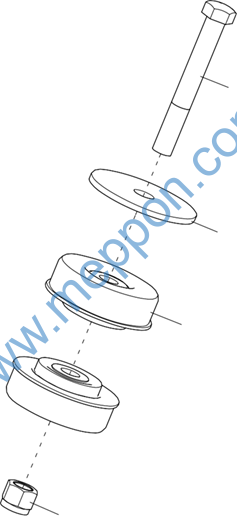

252912236 BRACKET

252115353 TRANSMISSION AND TORQUE CONVERTER SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 805046468    8    SLEEVE,SCREW,&NUT SUB-ASSY METRIC M18×40    GB/T5783-2000

2 805338364    8    WASHER 18    GB/T93-1987

3 252800331    2    TRANSMISSION SUPPORT

4 252919192    2    SHOCK ABSORBERS    120

3

2

1

4
