860523162 VENTILATION PIPE ASSY

800152539 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860137820    5    HEXAGON FLANGE BOLT

2 860522710    1    SPACER

3 860137509    1    MAIN COVER BOARD

4 860137208    1    FILTER SEAT

5 860508951    4    HEXAGON FLANGE BOLT

6 800164560    4    HEXAGON FLANGE NUT

7 860137209    4    HEXAGON FLANGE BOLT

8 860137210    4    HEXAGON FLANGE NUT

9 860137213    1    SEALING PAD

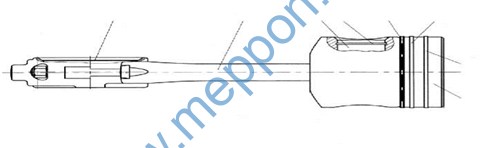

860523163 PISTON AND ROD GROUP

1    2    3    4    5    6

7

8

11

9 ,10

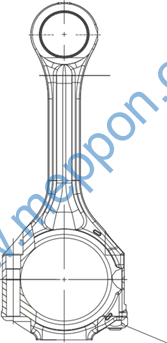

860523163 PISTON AND ROD GROUP

800152539 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 809903252    2    CONNECTING ROD BUSHING

2 860522711    1    CONNECTING ROD MACHINING PARTS

3 860117358    1    PISTON PIN

4 860113015    2    LOCK SPRING

5 860119965    1    OIL CONTROL RING SUBASSEMBLY

6 860119967    1    INNER CONE RING

7 860119966    1    TRAPEZOID TUBBISH RING

8 860119964    1    PISTON

9 860522712    2    CONNECTING ROD BOLT

10 860136658    2    NUT

11 860522713    1    CONNECTING ROD BUSHING

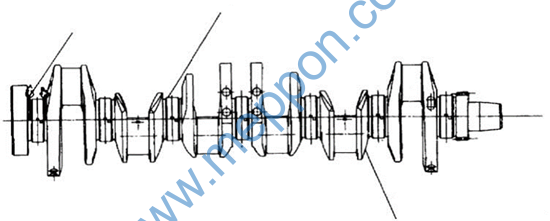

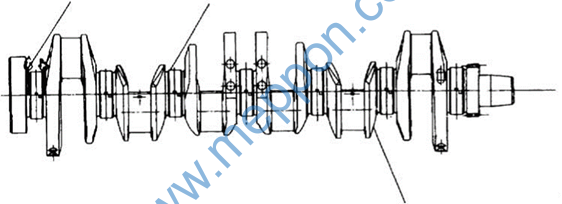

860523164 CRANKSHAFT

1    2

3

7

4

5    6

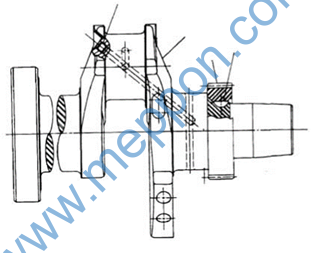

860523164 CRANKSHAFT

800152539 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860522714    2    THRUST CHIP

2 809903260    7    MAIN SHELL

3 860160420    1    CRANKSHAFT COMPONENT

4 860136700    1    CRANKSHAFT

5 860522715    1    CRANKSHAFT GEAR

6 860136659    1    CYLINDRICAL PIN

7 860522716    6    SCREW

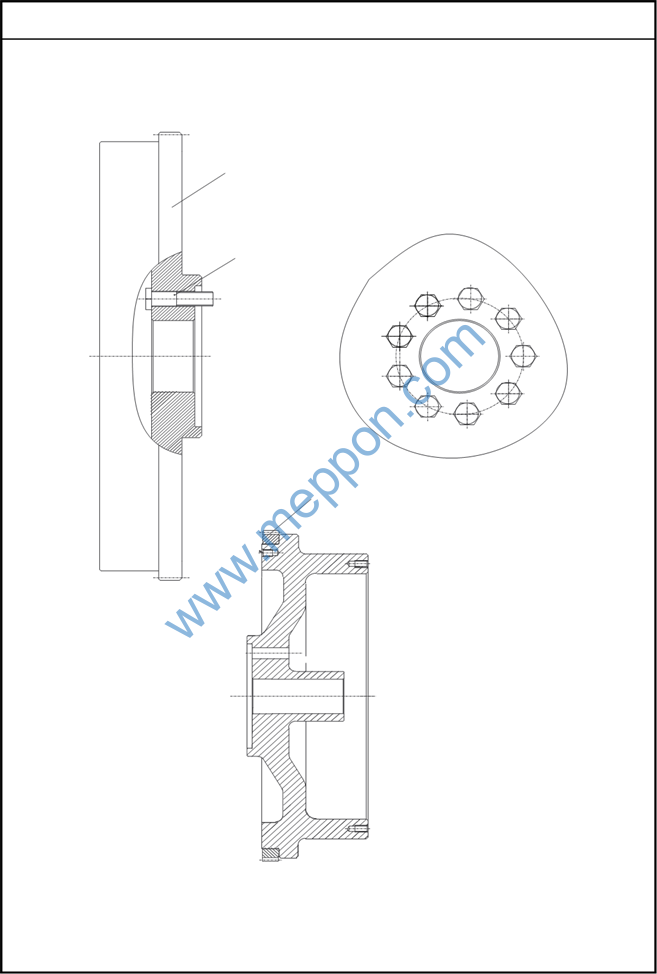

860523165 BELT PART

2

1

3

860523165 BELT PART

800152539 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860137510    1    CRANKSHAFT PULLEY

2 860137511    1    WASHER

3 860137512    1    HEXAGON BOLT

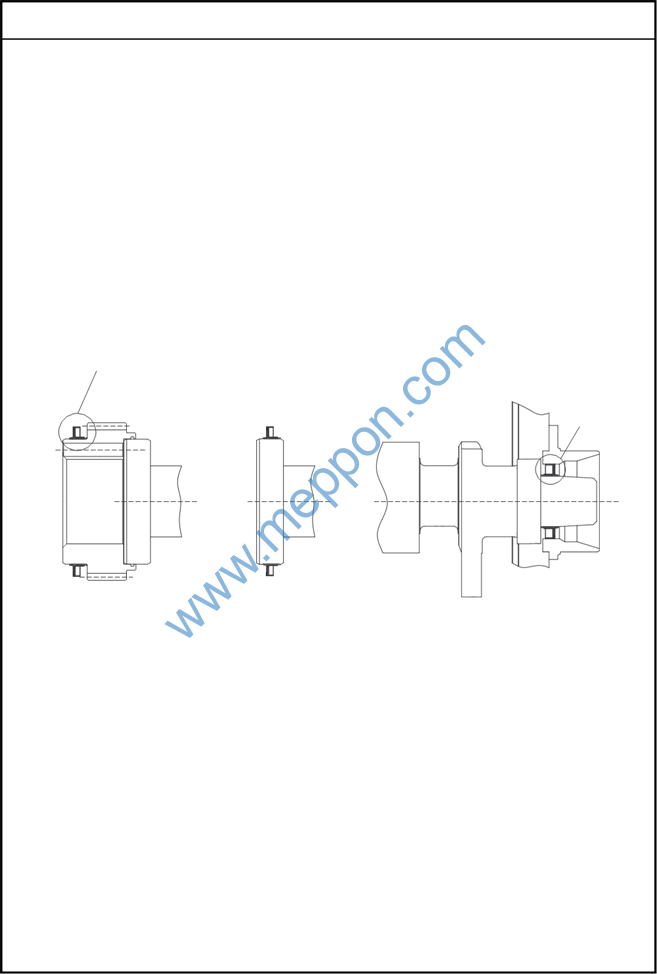

860523166 OIL SEALING PART

800152539 ENGINE

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860522760    1    OIL SEALING PART

2 803379971    1    OIL SEALING PART
