XCMG ZL50GN WHEEL LOADER PARTS MANUAL 23
|
860523178 TIGHTENING PART 800152539 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860522766 4 SEALING PAD |
|
2 860137552 14 FLAT WASHER |
|
3 860137554 4 SCREW |
|
4 860137272 3 RING |
|
5 860137542 12 NUT |
|
6 860137556 3 HEXAGON BOLT |
|
7 860137553 8 SCREW |
|
8 860137557 1 THERMAL INSULATION COVER |
|
9 860137558 1 THERMAL INSULATION COVER |
|
10 860137273 1 RING |
|
11 860137555 1 WASHER |

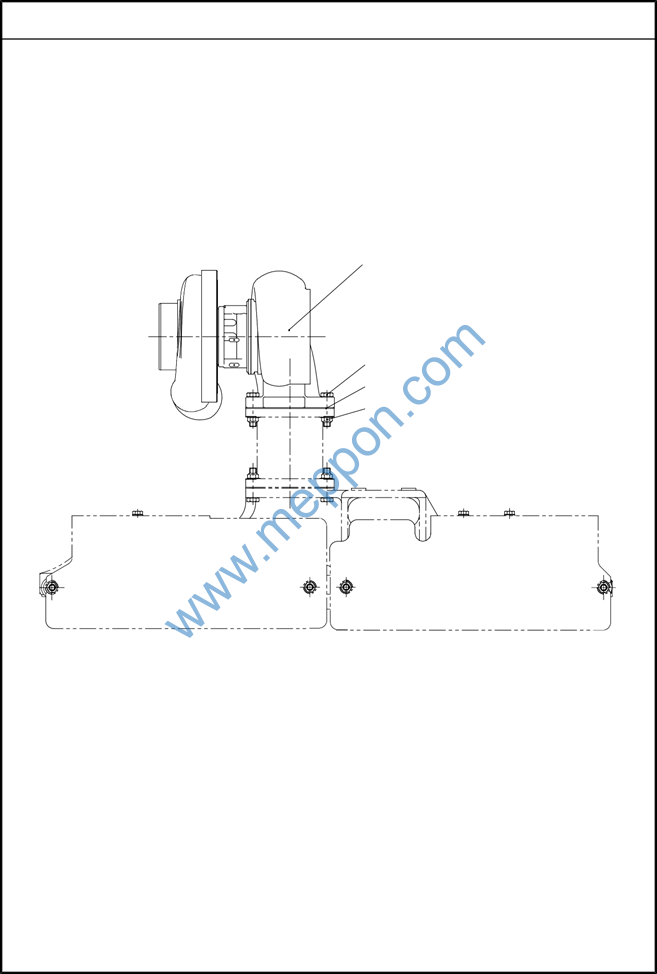

860523179 TURBOCHARGER SET
1
2
3
4
|
860523179 TURBOCHARGER SET 800152539 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860136810 1 TUOBOCHARGER PART |
|
2 860137541 4 SCREW |
|
3 860137540 1 TURBINE INLET GASKET |
|
4 860137542 4 NUT |

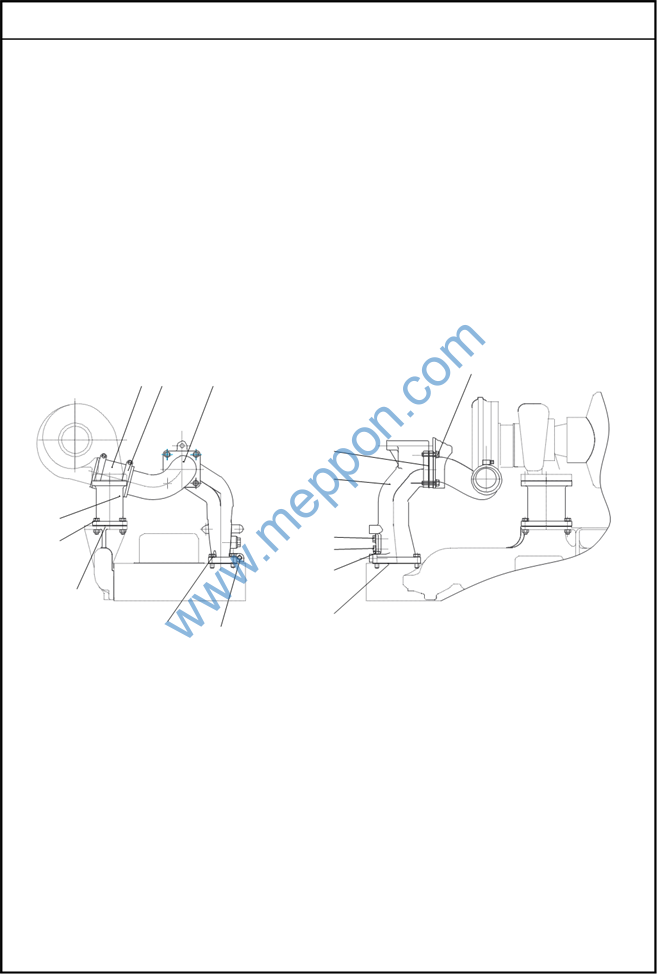

860523180 INLET PIPE PARTS
1 2 3 4,5
14
16 ,17
15
5 12 ,13
6
7
8 ,9
10
4
11
|
860523180 INLET PIPE PARTS 800152539 ENGINE |
|||||
|
No. |
PART NUMBER |
QTY |
NAME |
NOTE |
PAGE |
|
1 |
860137534 |
1 |
JOINT PIPE |
||
|
2 |
800150172 |
2 |
PIPE HOOP |
||
|
3 |
860137535 |
1 |
COMPRESSOR OUTLET ELBOW |
||
|
4 |
860137538 |
4 |
HEXAGON FLANGE BOLT |
||
|
5 |
800150311 |
4 |
HEXAGON FLANGE BOLT |
||
|
6 |
860137536 |
1 |
SPACER |
||
|
7 |
860137537 |
1 |
BENDED PIPE |
||
|
8 |
800150174 |
1 |
HEXAGON HEAD SCREW PLUG |
||
|
9 |
800150414 |
1 |
WASHER |
||
|
10 |
860136682 |
1 |
PLUG SCREW |
||
|
11 |
860137539 |
1 |
SPACER |
||
|
12 |
800150175 |
1 |
SCREW PLUG |
||
|
13 |
860137544 |
1 |
WASHER |
||
|
14 |
860137543 |
1 |
BENDED PIPE |
||
|
15 |
860137540 |
1 |
TURBINE INLET GASKET |
||
|
16 |
860137541 |
4 |
SCREW |
||
|
17 |
860137542 |
4 |
NUT |
||
|

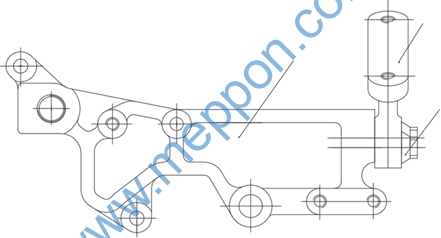

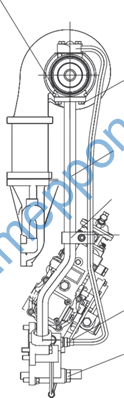

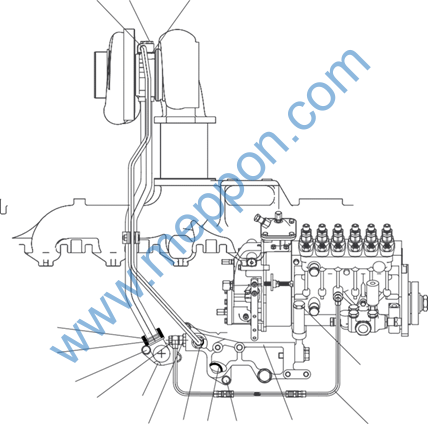

860523181 OIL PIPE PART |
|
7
8 3,6,9
24 11,12 23 13,14 22 14 20,21 19
25
27 |
|
860523181 OIL PIPE PART 800152539 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860137604 1 SUPERCHARGER OIL INLET PIPE WELDING PARTS |
|
2 860137355 1 O-RING |
|
3 860137342 6 FLAT WASHER |
|
4 860137600 1 SPACER |
|
5 860137601 1 OIL RETURN PIPE SHIM |
|
6 860137522 3 HEXAGON FLANGE BOLT |
|
7 860137605 1 SUPERCHARGER RETURN TUBING WELDING PARTS |
|
8 860137343 2 CHUCK |
|
9 860137603 1 TYPE I HEXAGON NUT |
|
10 860137353 2 O-RING |
|
11 860137609 1 FLAT WASHER |
|
12 800150285 1 FLAT WASHER |
|
13 860137612 1 INLET PIPE PARTS |
|
14 860137613 2 HEXAGON FLANGE BOLT |
|
15 860137228 3 BRACKET |
|
16 800150237 2 FLAT WASHER |
|
17 860137348 2 O-RING |
|
18 860137610 1 JOINT |
|
19 860137349 1 SPACER |
|
20 800150416 1 ARTICULATED BOLT |
|
21 800150304 2 WASHER |
|
22 860137494 1 HEXAGON FLANGE BOLT |
|
23 860137351 1 O-RING |
|
24 860137608 1 ELBOW CONNECTOR |
|
25 860137607 1 FUEL INJECTION PUMP BRACKET |
|
26 860137606 1 FUEL INJECTION PUMP BRACKET |
|
27 860522767 2 HEXAGON FLANGE BOLT |

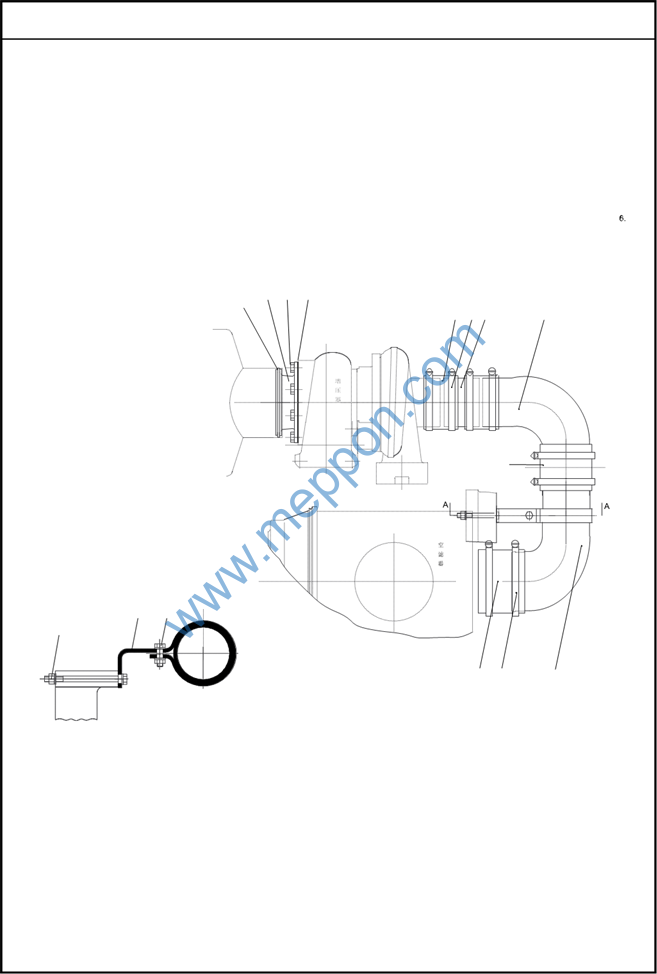

860523182 INLET PIPE PARTS
1 2 3 4 5 6 7 8
12,13 ,14
15 13,16
11 10 9
|
860523182 INLET PIPE PARTS 800152539 ENGINE |
|||||
|
No. |
PART NUMBER |
QTY |
NAME |
NOTE |
PAGE |
|
1 |
860138035 |
1 |
SEALING RING |
||
|
2 |
860137545 |
1 |
JOINT PIPE |
||
|
3 |
860137548 |
6 |
BOLT |
||
|
4 |
860137549 |
1 |
SPACER |
||
|
5 |
860137266 |
3 |
RUBBER WATER PIPE |
||
|
6 |
860129932 |
6 |
PIPE HOOPB00001532 |
||
|
7 |
860137550 |
1 |
AIR-INLET PIPE |
||
|
8 |
860137546 |
1 |
BENDING PIPE |
||
|
9 |
860137547 |
1 |
BENDING PIPE |
||
|
10 |
860129934 |
2 |
PIPE HOOP |
||
|
11 |
860129935 |
1 |
RUBBER WATER PIPE |
||
|
12 |
860137262 |
1 |
SLEEVE,SCREW,&NUT SUB-ASSY METRIC |
||
|
13 |
860137236 |
2 |
TYPE I HEXAGON NUT |
||
|
14 |
860137263 |
1 |
WAHSER |
||
|
15 |
860137264 |
1 |
HOOP |
||
|
16 |
860137265 |
1 |
HEXAGON FLANGE BOLT |
||
|

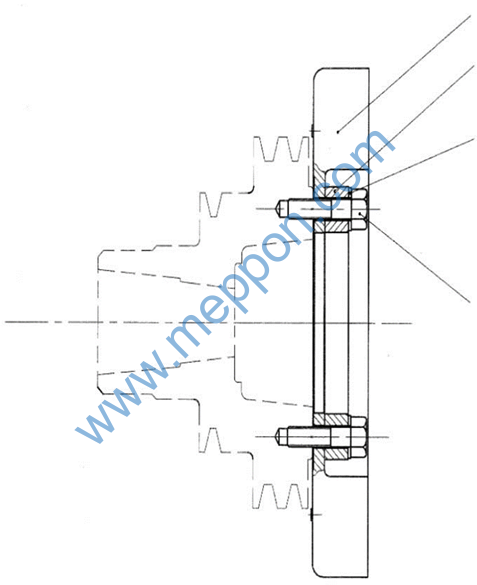

860523183 SHOCK ABSORBER ASSY |
|
2
3
4 |
