XCMG ZL50GN WHEEL LOADER PARTS MANUAL 30
|
860168255 VARIANT SUPPORTING COMPONENTS 800152539 ENGINE |
|||||
|
No. |
PART NUMBER |
QTY |
NAME |
NOTE |
PAGE |
|
1 |
860137473 |
1 |
WATER TEMPERATURE GAUGE CONNECTOR |
||
|
2 |
860137474 |
1 |
JOINT |
||
|
3 |
860137475 |
1 |
JOINT |
||
|
4 |
860137692 |
1 |
BENDING CONNECTOR |
||
|
5 |
860137477 |
1 |
JOINT |
||
|
6 |
860137693 |
1 |
PIPE PART |
||
|
7 |
860137479 |
2 |
PIPE CLIP |
||
|
8 |
860137694 |
2 |
SLEEVE,SCREW,&NUT SUB-ASSY METRIC |
||
|
9 |
860137695 |
1 |
SOFT SHAFT BRACKET |
||
|
10 |
860137696 |
1 |
HEXAGON FLANGE BOLT |
||
|
11 |
860117679 |
1 |
OPERATE SHAFT |
||
|
12 |
860137488 |
1 |
PIPELINE |
||
|
13 |
860168256 |
2 |
ARTICULATED BOLT |
||
|
14 |
860137197 |
4 |
WASHER |
||
|
15 |
860137697 |
2 |
HEXAGON FLANGE BOLT |
||
|
16 |
860137698 |
1 |
HEXAGON FLANGE BOLT |
||
|
17 |
860137699 |
1 |
ALTERNATOR BRACKET |
||
|
18 |
860523046 |
1 |
OIL PIPE |
||
|
19 |
860137489 |
1 |
SPLICE |
||
|
252114041 DOUBLE VARIABLE OIL DISPERSION LINE |
|
2
3
4
5, 6 |
|
252114041 DOUBLE VARIABLE OIL DISPERSION LINE 252114040 ENGINE ASSEMBLY |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 803103798 2 SPLICE |
|
2 252108100 1 HOSE ASSEMBLY |
|
3 252108098 1 HOSE ASSEMBLY |
|
4 252908748 1 CLAMP ASSEMBLY |
|
5 803199330 1 FERRULE Φ40 TJBC |
|
6 805047997 1 BOLT M8×12(DACROMET) GB/T16674.1-2004 |

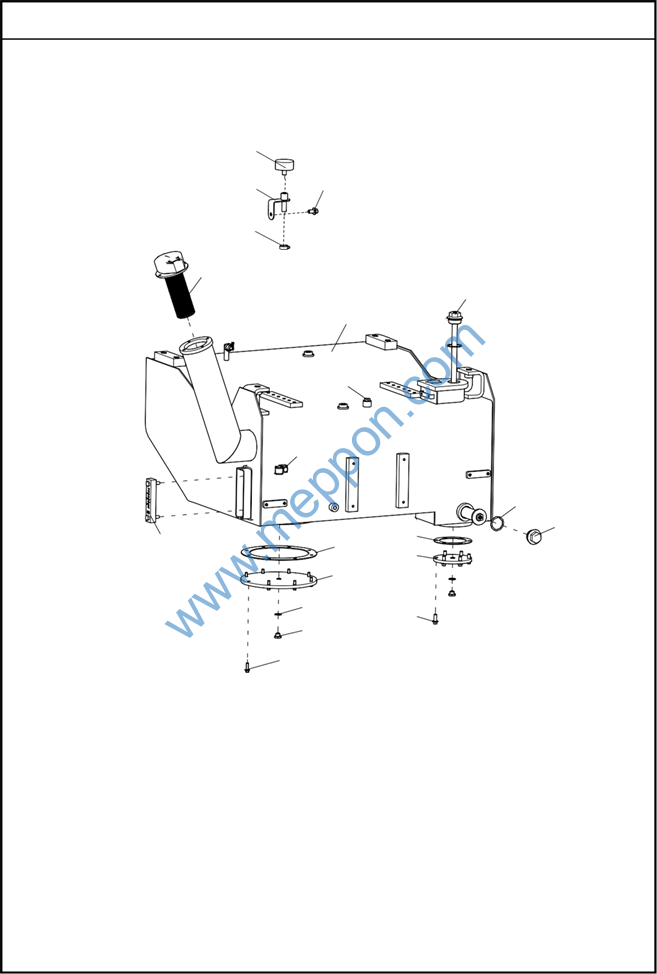

252909566 FUEL TANK ASSY
23
22 24
21
20
6
1, 2, 3
4, 5
12, 13
18
19 11 14 17
10
9 16
8
7
|
252909566 FUEL TANK ASSY 252114040 ENGINE ASSEMBLY |
|||||
|
No. |
PART NUMBER |
QTY |
NAME |
NOTE |
PAGE |
|
1 |
252905687 |
1 |
ASSY-SUCTION TUBE |
||
|
2 |
805301412 |
1 |
WASHER 18 |
Q/SC1294-2000 |
|
|
3 |
803164228 |
1 |
SUCTION FILTER ELEMENT |
||
|
4 |
805301410 |
1 |
WASHER 14 |
Q/SC1294-2000 |
|
|
5 |
803107807 |
1 |
SCREW PLUG M14×1.5 |
JB/T1000-1977 |
|
|
6 |
252909567 |
1 |
FUEL TANK |
||
|
7 |
805048016 |
1 |
BOLT M12×20 (DACROMET) |
GB/T16674.1-2004 |
|
|
8 |
251702785 |
1 |
RESPIRATOR ASSEMBLY |
||
|
9 |
251806245 |
1 |
VENTILATION CONNECTING PIPE |
||
|
10 |
801968904 |
2 |
HOOP B14-27 |
QC/T619-1999 |
|
|
11 |
803164230 |
1 |
OIL FILLER FILTER |
||
|
12 |
803164214 |
1 |
LIQUID LEVEL METER |
||
|
13 |
805004717 |
8 |
BOLT M8×25 |
GB/T16674.1-2004 |
|
|
14 |
803184623 |
2 |
PLUG SCREW |
QC/T385-1999 |
|
|
15 |
805301411 |
2 |
WASHER 16 |
Q/SC1294-2000 |
|
|
16 |
252905671 |
1 |
FLANGE |
||
|
17 |
252114296 |
1 |
CUSHION |
||
|
18 |
803300799 |
1 |
FERRULE Φ26-11 |
TJBC |
|
|
19 |
805000361 |
1 |
SLEEVE,SCREW,&NUT SUB-ASSY METRIC M10×1×20 |
GB/T5786-2000 |
|
|
20 |
250200206 |
1 |
SPACER |
||
|
21 |
252905672 |
1 |
FLANGE |
||
|
22 |
805004763 |
6 |
BOLT M10×25(DACROMET) |
GB/T16674.1-2004 |
|
|
23 |
252905762 |
1 |
SCREW PLUGM45×1.5 |
||
|
24 |
803164100 |
2 |
WASHER 45 |
||
|
25 |
250200471 |
1 |
OIL FILTER ASSEMBLY |
||
|

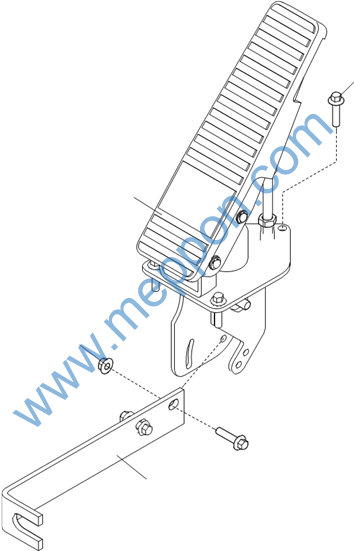

252100842 ACCELERATOR CONTROL |
|
4
2
3 |
|
252100842 ACCELERATOR CONTROL 252114040 ENGINE ASSEMBLY |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 803004130 1 ACCELERATOR CONTROL VALVE |
|
2 805135720 2 NUT M6(DACROMET) GB/T6177.1-2000 |
|
3 252100843 1 SOFT SHAFT BRACKET |
|
4 805047993 5 BOLT M6×25 (DACROMET) GB/T16674.1-2004 |

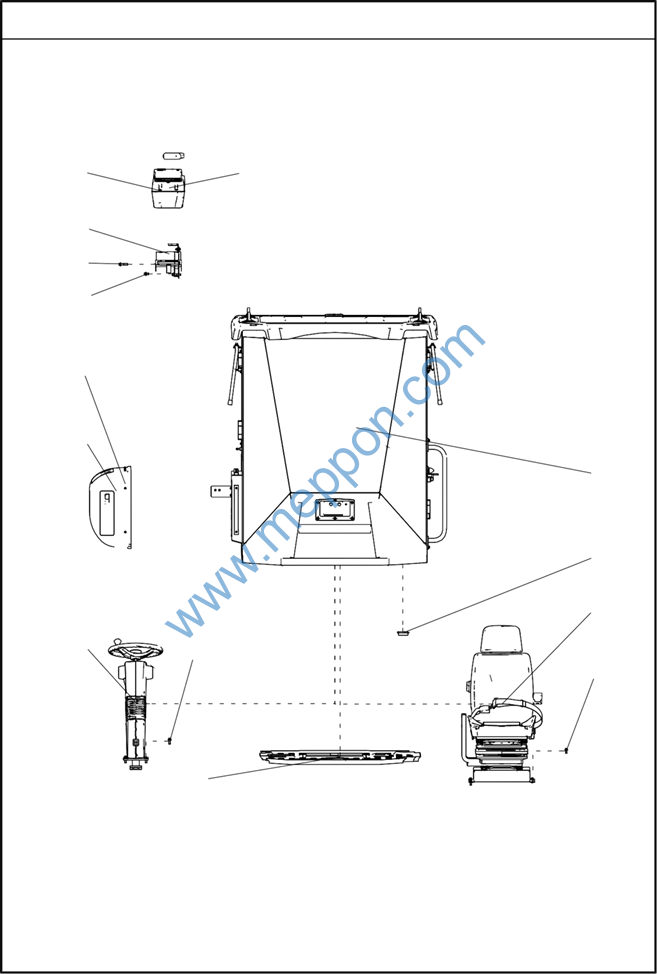

252121038 CAB SYSTEM
13 14
12
11
10
9
8
1
2
3
7 6
4
5
|
252121038 CAB SYSTEM 252116885 50GNV(I) WHEEL LOADER |
|||||
|
No. |
PART NUMBER |
QTY |
NAME |
NOTE |
PAGE |
|
1 |
252121022 |
1 |
CAB ASSEMBLY |
||
|
2 |
252919506 |
3 |
UNDERFRAME CROSSTIE PORT LID |
||
|
3 |
801973967 |
1 |
SEAT |
||
|
4 |
805004763 |
4 |
BOLT M10×25(DACROMET) |
GB/T16674.1-2004 |
|
|
5 |
252911103 |
1 |
RUBBER FLOOR |
||
|
6 |
805004699 |
4 |
BOLT M12×30 |
GB/T16674.1-2004 |
|
|
7 |
252910839 |
1 |
STEERING COLUMN ASSEMBLY |
||
|
8 |
252914453 |
1 |
A/C COVER ASSEMBLY |
||
|
9 |
805004713 |
7 |
BOLT M6×20(DACROMET) |
GB/T16674.1-2004 |
|
|
10 |
805048016 |
1 |
BOLT M12×20 (DACROMET) |
GB/T16674.1-2004 |
|
|
11 |
805048020 |
3 |
BOLT M12×50 (DACROMET) |
GB/T16674.1-2004 |
|
|
12 |
252917730 |
1 |
CONTROL BOX BRACKET |
||
|
13 |
805100273 |
7 |
SCREW M5×12 |
GB/T818-2000 |
|
|
14 |
252911920 |
1 |
OPERATOR BOX ASSY |
||

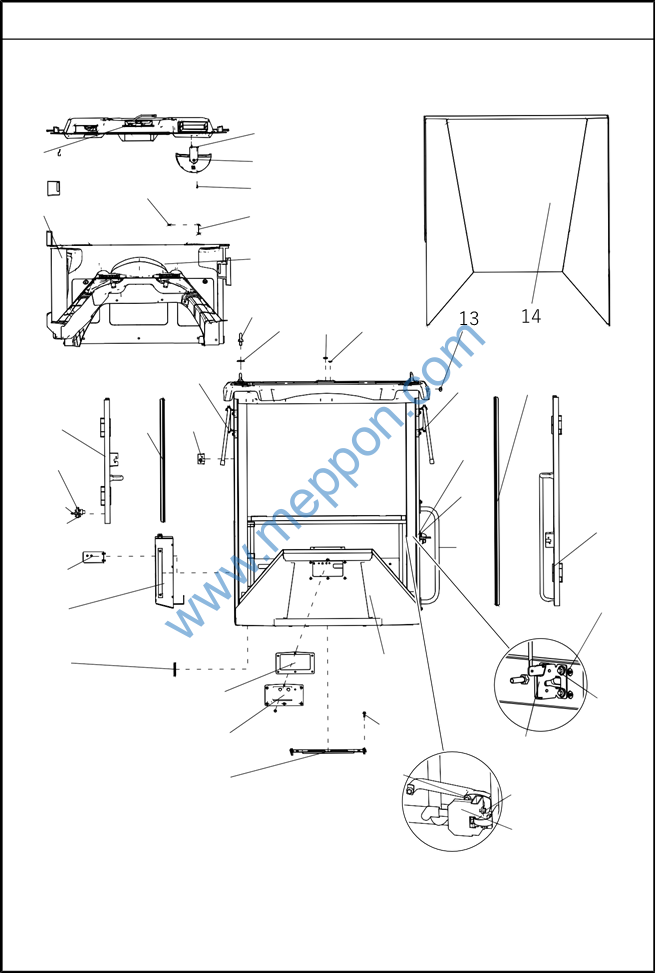

252121022 CAB ASSEMBLY
3
1 4
7 5
6
8
9
10 11 12
38 39
37
36
35
34
33
32
41 16 15
40
17
18
20
19
21
28
31 22
30 27 23
29 26 24
25
