252115194 CUTOFF CYLINDER ASSY

252119976 BRAKING SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252115199    1    CUTOFF CYLINDER ASSEMBLY    332

2 252115098    1    HOSE ASSEMBLY

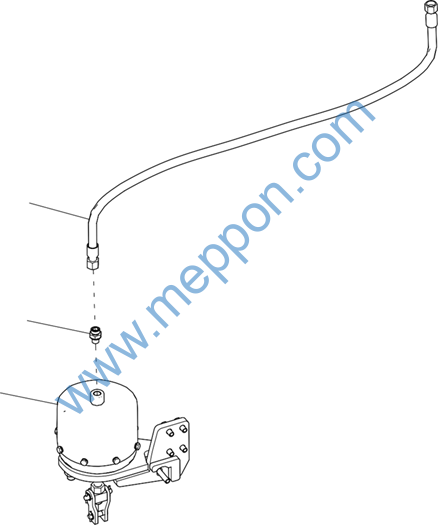

252115199 CUTOFF CYLINDER ASSEMBLY

4

3

2

1

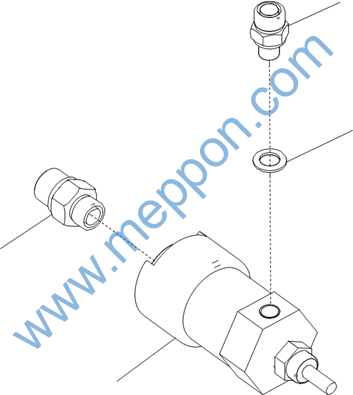

252115199 CUTOFF CYLINDER ASSEMBLY

252115194 CUTOFF CYLINDER ASSY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 800987628    1    BRAKE CYLINDER

2 803171569    1    SPLICE

3 805301418    1    WASHER 12    Q/SC1294-2000

4 803170739    1    SPLICE

252115193 HANDBRAKE BOOSTER CYLINDER ASSY

3

2

1

252115193 HANDBRAKE BOOSTER CYLINDER ASSY

252119976 BRAKING SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252908232    1    HANDBRAKE BOOSTER CYLINDER ASSEMBLY    336

2 803164726    1    SPLICE

3 252115089    1    HOSE ASSEMBLY

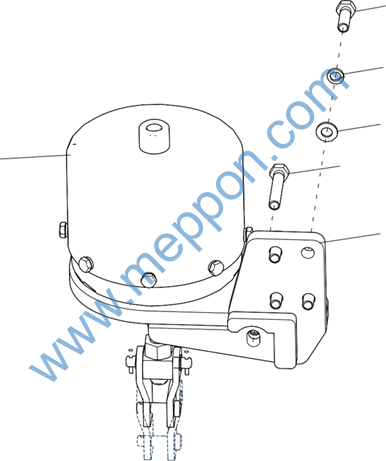

252908232 HANDBRAKE BOOSTER CYLINDER ASSEMBLY

6

5

4

1    3

2

252908232 HANDBRAKE BOOSTER CYLINDER ASSEMBLY

252115193 HANDBRAKE BOOSTER CYLINDER ASSY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 800901161    1    BRAKE CYLINDER

2 252908640    1    HANDBRAKE BRACKET

3 805000278    1    BOLT M10×55    GB/T5783-2000

4 805300017    5    SPRING WASHER 10    GB/T97.1-2002

5 805300014    5    SPRING WASHER 10    GB/T93-1987

6 805004763    4    BOLT M10×25(DACROMET)    GB/T16674.1-2004

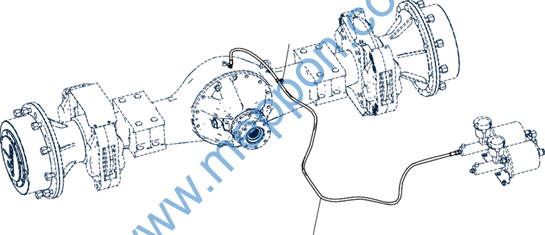

252115121 FRONT AXLE BRAKE OIL PIPE ASSY

1, 2

前驱动桥

加力泵组

3

252115121 FRONT AXLE BRAKE OIL PIPE ASSY

252119976 BRAKING SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803199324    1    FERRULE Φ14    TJBC

2 805004755    1    BOLT M8×16 (DACROMET)    GB/T16674.1-2004

3 252918385    1    HOSE ASSEMBLY

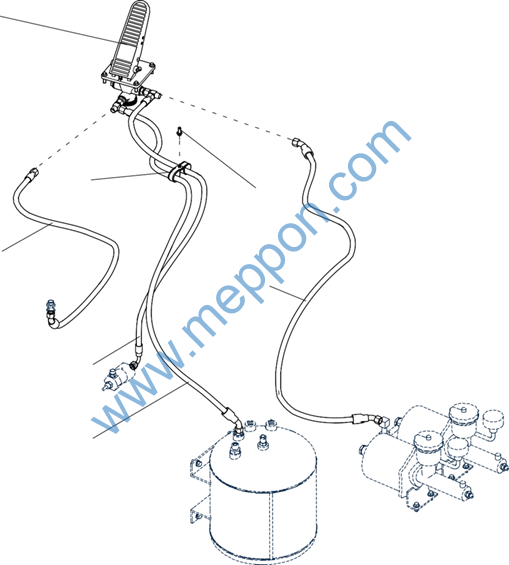

252119808 BRAKE CONTROLLER ASSY

1

3    4

2

7

5

6
