252119808 BRAKE CONTROLLER ASSY

252119976 BRAKING SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252119809    1    BRAKE CONTROLLER    342

2 803300794    2    FERRULE Φ35    TJBC

3 805004756    1    BOLT M8×20 (DACROMET)    GB/T16674.1-2004

4 252918608    1    HOSE ASSEMBLY

5 252112700    1    HOSE ASSEMBLY

6 252115130    1    HOSE ASSEMBLY

7 252115091    1    HOSE ASSEMBLY

252119809 BRAKE CONTROLLER

1

2

3    4    5

6    3

3

4

5

252119809 BRAKE CONTROLLER

252119808 BRAKE CONTROLLER ASSY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 800988105    1    AIR BRAKE VALVE

2 805004760    4    BOLT M8×30(DACROMET)    GB/T16674.1-2004

3 805301414    3    WASHER 22    Q/SC1294-2000

4 803104023    2    SPLICE

5 803105415    2    SPLICE

6 252904201    1    TRANSITION JOINT

252115196 MANUAL CONTROL BRAKE VALVE ASSY

1

2

3    5

4

接    接    接

气    制    切

制    动    断

动    气    气

阀    缸    缸

252115196 MANUAL CONTROL BRAKE VALVE ASSY

252119976 BRAKING SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252115198    1    MANUAL CONTROL BRAKE VALVE ASSEMBLY    346

2 252115088    1    HOSE ASSEMBLY

3 252115090    1    HOSE ASSEMBLY

4 803175896    3    SPLICE

5 252115099    1    HOSE ASSEMBLY

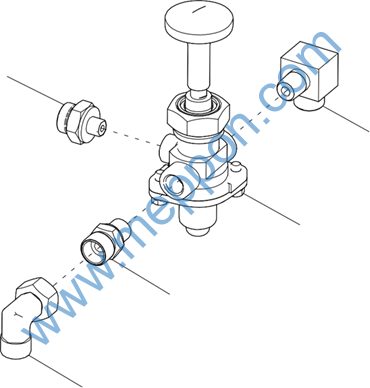

252115198 MANUAL CONTROL BRAKE VALVE ASSEMBLY

5

1

2

3

4

252115198 MANUAL CONTROL BRAKE VALVE ASSEMBLY

252115196 MANUAL CONTROL BRAKE VALVE ASSY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252115131    1    SPLICE

2 800901151    1    BRAKE GOVERNOR

3 803165999    1    SPLICE

4 803107607    1    SPLICE

5 803170740    1    SPLICE

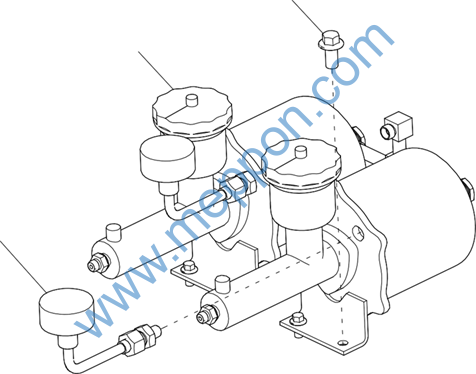

252120035 BOOSTER CYLINDER ASSY

3

2

1

252120035 BOOSTER CYLINDER ASSY

252119976 BRAKING SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252907708    2    VENTILATOR ASSY    350

2 252120036    1    BOOSTER PUMP UNIT    352

3 805004770    4    BOLT M10×20(DACROMET)    GB/T16674.1-2004

252907708 VENTILATOR ASSY

1

2

4

3
