252910976 FIXED STEERING PIN ASSY

252911582 FRONT FRAME SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 805048032    2    BOLT M16×25 (DACROMET)    GB/T16674.1-2004

2 253102301    2    SPACER

3 252112982    2    KING PIN

4 269900185    6    ADJUSTING GASKET

252116536 HYDRAULIC SYSTEM

4

3

2

6

5    1

252116536 HYDRAULIC SYSTEM

252116885 50GNV(I) WHEEL LOADER

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252116836    1    WORKING HYDRAULIC SYSTEM (1)    414

2 252115450    1    WORKING HYDRAULIC SYSTEM (2)    456

3 252911914    1    STEERING HYDRAULIC SYSTEM    478

4 252116537    1    OPERATE SYSTEM    510

5 252116539    1    ARTICULATED PIPELINE    536

6 252116540    1    CENTRAL PRESSURE MEASUREMENT SYSTEM    568

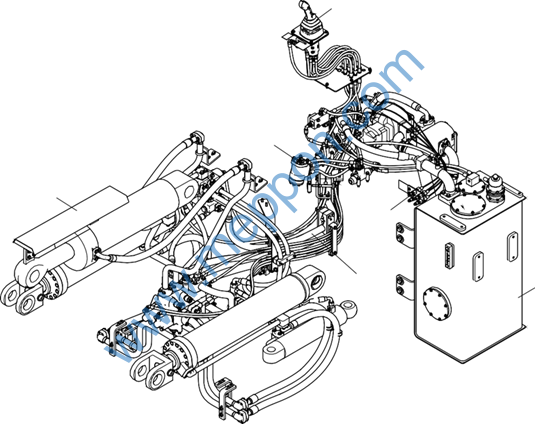

252116836 WORKING HYDRAULIC SYSTEM (1)

15

16    17

10    6

7

9

1    11    12

13

18

8

2

3    5

4

14

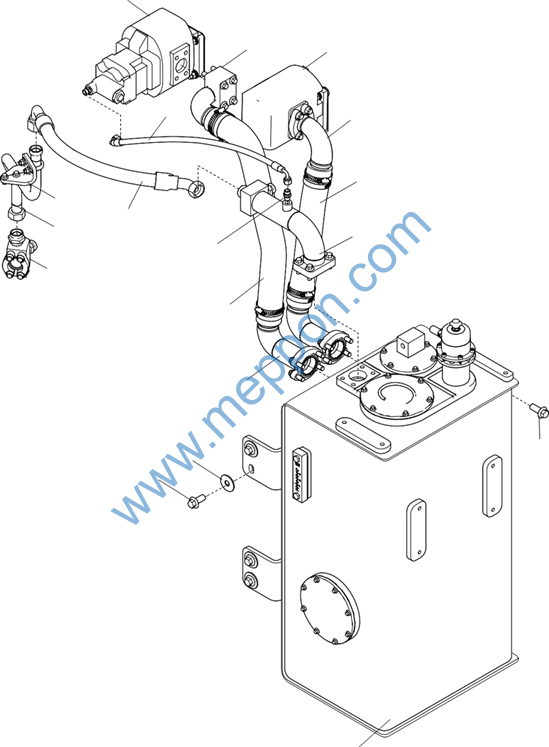

252116836 WORKING HYDRAULIC SYSTEM (1)

252116536 HYDRAULIC SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252909517    1    OIL RETURN PIPE

2 253007816    2    FUEL TANK SUCTION STEEL PIPE ASSY    416

3 805338273    8    SPRING WASHER 16    GB/T96.1-2002

4 805048033    4    SLEEVE,SCREW,&NUT SUB-ASSY METRIC M16×35    GB/T16674.1-2004

5 805048034    4    BOLT M16×40    GB/T16674.1-2004

6 252911953    1    STEERING PUMP OIL SUCTION STEEL PIPE ASSY    420

7 252911949    1    STEERING PUMP OIL SUCTION HOSE ASSY    424

8 252911954    1    WORKING PUMP OIL SUCTION HOSE ASSY    426

9 252911838    1    OIL RETURN STEEL PIPE FIXING ASSY    428

10 803309315    1    HOSE ASSEMBLY

11 803413832    1    HOSE ASSEMBLY

12 252116835    1    FUEL TANK RETURN STEEL PIPE ASSY    430

13 803103341    1    SPLICE

14 252917751    1    HYDRAULIC OIL TANK ASSEMBLY    432

15 252911952    1    P7260-100/10WORKING PUMP ASSY    440

16 252911974    1    WORKING PUMP OIL SUCTION STEEL PIPE ASSY    446

17 251808358    1    STEERING PUMP ASSY    448

18 252116834    1    OIL RETURN CONNECTOR BLOCK ASSY    452

253007816 FUEL TANK SUCTION STEEL PIPE ASSY

252116836 WORKING HYDRAULIC SYSTEM (1)

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252911084    1    FLANGE    418

2 253007814    1    FUEL TANK SUCTION STEEL PIPE

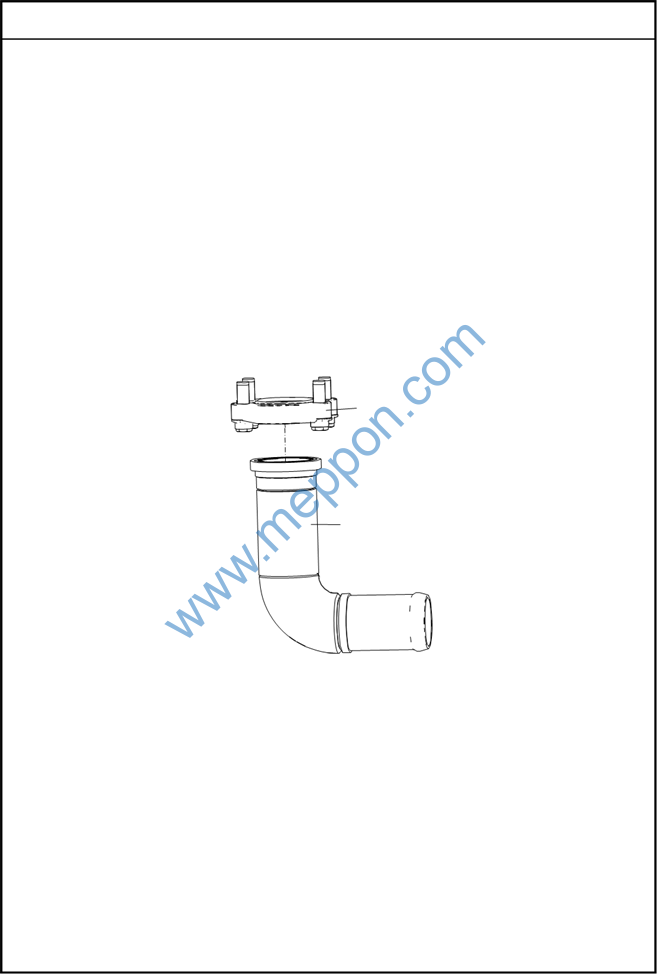

252911084 FLANGE

2

1

3

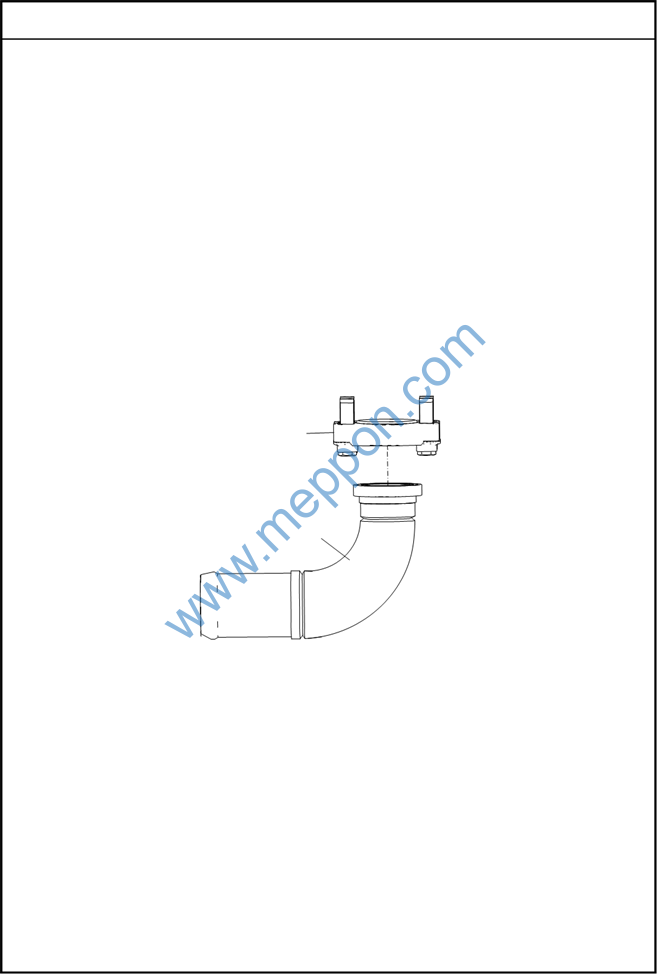

252911084 FLANGE

253007816 FUEL TANK SUCTION STEEL PIPE ASSY

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803164258    1    FLANGE

2 805048017    4    BOLT M12×35 (DACROMET)    GB/T16674.1-2004

3 803401136    1    ORING56.74×3.53    228N552-90
