XCMG ZL50GN WHEEL LOADER PARTS MANUAL 43
|

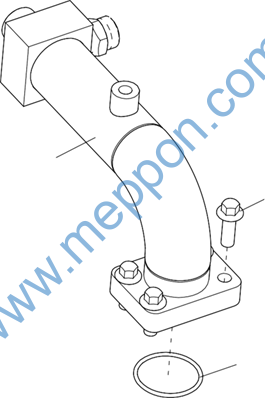

252911953 STEERING PUMP OIL SUCTION STEEL PIPE ASSY 252116836 WORKING HYDRAULIC SYSTEM (1) |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
2 252909513 1 STEERING PUMP OIL SUCTION STEEL PIPE |
|
252911076 FLANGE |
|
1
3 |
|

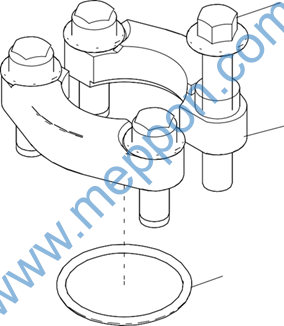

252911076 FLANGE 252911953 STEERING PUMP OIL SUCTION STEEL PIPE ASSY |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 803164240 1 FLANGE |
|
2 805048017 4 BOLT M12×35 (DACROMET) GB/T16674.1-2004 |
|
3 803401133 1 ORING47.22×3.53 225N552-90 |
|
252911949 STEERING PUMP OIL SUCTION HOSE ASSY |
|
2 |
|

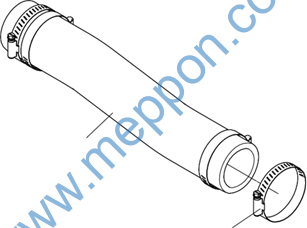

252911949 STEERING PUMP OIL SUCTION HOSE ASSY 252116836 WORKING HYDRAULIC SYSTEM (1) |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 252911741 1 STEERING PUMP OIL SUCTION HOSE |
|
2 801902715 4 HOSE CLAMP B52-76 QC/T619-1999 |
|
252911954 WORKING PUMP OIL SUCTION HOSE ASSY |
|
2 |
|
252911954 WORKING PUMP OIL SUCTION HOSE ASSY 252116836 WORKING HYDRAULIC SYSTEM (1) |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 801902715 4 HOSE CLAMP B52-76 QC/T619-1999 |
|
2 252911742 1 WORKING PUMP OIL SUCTION HOSE |
|
252911838 OIL RETURN STEEL PIPE FIXING ASSY |
|
1
3
4 |
|
252911838 OIL RETURN STEEL PIPE FIXING ASSY 252116836 WORKING HYDRAULIC SYSTEM (1) |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 251805877 1 U-BOLT |
|
2 805238533 2 NUT 10 GB/T6177.1-2000 |
|
3 252911563 1 BRACKET |
|
4 805004770 2 BOLT M10×20(DACROMET) GB/T16674.1-2004 |
|
252116835 FUEL TANK RETURN STEEL PIPE ASSY |
|
2
3 |
