XCMG ZL50GN WHEEL LOADER PARTS MANUAL 44
|
252116835 FUEL TANK RETURN STEEL PIPE ASSY 252116836 WORKING HYDRAULIC SYSTEM (1) |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 252116865 1 FUEL TANK RETURN STEEL PIPE |
|
2 805048017 4 BOLT M12×35 (DACROMET) GB/T16674.1-2004 |
|
3 803401136 1 ORING56.74×3.53 228N552-90 |
252917751 HYDRAULIC OIL TANK ASSEMBLY
11
3
7
5 10
8 14
2
1 4
9 13
6
12
|
252917751 HYDRAULIC OIL TANK ASSEMBLY 252116836 WORKING HYDRAULIC SYSTEM (1) |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
2 803164214 1 LIQUID LEVEL METER |
|
252917978 HYDRAULIC OIL TANK ASSEMBLY |
|
7 5 11
14 8
2 1
7 4
13 9 6 12 |
|
252917978 HYDRAULIC OIL TANK ASSEMBLY 252917751 HYDRAULIC OIL TANK ASSEMBLY |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 252917754 1 BODY OF THE OIL TANK |
|
2 803164214 1 LIQUID LEVEL METER |
|
3 252913563 1 COVER |
|
4 251808558 1 COVER |
|
5 252911770 1 HYDRAULIC OIL TANK LEAKAGE PORT WELDMENT |
|
6 252911768 1 COVER |
|
7 803401168 2 ORING164.69×3.53 260N552-90 |
|
8 803401156 1 ORING120.24×3.53 248N552-90 |
|
9 803401148 1 ORING94.84×3.53 240N552-90 |
|
10 805004756 26 BOLT M8×20 (DACROMET) GB/T16674.1-2004 |
|
12 803166450 1 END CAP |
|
13 250200145 1 MAGNET |
|
14 803164329 1 FILTER |
|
|
|

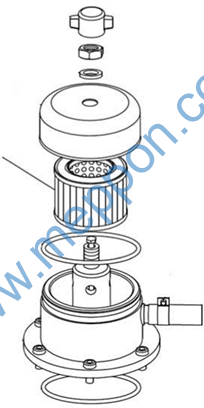

251807810 VENTILATOR VALVE ASSY 252917751 HYDRAULIC OIL TANK ASSEMBLY |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 803086817 1 AIR FILTER ELEMENT |
|
|
|
251807810 VENTILATOR VALVE ASSY 252917751 HYDRAULIC OIL TANK ASSEMBLY |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 803086817 1 AIR FILTER ELEMENT |
|
2
3 |
