SHANTUI L39-B3 wheel loader parts catalog 03
|
序号 NO. |
部件号 PART NO. |
零件名称 PART NAME |
备注 REMARKS |
数量 QTY |
|
1
2
3
4 |
1455-05B-01000
1434-05A-01000 GB5783-M6X16 GB93-6 |
油门踏板 Accelerator pedal 油门操纵软轴 Accelerator flexible shaft 螺栓M6X16 Bolt 垫圈6 Washer |
612600140161 |
1
1
3
3 |
|
序号 NO. |
部件号 PART NO. |
零件名称 PART NAME |
备注 REMARKS |
数量 QTY |
|
|
1 |
1436-03A-01000 |
散热器总成 |
Radiator |
1 |
|
|
2 |
1436-03A-02000 |
回水管 |
Water return pipe |
1 |
|
|
3 |
1436-03A-04000 |
进水管 |
Water inlet pipe |
1 |
|
|
4 |
1434-03-00001 |
减震垫 |
Shock pad |
2 |
|
|
5 |
JB3616.1-57-62 |
双钢丝卡箍57-62 |
Clip |
4 |
|
|
6 |
GB5783-M12X65 |
螺栓M12X65 |
Bolt |
4 |
|
|
7 |
GB6170-M12 |
螺母M12 |
Nut |
4 |
|
|
8 |
GB95-12 |
垫圈12 |
Washer |
8 |
|
|
9 |
GB93-12 |
弹簧垫圈12 |
Spring washer |
4 |
|

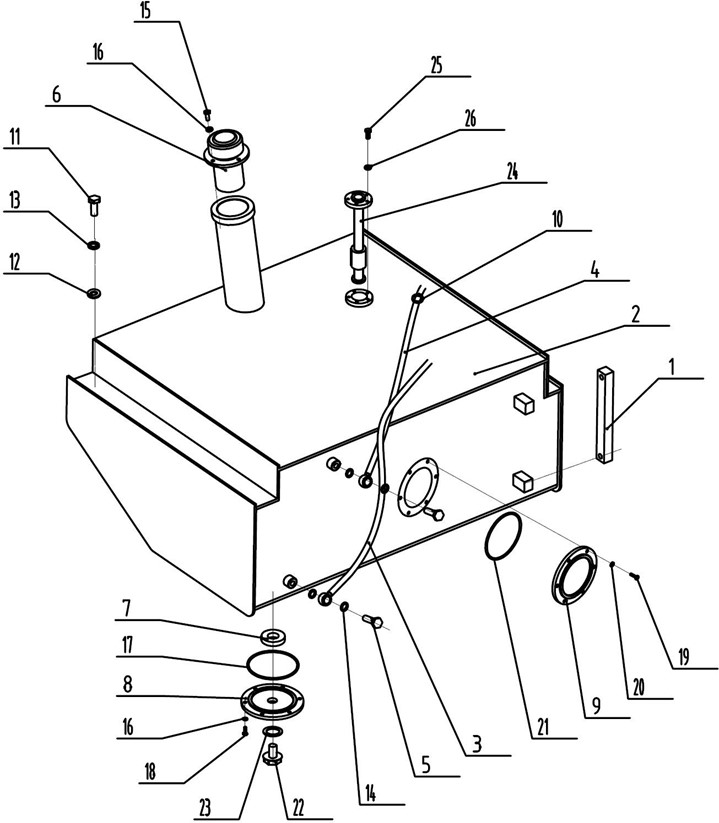

FIG.3 Fuel Oil Tank Assembly
|
序号 NO. |
部件号 PART NO. |
零件名称 PART NAME |
备注 REMARKS |
数量 QTY |
|
0 |
1434-04A-A0000 |
燃油箱总成 Fuel tank assembly |
1 |
|
|
1 |
1434-04-01000 |
液位计 Pointer |
YWZ-300 |
1 |
|
2 |
1434-04-02000 |
燃油箱体 Fuel tank case |
DG938Ⅲ-01201 |
1 |
|
3 |
1434-04A-01000 |
燃油吸油管 Oil suction pipe |
1 |
|
|
4 |
1434-04A-02000 |
燃油回油管 Oil return pipe |
1 |
|
|
5 |
1455-04-00004 |
铰接螺栓 Hollow bolt |
ZL30GⅡ-01205 |
2 |
|
6 |
1455-04-02000 |
滤网总成 Filter screen assembly |
QL-10-00 |
1 |
|
7 |
1455-60-00002 |
磁铁 Magnet |
ZL30GⅡ-01203 |
1 |
|
8 |
1434-04-00002 |
法兰盘 Flange disc |
DG938Ⅲ-01203 |
1 |
|
9 |
1434-04-00003 |
盖 Cover |
ZL30GⅡ-01211 |
1 |
|
10 |
JB3616.1-24-28 |
双钢丝卡箍24-28 Clamp |
1 |
|
|
11 |
GB5783-M16X55 |
螺栓M16X55 Bolt |
4 |
|
|
12 |
GB95-16 |
垫圈16 Washer |
4 |
|
|
13 |
GB93-16 |
弹簧垫圈16 Spring washer |
4 |
|
|
14 |
07303-01420 |
密封垫14 Sealing gasket |
4 |
|
|
15 |
GB5783-M8X16 |
螺栓M8X16 Bolt |
4 |
|
|
16 |
GB93-8 |
弹垫8 Spring washer |
10 |
|
|
17 |
GB3452.1-109X3.55 |
O型圈109X3.55 O-ring |
1 |
|
|
18 |
GB5783-M8X20 |
螺栓M8X20 Bolt |
6 |
|
|
19 |
GB5783-M10X25 |
螺栓 M10X25 Bolt |
10 |
|
|
20 |
GB93-10 |
弹簧垫圈 10 Spring washer |
10 |
|
|
21 |
GB1235-180X5.7 |
O型圈180X5.7 O-ring |
1 |
|
|
22 |
JB1000-M27X2 |
螺塞M27X2 Screw plug |
1 |
|
|
23 |
07303-02735 |
密封垫27 Sealing ring |
1 |
|
|
24 |
D2330-41800 |
油位传感器 Oil sensor |
1 |
|
|
25 |
GB93-5 |
弹簧垫圈 5 Spring washer |
5 |
|
|
26 |
GB823-M5X14 |
螺钉M5X14 Screw bolt |
5 |

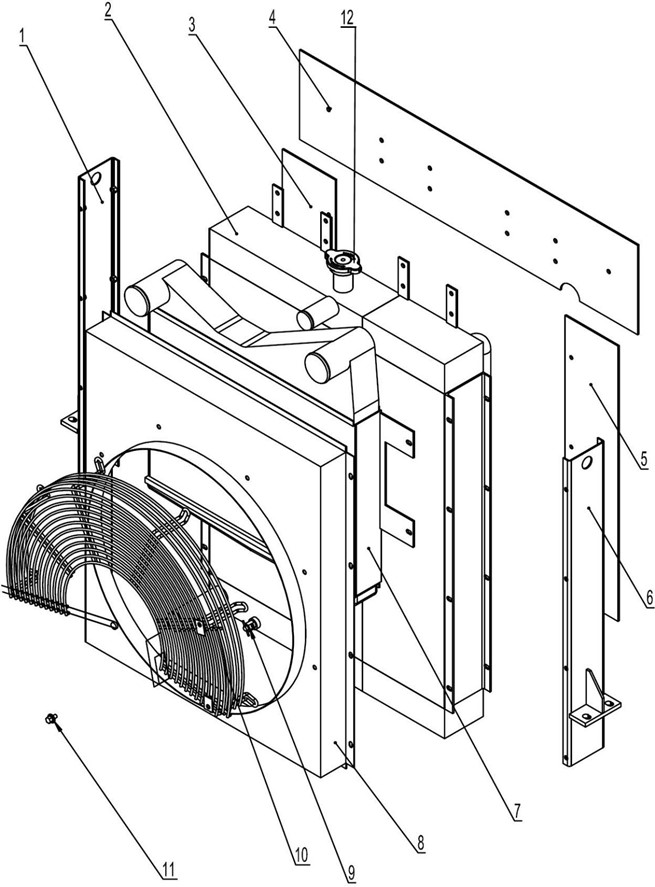

FIG.4 Radiator Tank Assembly
|
序号 NO. |
部件号 PART NO. |
零件名称 PART NAME |
数量 QTY |
|
0 |
1436-03A-01000 |
散热器 Radiator |
1 |
|
1 |
1436-03A-01000-1301400 |
左侧板分总成 Left side plate |
1 |
|
2 |
1436-03A-01000-1301100 |
芯体总成 Core body assembly |
1 |
|
3 |
1436-03A-01000-1301403 |
侧胶板 Side plate |
1 |
|
4 |
1436-03A-01000-1301203 |
上胶板 Upper rubber plate |
1 |
|
5 |
1436-03A-01000-1301503 |
侧胶板 Side plate |
1 |
|
6 |
1436-03A-01000-1301500 |
右侧板分总成 Right side plate |
1 |
|
7 |
1436-03A-01000-1301200 |
中冷器分总成 Core body assembly |
1 |
|
8 |
1436-03A-01000-1301600 |
导风罩 Wind scooper |
1 |
|
9 |
RD |
放水开关 Water release switch |
1 |
|
10 |
DG938H-01400D-1301700 |
护网 Protecting wire net |
1 |
|
11 |
GB5783-M8X20 |
螺栓M8X20 Bolt |
30 |
|
12 |
JBT2292-Ⅱ-0.9 |
复式加水口盖Ⅱ型-0.9 Double water in-let cover |
1 |

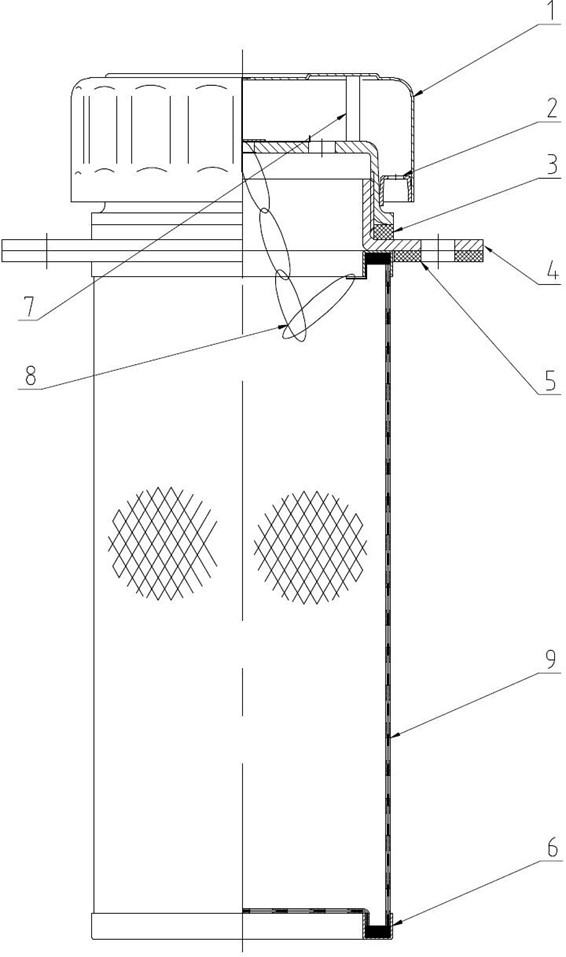

FIG.5 Oil Filling Filter Assembly
