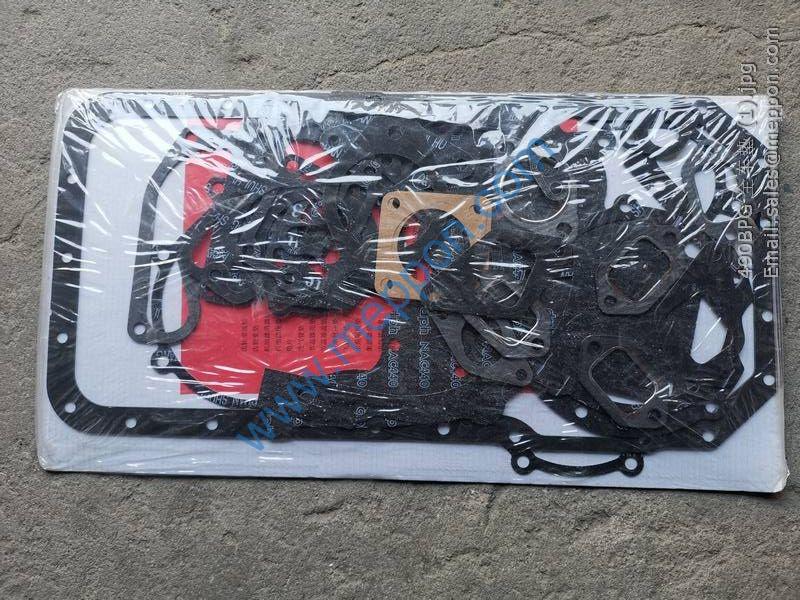

490BPG xinchai repair kits

Description

490BPG xinchai repair kits

AZ2203210052 小盖壳体总成(12挡双杆,铝小盖)
WG2222210030 小盖壳体(12挡,双杆,铝壳)
WG2229210001 衬套 Bushing
WG2229210006 紧定螺钉 Screw
WG2229002520 复合衬套SF2 25×28×20 Bushing
WG2229210004 定中座环 Ring
WG2229210003 定中弹簧( 高档侧) Spring
WG2229210005 间隔套 Sleeve
AZ9007970001 LOCTITE粘结剂 LOCTITE
WG2229210036 定位导套 Sleeve
WG2229210050 小盖纸垫 Gasket
WG2214210007 互锁叉 Fork
WG2229210015 自锁弹簧 Spring
WG2229210011 弹簧挡片 Spacer
WG2212210002 自锁销轴 Pin
WG2229210008 扇形自锁块 Block
Q5280632 弹性圆柱销 Pin
WG2229210014 传感器驱动环 Ring
WG2229210017 端盖衬垫 Gasket
AZ2203210032 小盖端盖总成(双杆,铝壳)
Q901 常开式通气塞 Breather
WG2222210032 小盖端盖(双杆摇臂侧) Cover
WG2229002520 复合衬套SF2 25×28×20 Bushing
WG9003072501 端盖内油封 Oil seal
WG9003072502 端盖外油封 Oil seal
Q1420825 六角头螺栓和弹簧垫圈组合件 Bolt assembly
WG2229210026 防尘罩 Dust shield
Q150B1040TF2 六角头螺栓 Bolt
WG2214210013 摇臂 Rocker arm
Q41810 波形弹性垫圈 Wave washer
Q340B10T13F2 I型六角螺母 Nut
WG2229210040 选挡杆总成 Rod assembly
WG2229210012 驱动销 Pin
AZ9003343178 滚针P3×17.8 GB309 Needle
AZ2203210051 换档轴总成(双杆) Shaft assembly
WG2212210009 换挡轴(双杆) Shaft
Q5280632 弹性圆柱销 Pin
WG2229210060 定位环 Ring
WG2214210008 换挡头 Block
WG2229210009 销 Pin
WG2229270003 选档支撑轴 Shaft
WG2229210041 支撑杆总成 Rod assembly
Q43112 轴用弹性挡圈 Circlip
Q72220 碗形塞片 Shim
Q1461085 六角头螺栓、弹簧垫圈和平垫圈组合件 Bolt assembly
WG2229210022 隔环 Spacer
WG2229210024 端盖衬垫 Gasket
WG2229210023 小盖端盖(范围档锁侧) Cover
Q40308 弹簧垫圈 Spring washer
Q150B0820 六角头螺栓 Bolt
WG2229210004 定中座环 Ring
WG2229210021 定中弹簧(低档侧) Spring
190003960005 圆柱头内六角螺塞 Plug
Q72320 密封垫圈 Gasket
WG2229210020 范围档锁弹簧 Spring
WG2229210018 范围档锁销 Pin
AZ9007970242 螺纹紧固胶LOCTITE242 Thread glue

AZ2203220001 倒挡拨叉轴总成 Shaft assembly
WG2214220001 拨叉 Fork
WG2229220002 销 Pin
WG2212220001 倒挡拨叉轴 Shaft
WG2214220002 倒挡拨块 Block
WG2229220001 销 Pin
AZ2203220002 一、二挡拨叉轴总成 Shaft assembly
WG2214220001 拨叉 Fork
WG2229220002 销 Pin
WG2212220002 一、二挡拨叉轴 Shaft
WG2214220003 前进挡拨块 Block
WG2229220001 销 Pin
AZ2203220003 三、四挡拨叉轴总成 Shaft assembly
WG2214220003 前进挡拨块 Block
WG2229220001 销 Pin
WG2214220001 拨叉 Fork
WG2229220002 销 Pin
WG2212220003 三、四挡拨叉轴 Shaft

WG2229250015 锁止销 Pin
WG2229250004 弹簧 Spring
WG2229250017 衬套 Bushing
WG9003071700 O形圈26500170 GB3452.1 O-ring
WG2203250010 气控锁止阀总成 Air control valve assembly
WG2229250005 双H阀衬垫 Gasket
WG2203250003 双H阀总成 Valve
Q72314 密封垫圈 Gasket
190003962621 空心螺栓 Hollow bolt
Q218B0880 内六角圆柱头螺钉 Screw
Q40308 弹簧垫圈 Spring washer
WG2203250022 12挡范围挡成型软管总成(高挡) Hose
WG2203250021 12挡范围挡成型软管总成(低挡) Hose
