Description

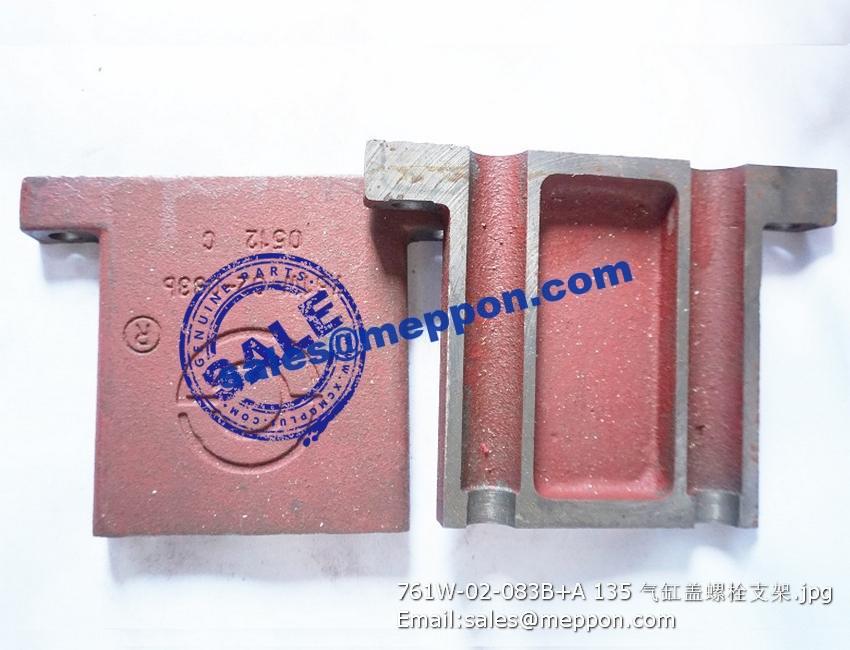

761W-02-083B+A 6135K 4135K CYLINDER HEAD BOLT BRACKET PS07244 SP100960
D04-134-902 气缸盖罩壳 VALVE COVER 1
D04-114-900 气门弹簧上座 VALVE SPRING RETAINER 24
D04-115-900 气门锁夹 VALVE COLLET 48
D04-113-900 气门弹簧 VALVE SPRING 24
D04-105-900 气门杆油封 VALVE STEM SEAL 24
D04-135-901 气缸盖罩壳密封垫 VALVE COVER SEAL 1
S00000060 缸盖罩壳减振垫部件 CUSHION ASSY, VALVE COVER 14
D04-139-02 加油盖密封垫片 GASKET, OIL FILLER COVER 1
D04-138-01A 加油盖 COVER, OIL FILLER 1
D04-012-900 出气管焊接部件 OUTLET PIPE ASSY (WELDED) 1
D04-334-900 垫片 GASKET 1
B00002132 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE – Q/SC622-M8*16 2
D04-328-902 中间罩壳 INTERMEDIATE COVER 1
B00002054 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE – Q/SC622-M12*35 4
D04-143-900 发动机后吊环 ENGINE LIFTING EYE, REAR 1
D04-015-900 摇臂轴及摇臂座装配部件 ROCKER ARM SHAFT AND SUPPORT ASSEMBLY 1
B00002032 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE – Q/SC622-M10*90 12
B00002134 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE – Q/SC622-M8*20 1
B00002161 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE – Q/SC622-M8*70 7
D04-307-901 进气管螺栓 BOLT, AIR INTAKE PIPE 1
D04-307-900 进气管螺栓 BOLT, AIR INTAKE PIPE 5
D04-307-01A 进气管螺栓 BOLT, AIR INTAKE PIPE 6
B00002001 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE – Q/SC622-M10*30 2
D04-001-900 气缸盖部件 CYLINDER HEAD ASSY 1
D04-329-900 进气门桥 VALVE BRIDGE, INTAKE 6
D03-112-01 螺栓 BOLT 6
B00000973 球面垫圈 SPHERICAL WASHER – GB/T849-8 6
D04-147-900 喷油器压板 CLAMP, INJECTOR 6
D04-330-900 排气门桥 VALVE BRIDGE, EXHAUST 6
D04-131-902 进气管垫片 GASKET, AIR INTAKE PIPE 1
D04-131-901 进气管垫片 GASKET, AIR INTAKE PIPE 5
D04-152-900 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2
D04-304-900 调温器垫片 GASKET, THERMOSTAT 1
D02A-311-02 六角法兰面螺栓(M8*95) HEXAGON BOLTS WITH FLANGE 2
D04-110-901 进气门 VALVE, INTAKE 12
D04-111-900 排气门 VALVE, EXHAUST 12
D04-128-900 推杆 PUSH ROD 12
S00000500 排气管垫片 GASKET, EXHAUST MANIFOLD 6
D04-145-30A 排气管螺栓 BOLT EXHAUST MANIFOLD 12
D04-127-30C 挺柱 TAPPET 12
B00002145 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE – Q/SC622-M8*40 7
D04-131-900 进气管垫片 GASKET, AIR INTAKE PIPE 1
D04-142-900 前吊环 ENGINE LIFTING EYE, FRONT 1
D04-337-901 中间罩壳密封垫 ROCKER ARM CASE SEAL 1
D02A-309-01 圆柱闷头 PIUG 3
D04-104-900 气门导管 VALVE GUIDE 24
D04-321-900 喷油器隔套 SPACING SLEEVE, INJECTOR 6
D04-323-01 O型圈 O-RING 12
D04-102-901 进气门座圈 VALVE SEAT INERT, INTAKE 12
D04-103-900 排气门座圈 VALVE SEAT INSERT, EXHAUST 12
D04-167-01A 闷头（φ35） PIUG 6
