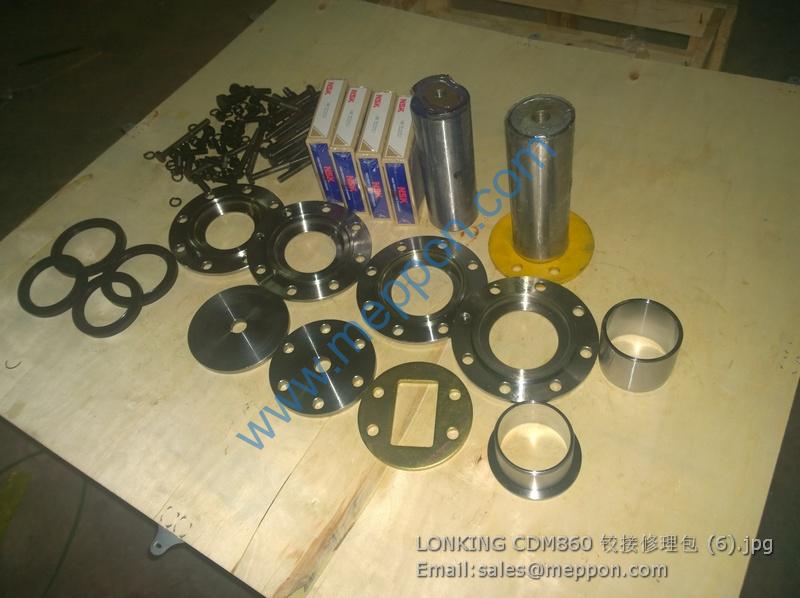

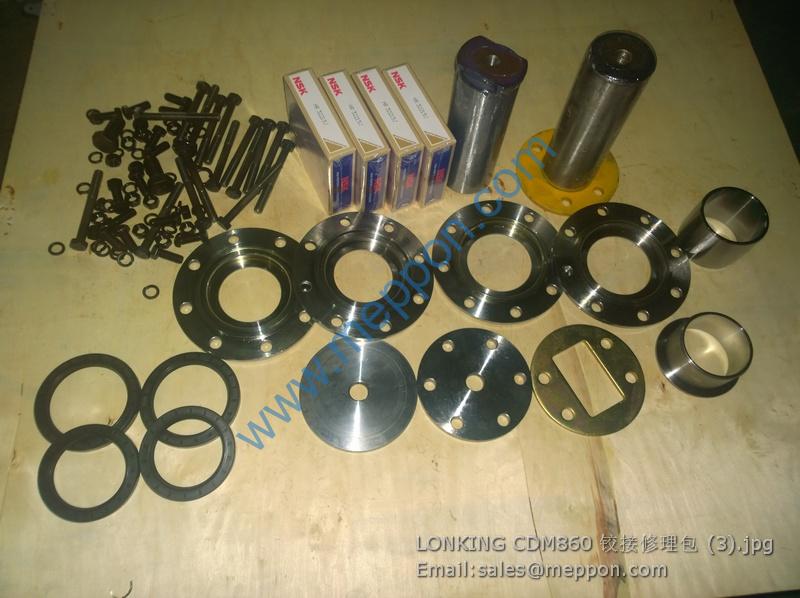

LONKING CDM860 wheel loader joint pin kits

30810000874 前车架焊合 Front frame welding 1
51204101014 螺栓M10x20 BoltM10x20 8.8 8 GB/T5783
51401100107 垫圈10 Washer 10 10 GB/T93
51421100115 垫圈10 Washer 10 8 GB/T97.1
30810100026 盖板 Cover plate 1
60907000001 扶手总成 Handrail assembly 1
51307001019 螺母M10 NutM10 8 2 GB/T6170
30890900239 前转向销轴焊合 Front steering pin shaft welding 2
51421130115 垫圈16 Washer 16 4 GB/T97.1
51401130107 垫圈16 Washer 16 4 GB/T93
51204132514 螺栓M16x35 BoltM16x35 8.8 4 GB/T5783
30810000719 右前转向销注油管焊合 Welding of the filler pipe of right front steering pin 1
30810000720 左前转向销注油管焊合 Welding of the filler pipe of left front steering pin 1
60980000179 垫圈 Washer 28
30893100787 通油螺栓 Oil Bolt 12
30810000762 翻斗缸后销轴焊合 Welding of rear pin shaft of bucket cylinder 1
30811103029 垫圈 Washer 5
51204151414 螺栓M 20×40 Bolt M20x40 8.8 9 GB/T5783

30810000876 翻斗缸后销轴注油管焊合 Filler pipe welding of tilt cylinder pin shaft 1
60911010971 注油管夹总成 Filler pipe clip assembly 4
51421090115 垫圈8 Washer 8 6 GB/T97.1
51401090107 垫圈8 Washer 8 6 GB/T93
51204091014 螺栓M8x20 Bolt M8x20 8.8 6 GB/T5783
30890900237 后转向销轴焊合 Rear steering pin shaft welding 2
51204111214 螺栓M12x30 BoltM12x30 8.8 14 GB/T5783
51401110107 垫圈12 Washer 12 30 GB/T93
30810100704 压板 Press plate 2
30810102124 下较接销 Lower articulated pin 1
30810100028 上轴套 Upper shaft sleeve 1
51307001119 螺母M12 NutM12 8 16 GB/T6170
30810100703 上轴承盖 Upper bearing cover 2
60980000184 调整垫 Adjusting pad 2
56161012401 密封圈 FB75x100x12 Seal ring FB75x100x12 2 GB/T13871.1
52324001301 轴承32215 Bearing 32215 2 GB/T297
30810100702 下轴承盖 Lower bearing cover 2
51203112714 螺栓 M12x110 BoltM12xH0 8.8 16 GB/T5782

30861100128 下轴套 Lower shaft sleeve 1
60980000191 调整垫圈 Adjusting washer 1
51401150107 垫圈20 Washer 20 11 GB/T93
60903000037 较接销 Articulated pin 1
30810100705 端盖 End cover 1
30810000875 后车架焊合 Rear frame welding 1
30810102929 盖护板支架 Cover plate bracket 2
51204101214 螺栓M10x30 BoltM10x30 8.8 4 GB/T5783
30810100789 线夹 Wire clamp 2
30810102477 倒车蜂鸣器固定板 Fixed plat of back buzzer 1
30810100600 电源总开关固定板 Power switch Mounting plate 1
51204081014 螺栓M6x20 Bolt M6x20 8.8 2 GB/T5783
51401080107 垫圈6 Washer 6 2 GB/T93
51420080121 垫圈6 Washer 6 2 GB/T96.1
60980000166 后车架橡胶护套 Rubber jacket of rearframe 4
30810000670 摆动架注油管焊合二 Oil charging pipe welding of swing span 2 1
30863900001 摆动架焊合 Welding of swing span 1
30810000669 摆动架注油管焊合一 Oil charging pipe welding of swing span 1 1

30810101445 铜垫 Coppergasket 2
60905000048 副车架销轴套 Auxiliary frame pin shaft sleeve 2
30810000449 摆动架销焊合 Welding of swing span pin 2
51421150115 垫圈20 Washer 20 4 GB/T97.1
51139260905 螺钉M 20×70 Screw M20x70 8.8 2 GB/T70.1
30810100548 铁板 Iron plate 1
30810100547 套 Sleeve 1
30810100546 缓冲块 Bump block 1
30890000062 动臂上销轴焊合 Welding of boom upper pin shaft 2
30810101359 垫板 Backing plate 2
30810000817 动臂上销轴注油管焊合（右） Welding of filler pipe of pin shaft of boom (right) 1
30810000816 动臂上销轴注油管焊合（左） Welding of filler pipe of pin shaft of boom (left) 1
56201000301 油杯M10x1 Oil cup M10x1 11 JB/T7940.1
30810102330 油嘴螺栓 flow nipple bolt 2
30810000877 动臂缸后销轴焊合 Welding of boom cylinder rear pin shaft 2
30888100154 销轴 pin shaft 1
51453270107 挡圈30 Circlip 30 1 GB/T894.1
30861000030 车架固定杆焊合 Fixed rod welding of frame 1

30890900232 销轴焊合 pin shaft welding 1
51536000101 双层复式弹簧开口销4×44 Double layer compound spring cotter pin 4×44 1
56202000301 油杯 45°M10x1 Oil cup45oM10x1 2 JB/T7940.2

CDM860.10.01 前车架 Front frame 1
GB/T5783-2000 螺栓 Bolt M10x20 4 8.8
GB/T93-1987 垫圈 Washer 10 4
LG860.10.07 盖板总成 Cover board assembly 1
LG853.10.03 翻斗缸后销轴焊合 Tilt cylinder rear pin weldment 1
JB/T7940.1-1995 油杯 Oil cup M10x1 11
GB/T5783-2000 螺栓 Bolt M20x35 9 8.8
GB/T93-1987 垫圈 Washer 20 11
GB/T97.1-2002 垫圈 Washer 20 7
LG860.10.05 动臂上销轴焊合 Lift arm upper pin weldment 2
LG855.10 1-001 垫板 Tie plate 2
LG860.10.06 动臂缸后销轴焊合 Lift cylinder rear pin weldment 2
LG855.10.07 后转向销轴焊合 Rear steering pin weldment 2
LG855.10-002 转向缸后垫套 Steering cylinder rear crushion 2
GB/T5783-2000 螺栓 Bolt M16x35 4 8.8
GB/T93-1987 垫圈 Washer 16 12
LG855.10.08 油箱固定座 Oil tank securing seat 2
CDM860.10 I .02 后车架 Rear frame 1

GB/T5783-2000 螺栓 Bolt M6X25 2 8.8
GB/T97.1-2002 垫圈 Washer 6 2
GB/T93-1987 垫圈 Washer 6 2
CDM856E.10 I-002 电源总开关固定板 Main power switch fixed plate 1
LG855.10-003 双变滤清器支架 Filter screen bracket 1
LG860.10.03 副车架 Oscillating suspension 1
LG853.10-018 挡块 Block 8
LG855.10-004 铜垫 Copper pad 2
LG855.10.09 副车架销 Oscillating suspension pin 2
LG855.10.10 副车架注油管1 Oscillating suspension oil filling pipe 1 1
GB/T5782-2000 螺栓 Bolt M12x110 16 8.8
GB/T93-1987 垫圈 Washer 12 22
GB/T6170-2000 螺母 Nut M12 8 8
GB/T297-1994 轴承 Bearing 32215 2
LG853.10-008 端盖 End cover 1
LG853.10-007 较接销 Articulated pin 1
LG853.10-006 压板 Press plate 2
GB/T13871-2007 Fb形油封 FB-type oil seal 75x100x12 2

LG853.10III-003 上轴承盖 Upper bearing cover 2
LG853.10III-002 下轴承盖 Lower bearing cover 2
LG853.10III-001 调整垫 Adjusting pad 二组
LG860.10-004 上轴套 Uppershaftsleeve 1
LG860.10-001 下较接销 Lower articulated pin 1
LG860.10-002 下轴套 Lower shaft sleeve 1
GB/T13871-2007 FB形油封 FB-type oil seal 85x110x12 2
LG855.10.11 前转向销轴焊合 Front steering pin weldment 2
LG860.10.12 右前转向销注油管 Right front steering pin oil filling pipe 1
LG860.10.13 左前转向销注油管 Left front steering oil filling pipe 1
LG860.10-003 胶管保护套 Hose sleeve 2
JB/T7940.2-1995 油杯 Oil cup M10x1 2
GB/T5783-2000 螺栓 Bolt M16x50 4 8.8
LG855.10.14 副车架注油管2 Oscillating suspension oil filling pipe II 1
LG855.10-006 调整垫圈 Adjusting washer _组
LG853.10-022 下端盖 Lower end cover 1
GB/T5783-2000 螺栓 Bolt M12x30 14 8
NTN 轴承 Bearing NTN32215 2

LG855.10-007 副车架销轴套 Oscillating suspension pin sleeve 2
LG853.10-023 线夹 Wire clip 2
GB/T5783-2000 螺栓 Bolt M8x20 2 8.8
GB/T93-1987 垫圈 Washer 8 2
GB/T97.1-2002 垫圈 Washer 8 2
GB/5783-2000 螺栓 Bolt M20x80 2 8.8
LG860.10.15 缓冲块 Bumper block 2

30861900007 前车架焊合 Front frame 1 CDM860.10.01
51204101014 螺栓 Bolt M10 x 20・8.8 4 GB/T5783
51401100107 垫圈 Washer 10 4 GB/T93
30810000004 盖板总成 Cover board 1 LG860.10.07
30890900223 翻斗缸后销轴焊合 Tilt cylinder rear pin weldment 1 LG853.10.03
56201000301 油杯 Oil cup M10 x 1 11 JB/T7940.1
51204153714 螺栓 Cover board M20 x 35・8.8 9 GB/T5783
51401150107 垫圈 Washer 20 11 GB/T93
51421150115 垫圈 Washer 20 7 GB/T97.1
30890000003 动臂上销轴焊合 Lift arm upper pin weldment 2 LG860.10.05
30890900232 销轴焊合 Pin shaft weldment 1 LG853.10.08
51512091605 开口销 Cotter 40 x 40 1 GB/T91
30890000004 动臂缸后销轴焊合 Lift cylinder rear pin weldment 2 LG860.10.06
30861000030 车架固定杆焊合 Fixed rod weldment 1 LG860.10.01.08
30890100512 销 Pin 1 LG853.10.08-002
30890900237 后转向销轴焊合 Rear steering pin weldment 2 LG855.10.07
30810101356 转向缸后垫套 Rear sleeve for steering cylinder 2 LG855.10-002
51204132514 螺栓 Bolt M16 x 35・8.8 4 GB/T5783

51401130107 垫圈 Washer 16 12 GB/T93
30810000562 油箱固定座焊合 Oil tank securing seat 2 LG855.10.08
30862900004 后车架焊合 Rear frame weldment 1 CDM860.10.02
30810101357 双变滤清器支架 Filter screen 1 LG855.10-003
30863900001 摆动架焊合 Oscillating bracket 1 LG860.10.03
30810100192 挡块 Block 8 LG853.10-018
30810101445 铜垫 Copper gasket 2 LG855.10-004
30890900238 摆动架销焊合 Oscillating bracket pin weldment 2 LG855.10.09
30893900216 摆动架注油管1 Oscillating suspension oil filling 1 LG855.10.10 焊合 pipe 1 weldment
51203112714 螺栓 Bolt M12 x 8.8 16 GB/T5782
51401110107 垫圈 Washer 12 22 GB/T93
51307001119 螺母 Nut M12 ・8 8 GB/T6170
52324001301 轴承 Bearing 32215 2 GB/T297
30810100705 端盖 End cover 1 LG853.10-008
60903000037 较接销 Articulated pin 1 LG853.10-007
30810100704 压板 Press plate 2 LG853.10-006
56161012401 密封圈 Seal ring FB75 x 100 x 12 2 GB/T13871.1

30810100703 上轴承盖 Upper bearing cover 2 LG853.10M-003
30810100702 下轴承盖 Lower bearing cover 2 LG853.10M-002
60980000184 调整垫 Adjusting shim 2 LG853.10M ・001
30810100028 上轴套 Upper shaft sleeve 1 LG860.10-004
30810102124 下较接销 Lower articulated pin 1 LG860.10-001
30861100128 下轴套 Lower shaft sleeve 1 LG860.10-002
56161006501 密封圈 Seal ring FB85 x110x12 2 GB/T13871.1
51204111214 螺栓 Bolt M12 x 30・8.8 14 GB/T5783
30890900239 前转向销轴焊合 Front steering pin weldment 2 LG855.10.11
30893900534 钢管焊合 Pipe weldment 1 LG860.10.12
30893900535 钢管焊合 Pipe weldment 1 LG860.10.13
60980000191 调整垫圈 Adjusting washer 1 LG855.10-006
56202000301 油杯 Oil cup 45oM10 x 1 2 JB/T7940.2
51204133314 螺栓 Bolt M16 x 50・8.8 4 GB/T5783
30893900219 摆动架注油管2 Oscillating suspension oil filling 1 LG855.10.14 焊合 pipe 2 weldment
60905000048 副车架销轴套 Oscillating suspension pin sleeve 2 LG855.10-007
30810100789 线夹 Wire clip 2 LG853.10-023

51204091014 螺栓 Bolt M8 x 20・8.8 2 GB/T5783
51401090107 垫圈 Washer 8 2 GB/T93
51421090115 垫圈 Washer 8 2 GB/T97.1
60980000166 后车架橡胶护套 Rubber bush of rear frame 4 CDM858A.10I ・001
30810100797 下端盖 Lower end cover 1 LG853.10-022
30810000197 缓冲块总成 Block 2 LG860.10.16
51139260905 螺钉 Bolt M20 x 70・8.8 2 GB/T70.1
60980000181 轴承 Bearing NTN32215 2 NTN
60919010106 胶管保护套 Hose sleeve 2 LG860.10-003
30810101359 垫板 Shim 2 LG855.10I-001
