Description

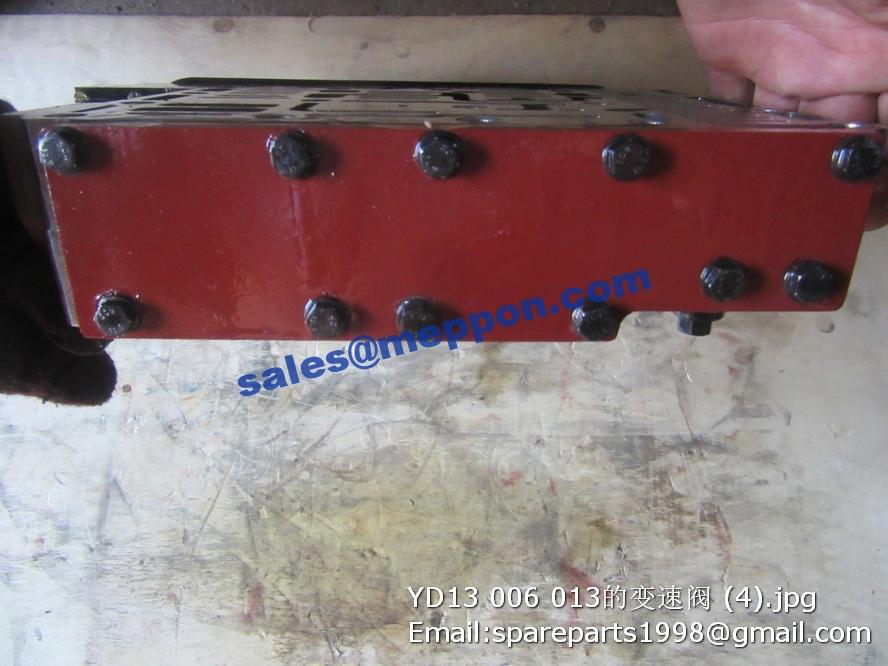

YD13 006 013 800304792 860106189 CONTROL VALVE

1 Operating cable 操纵软轴 Z3(YC).1-5 1 ZL30G
2 Operating cable 操纵软轴 LW330F.1.4 1 LW300F
3 Operating cable 操纵软轴 – 1 ZL50
4 Operating cable 操纵软轴 – 1 LW500F
5 Accelerator control valve 油门操纵阀 XZ1129001 1 ZL30G, LW300F 252600777
6 Accelerator control valve 油门操纵阀 803004130 1 LW500F SL(XZ)-1129002
7 Accelerator control valve 油门操纵阀 XZ1129001 1 ZL50 252600777
8 Oil filter 加油滤芯 ZL40(X).1.3.5A 2 ZL30G ZL40.1.3.5A
9 Oil filter 加油滤芯 XGXL2-10×0.63 2 LW300F ZL40(X).1.3.5A/4120000081/PAF2-0.07-0.75-40F/XGXL2-100.63/4120000452
10 Oil filter 加油滤芯 5002151 2 LW300F
11 Oil filter 加油滤芯 803164217 2 LW500F
12 Oil filter 加油滤芯 PAF2-0.07-0.075-40F 2 ZL50
13 Oil filter 燃油箱滤芯 ZL40.1.3.3A 2 ZL30G 250200471
14 Oil filter 燃油箱滤芯 XGXL5-10×100 2 LW300F 860114659/ZL40A.1.3.3A
15 Oil filter 燃油箱滤芯 803004300 2 LW300F, LW500F XGXL5-10×100
16 Oil filter element 燃油箱滤芯（ WU-25×100-J 2 ZL50
17 Creaser filter element 液压空气滤芯 Z5G.1.1.3.6 2 ZL50
18 Oil filter element element 变速箱滤芯（里面的滤芯） ZL3.3.6 2 ZL30G, LW300F
19 Paper pad 纸垫 Z3.3-15 2 ZL30G, LW300F
20 Pump 齿轮泵 CB32 1 ZL30G, LW300F
21 Paper Cushion 纸垫 ZL20-029020 2 ZL30G №23, 26
22 Paper Cushion 纸垫 ZL40A.30-15 2 ZL50
23 Needle Bearing 滚针轴承4074106 GB289-64 1 ZL30G, LW300F 4074106
24 Elastic Plate 弹性板 YJ315Y-00002 2 LW300F
25 Elastic Plate 弹性板 – 2 ZL30G
26 Elastic Plate 弹性板 – 2 ZL50
27 Elastic Plate 弹性板 – 2 ZW500F
24 Transmission repair kit 变速箱修理包 – 2 ZL30G, LW300F 请确认徐工ZL30, LW300F, ZL50, LW500F
Transmission repair kit 变速箱修理包 – 1 ZL50
Transmission repair kit 变速箱修理包 – 1 LW500F
25 Filter element 变速箱滤芯 WL-100×100-J 2 ZL30G, LW300F
Filter element 变速箱滤芯 – 2 ZL50
Filter element 变速箱滤芯 – 2 LW500F
26 Gasket 垫片 ZL20-030020 2 ZL30G
27 Paper Gasket 纸垫 ZL20-030063 2 ZL30G
28 Clutch disc (outer) 外离合器片 ZL20-032104 18 ZL30G, LW300F
29 Clutch disc (inner) 内离合器片 ZL20-030103 15 ZL30G, LW300F
31 Seal Gasket 密封垫 ZL40A.30-10 2 ZL50
32 Driving plate 倒档一档主动片 ZL40.6.14 8 ZL50
33 Friction plate 摩擦片 ZL40.6.48 8 ZL50
34 Filter element 装载机红光滤芯 250200144 2 LW300F, LW500F, ZL50 ZL40.3.2-2/ZL40A.3.200A/MF (82*45*131)
35 Front Drive Shaft 前传动轴 Z3G.4.1 1 ZL30G L=88, 251900387
36 Front Drive Shaft 前传动轴 1 ZL30G L=32, 251900387
37 Front Drive Shaft 前传动轴 Z3.4.3 1 LW300F
38 Front Drive Shaft 前传动轴 251800154-101148 1 LW500F
39 Front Drive Shaft 前传动轴 252900463 1 L=101,5
40 Front Drive Shaft 前传动轴 9322646 1 L=44
41 Front Drive Shaft 前传动轴 252900464 1 L=50,5
42 Rear Drive Shaft 后传动轴 Z3G.4.2 1 ZL30G L=43,5
43 Rear Drive Shaft 后传动轴 Z3.4.4A 1 LW300F
44 Rear Drive Shaft 后传动轴 251800155-101148 1 LW500F
45 Main Drive Shaft 主传动轴 Z3G.4.3 1 ZL30G L=45
46 Main Drive Shaft 主传动轴 Z3.4.2 1 LW300F
Main Drive Shaft 主传动轴 – 1 ZL50
Main Drive Shaft 主传动轴 – 1 LW500F
47 Universal Joint assy 万向节7126 T160 1 ZL50 G5-7126
– 1 ZL30G
– 1 LW300F
