SHANTUI L55-B5 PARTS CATALOG 35

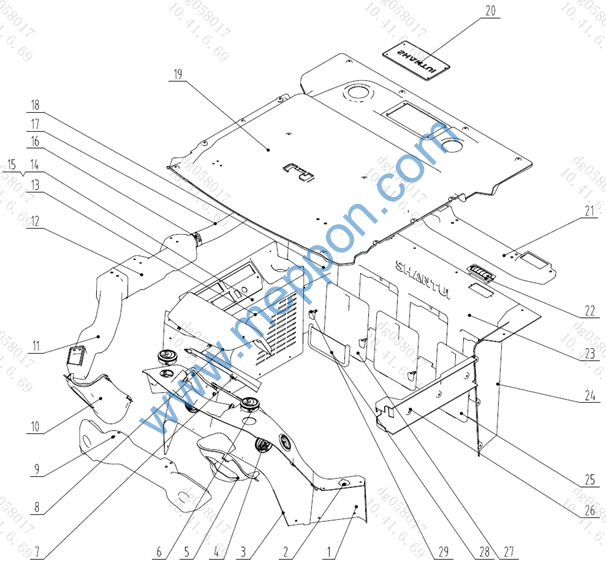

第38.1图
内饰件总成
FIG.38 .1 Decoration Assembly
序号 NO. |
部件号 PART NO. |
零件名称 PART NAME |
数量 QTY |
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 |
1472-91-A0000 1472-91-01004 1472-91-01017 1472-91-01003 1472-91-01022 1472-91-01005 1472-91-01024 1472-91-01016 1472-91-01015 1472-91-01018 1472-91-01006 1472-91-01019 1472-91-01020 1472-91-01011 1472-91-01010 1472-91-01030 1456-91-00017 1456-91-00016 1472-91-01013 1472-91-01001 1472-91-01002 1472-91-01021 1472-91-01025 1472-91-01007 1472-91-01012 1472-91-01009 1472-91-01014 1472-91-01008 1472-91-01026 1472-91-01023 |
内饰总成 Decoration assembly 左前内饰 L/F decoration 水壶盖 The kettle lid 前围 Front decoration 大圆出风口 Large round air outlet 左分风盒 Left wind box 小圆出风口 Small round air outlet 仪表支撑架 Instrument support frame 仪表罩 Instrument mask 前围下部风道 Lower front perimeter air duct 右分风盒 Right wind box 右前风道 R/F air duct 右侧风道 Right air duct 右侧围 Right decoration 右侧上罩 Right upper decoration 操纵面板 Control panel 卡箍 Lathedog 波纹管 Corrugated pipe 右侧后部内饰 R/R decoration 顶棚 Dome decoration 顶棚盖板 Ceiling panel 后围风道 Rear air duct 长出风口 Long air outlet 后围 Rear decoration 左后围 L/R decoration 小挡板 Small baffle 左门内饰 Left doordecoration 大挡板 Large baffle 网兜 String bag 挡板锁 Baffle lock |
1 1 1 2 1 4 1 1 1 1 1 1 1 1 1 2 1 1 1 1 1 2 1 1 1 1 2 1 3 |

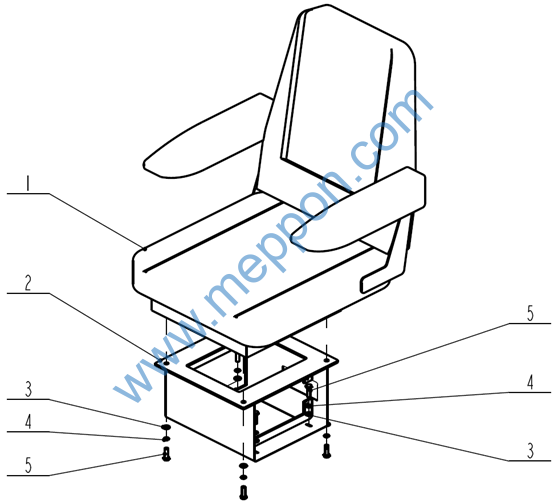

第38.2图
座椅总成
FIG.38.2 Seat Assembly
序号 NO. |
部件号 PART NO. |
零件名称 PART NAME |
数量 QTY |
0 1 2 3 4 5 |
1457-53F-A0000 1457-53-01000 1456-53B-04000 GB96.1-8 GB93-8 GB5783-M8X25 |
座椅总成 Seat assembly 支座 Seat bracket 座椅 Seat 平垫8 Washer 弹垫8 Spring washer 六角螺栓M8X25 Bolt |
1 1 1 8 8 8 |

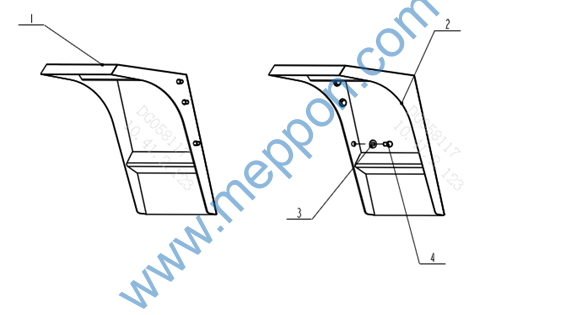

第39图
前挡泥板总成
FIG.39 Front fender assembly
