SHANTUI L55-B5 PARTS CATALOG 38
序号 NO. |
部件号 PART NO. |
零件名称 PART NAME |
备注 REMARKS |
数量 QTY |
1 2 3 4 5 6 7 8
|
1457-05F-01000 1434-30G-14000 D2451-00300 D2711-11800 1434-30G-13000 D2451-00310 D2401-02410 D2581-00500
|
前灯线束 Front lamp wiring line 右前灯架 Headlight holder (R) 右前组合大灯 Front Lamp(R) 电喇叭 Electric horn 左前灯架 Headlight holder (L) 左前组合大灯 Front Lamp(L) 护板 Protect plate 接近开关 Approaching switch |
|
1 1 1 1 1 1 1 1
|

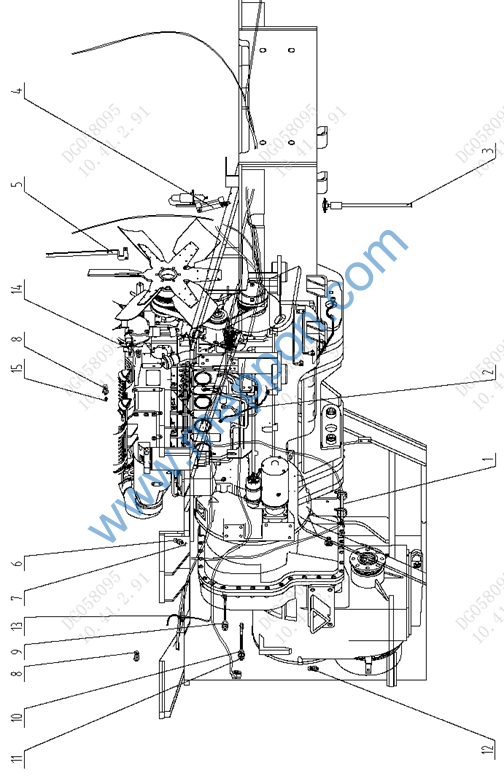

第43图
后车架线束
FIG.43 Rear Frame Wiring
序号 NO. |
部件号 PART NO. |
零件名称 PART NAME |
备注 REMARKS |
数量 QTY |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 |
1457-07E-02000 1434-07G-00001 D2330-29001 1455-07B-00001 1455-07B-00002 D2320-14080 07303-01420 D2300-01010 F2301-07000 D2301-08000 1455-07V-00002 D2592-04000 1472-07-17000 D2320-01200 1455-07B-00003 |
主线束 Rear wiring harness 发动机搭铁线 Engine earth wire 油位传感器 Oil level sensor 熄火电磁铁支架 Bracket 发电机支架 Generator bracket 变矩器油温传感器 Oil temperature sensor 密封垫圈 Sealing washer 压力传感器 Pressure sensor 倒报开关 Reversing switch 变速压力开关 Pressure sensor 过渡接头 Transition connectors 驻车开关 Parking switches 台座搭铁线 Ground wire 水温传感器 过渡接头 Transition connectors |
|
1 1 1 1 1 1 1 2 1 1 1 1 1 1 1 1 |

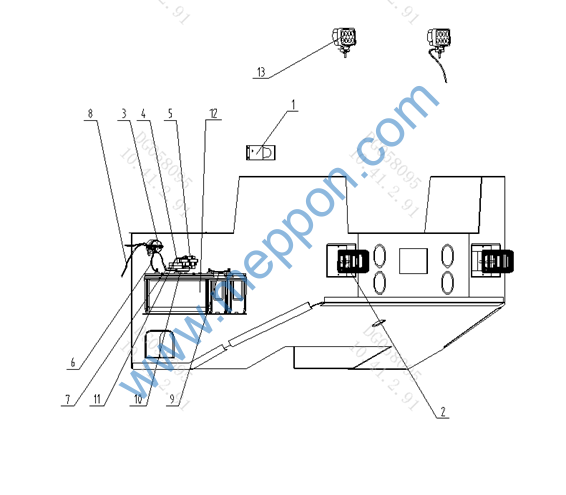

第44图
电瓶线束
FIG.44 Battery Wiring
序号 NO. |
部件号 PART NO. |
零件名称 PART NAME |
备注 REMARKS |
数量 QTY |
1 2 3 4 5 6 7 8 9 10 11 12 13 |
D2730-11020 D2450-01300 D2602-20010 D2763-08000 D2601-10000 1457-07-07000 1457-07-08000 1457-07-06000 1457-07-14000 1457-07-09000 1455-07-07000 D1011-12011 D2401-02410
|
倒车报警器 Back up buzzer LED三宇后灯 Sanyu rear lamp 手动电源开关 Mannual power switch 保险盒 Insurance box 电源总开关 Power switch 电瓶搭铁线 Battery earth wire 起动机电源线 Wire 搭铁线 Earth wire 电瓶连接线 Wire 电瓶至保险盒线 Wire 电磁开关至保险盒线 Wire 蓄电池总成 Battery assembly LED后工作灯 Rear working lamp
|
|
1 2 1 1 1 1 1 1 1 1 1 1 2 |
