SHANTUI L36-B3 PARTS CATALOG 07

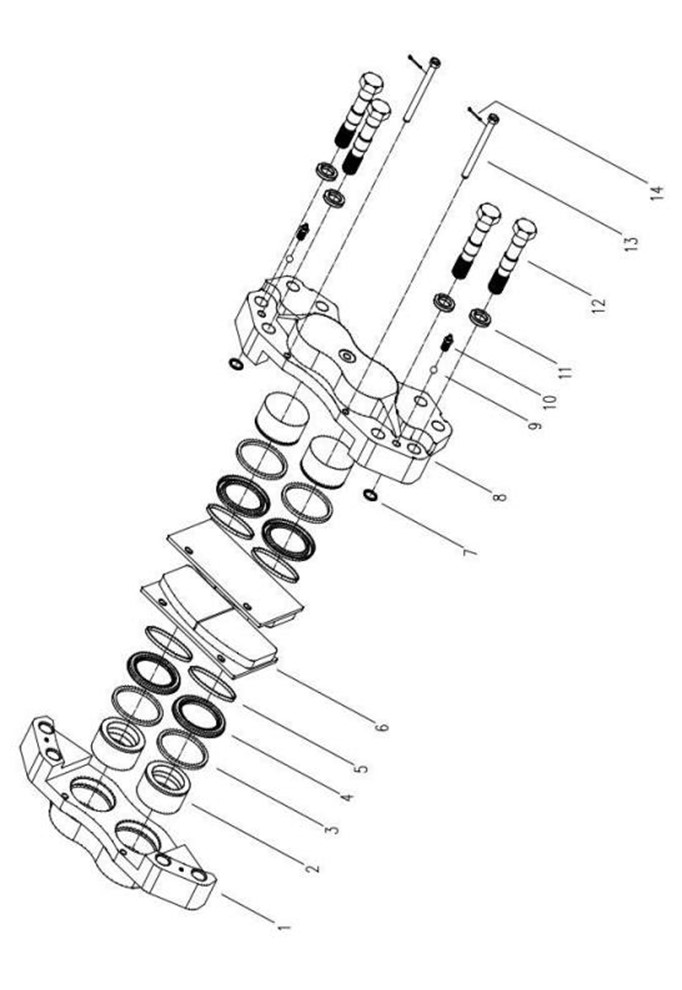

第 9.5 图 制动器总成
FIG.9.5 Brake Assembly
1 |
JF30-00-02 |
外钳体 External clamp body |
1 |
||
2 |
JF30-00-04 |
活塞 |
plunger |
4 |
|
3 |
JF30-00-10 |
矩形圈 Rectangular circle |
4 |
||
4 |
JF30-00-11 |
防尘罩 Dust guard |
4 |
||
5 |
JF30-00-12 |
卡圈 |
Rand |
4 |
|
6 |
JF30-00-14 |
制动片 Brake block |
2 |
||
7 |
ZBJ22002-88 |
O型圈20X2.4 O-ring |
2 |
||
8 |
JF30-00-03 |
内钳体 The inner clamp body |
1 |
||
9 |
GB93-87 |
垫圈 |
Spring washer |
2 |
|
10 |
JF30-00-08 |
放气嘴 Deflating valve |
2 |
||
11 |
GB93-22 |
弹簧垫圈22 Spring washer |
4 |
||
12 |
JF30-00-06 |
螺栓M22 |
Blot |
4 |
|
13 |
JF30-00-13 |
螺栓销 |
Bolt pin |
2 |
|
14 |
GB91-86 |
开口销2.5X30 Cotter |
2 |

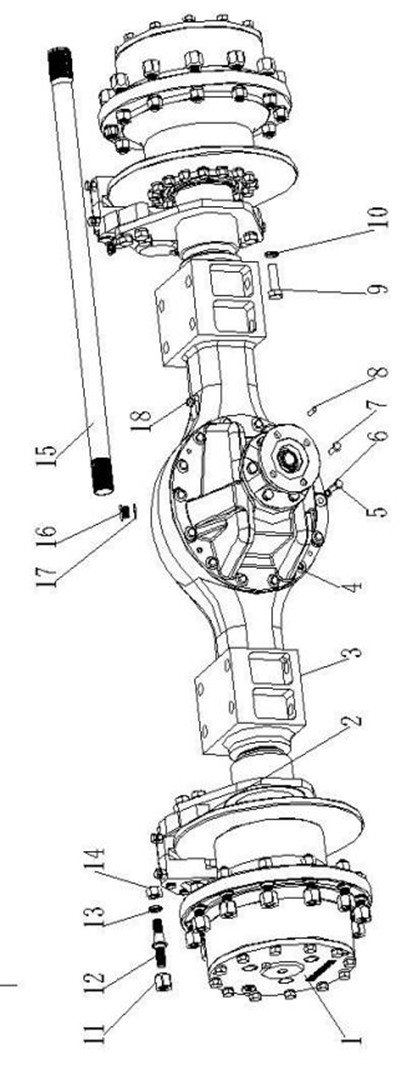

第 10 图 后驱动桥总成
FIG. 10 Rear Drive Bridge Assembly
1 |
ZL30-00-06 |
轮边减速器总成 Wheel-side speed reducer assembly |
2 |
||
2 |
JF30-00-01 |
制动器总成 Brake assembly |
2 |
||
3 |
ZL30-00-04B |
后桥桥壳 Rear bridge shell |
1 |
||
4 |
ZL30-00-05B |
后桥主减速器总成 Rear axle main reducer assembly |
1 |
||
5 |
GB5782-M10X40 |
螺栓M10X40 Blot |
10.9 级 |
4 |
|
6 |
GB93-10 |
弹簧垫圈10 Spring washer |
14 |
||
7 |
GB5782-M10X35 |
螺栓M10X35 Blot |
10.9 级 |
10 |
|
8 |
ZL30-053 |
圆柱销A10X30 Melt |
2 |
||
9 |
GB5782-M20X60 |
螺栓M20X60 Blot |
10.9 级 |
12 |
|
10 |
GB93-20 |
弹簧垫圈20 Spring washer |
12 |
||
11 |
ZL30-043 |
轮辋螺母 Rim nut |
24 |
||
12 |
ZL30-042 |
轮辋螺栓 Rims bolts |
24 |
||
13 |
GB93-20 |
弹簧垫圈20 Spring washer |
24 |
||
14 |
GB6171-M20X1.5 |
1型六角螺母 Nut |
10 级 |
24 |
|
15 |
ZL30-008 |
半轴 |
Semi-axis |
2 |
|
16 |
ZL30-044 |
螺塞M24X1.5 Plug screw |
2 |
||
17 |
ZL30-045 |
密封垫圈24 Sealing gasket |
2 |
||
18 |
ZL30-062 |
通气塞 Breather plug |
1 |

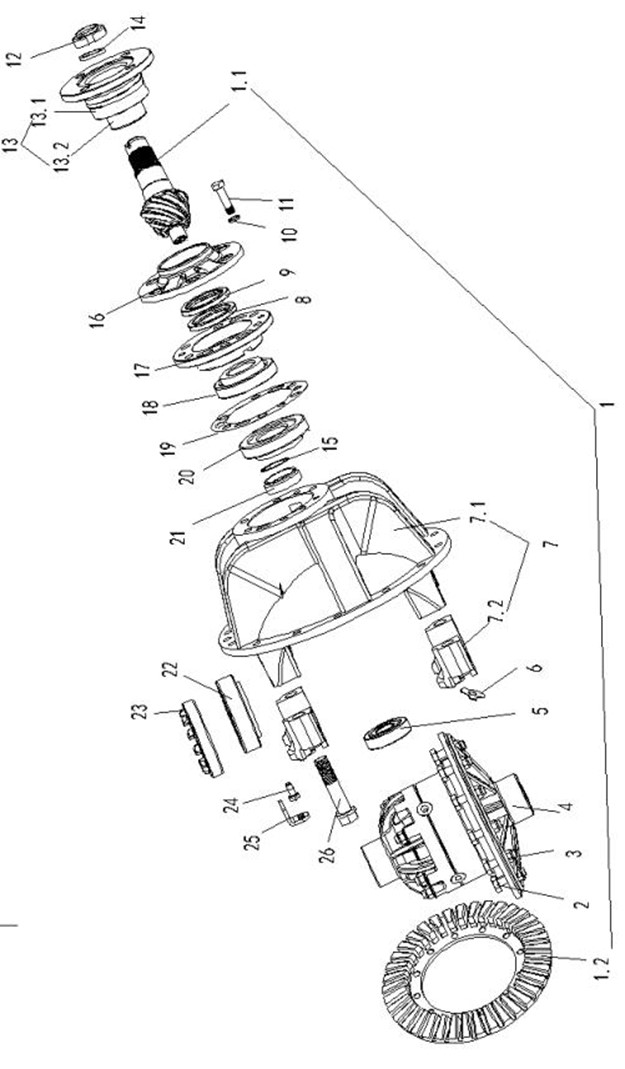

第10.1图 后主减速器总成(ZL30-00-05A) FIG. 10.1 Rear Main Reducer Assembly
1 |
ZL30-009B/010B) |
后桥主传动齿轮副 |
Reaxle main drive gear pair |
1 |
|
1.1 |
ZL30-009B |
后桥主动锥齿轮 |
Rear axle active cone gear |
1 |
|
1.2 |
ZL30-010B |
后桥从动锥齿轮 |
Rear axle driven bevel gear |
1 |
|
2 |
ZL30-059 |
螺栓M12X1.25X45 |
Blot |
12 |
|
3 |
ZL30-058 |
螺母M12X1.25 |
Nut |
12 |
|
4 |
ZL30-00-03 |
差速器总成 |
Differential assembly |
1 |
|
5 |
GBT283-NCL306 |
圆柱滚子轴承 |
Cylindrical roller bearing |
1 |
|
6 |
ZL30-060 |
压盖锁片 |
Pressure cover lock plate |
4 |
|
7 |
ZL30-00-08 |
主减速器壳体组件 |
Main reducer housing |
1 |
|
7.1 |
ZL30-001 |
减速器壳 |
Reducer shell |
1 |
|
7.2 |
ZL30-011 |
轴承压盖 |
Bearing pressure cover |
2 |
|
8 |
GBT9877.1-FB60X80X16 |
唇形密封圈 |
Gasket ring |
1 |
|
9 |
GBT9877.1-FB60X80X16 |
唇形密封圈 |
Gasket ring |
6 |
|
10 |
GB93-14 |
弹簧垫圈14 |
Spring washer |
6 |
|
11 |
GBT5782-M14X45 |
螺栓M14X45 |
Blot |
10.9 级 |
1 |
12 |
ZL30-047 |
突缘螺母 |
Tendritic nut |
1 |
|
13 |
ZL30-013/049 |
突缘组件 |
Tendritic component |
1 |
|
13.1 |
ZL30-049 |
防尘罩 |
Dust guard |
1 |
|
13.2 |
ZL30-013 |
突缘 |
Lug |
1 |
|
14 |
ZL30-050 |
突缘密封圈 |
Tendritic rim sealing ring |
1 |
|
15 |
ZL30-031 |
轴承调整垫 |
Bearing adjustment pad |
1 |
|
16 |
ZL30-018 |
油封座 |
Oil seal seat |
1 |
|
17 |
ZL30-019 |
轴承座 |
Bearing block |
1 |
|
18 |
GBT297-31309 |
圆锥滚子轴承 |
Taper roller bearing |
1 |
|
19 |
ZL30-048 |
调整垫 |
Adjust the mat |
1 |
|
20 |
GBT297-31310 |
圆锥滚子轴承 |
Taper roller bearing |
1 |
|
21 |
ZL30-038 |
轴承隔套 |
Bearing set |
2 |
|
22 |
GBT297-33114 |
圆锥滚子轴承 |
Taper roller bearing |
2 |
|
23 |
ZL30-012 |
调整螺母 |
Adjust nut |
2 |
|
24 |
GB5782-M10X15 |
螺栓M10X15 |
Blot |
2 |
|
25 |
ZL30-039 |
调整螺母锁片 |
Adjust nut locks |
4 |
|
26 |
ZL30-033 |
螺栓M20X1.5X90 |
Blot |
1 |
