SHANTUI L36-B3 PARTS CATALOG 11

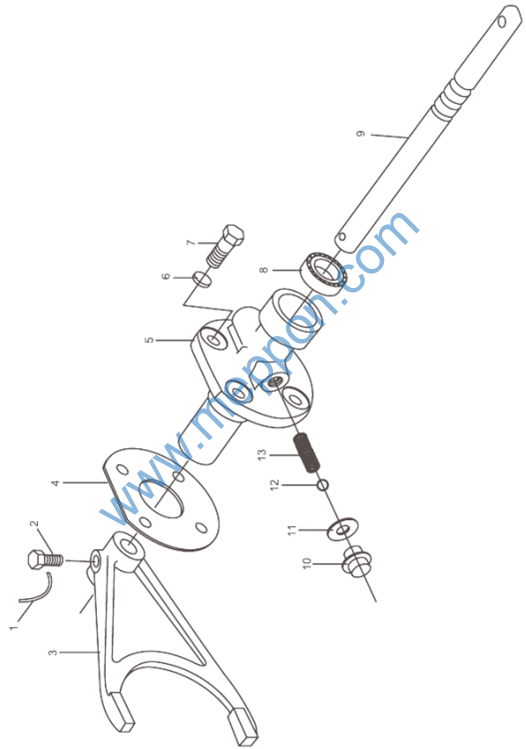

第 11.7 图 高低换挡拨叉机构(370801)
FIG. 11.7 H/L Speed Shift Fork Assembly
1 |
1×90 |
铁丝 |
Iron wire |
1 |
2 |
BD08-06001 |
紧定螺钉 Socket screw |
1 |
|
3 |
BD08-06002 |
高低换挡拨叉 High-low speed shift fork |
1 |
|
4 |
BD08-06026 |
纸垫 |
Paper gasket |
1 |
5 |
BD08-06003 |
拨叉支架 Fork support |
1 |
|
6 |
GB93-10 |
弹垫 10 Spring washer |
4 |
|
7 |
GB5783-M10X30 |
六角螺栓 M10X30 Bolt |
4 |
|
8 |
JB2600-80 |
油封 18X35X10 Oil seal |
1 |
|
9 |
BD08-06004 |
拨叉轴 |
Fork shaft |
1 |
10 |
BD08-06005 |
螺塞 M12X1.25 Plug |
1 |
|
11 |
BD08-06006 |
垫圈 |
Washer |
1 |
12 |
GB308-10 |
钢球 10 |
Steel ball |
1 |
13 |
BD08-06007 |
弹簧¢ 1.6 |
Spring |
1 |

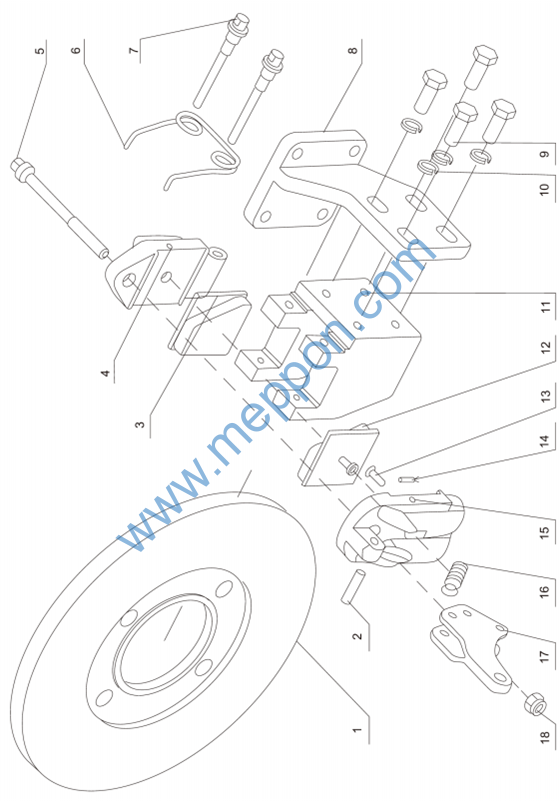

第11.8图 驻车制动器总成(370801)
FIG. 11.8 Parking Brake Assembly
0 |
TC30H |
手制动总成 Hand brake assembly |
1 |
|
1 |
TC30.2 |
制动盘 |
Brake disc |
1 |
2 |
ZL16.15.2-7 |
销轴 |
Pin roll |
1 |
3 |
ZL16.15.2.1A(.3B) |
制动片 |
Brake block |
1 |
4 |
TC30.3 |
小托架 |
Small support |
1 |
5 |
TC30.4 |
调整螺栓 Adjusting bolt |
1 |
|
6 |
TC30.0-2 |
回位弹簧 L Release spring |
1 |
|
7 |
TC30.5 |
固定轴 Stationary shaft |
2 |
|
8 |
TC30.1 |
支架 |
Bracket |
1 |
9 |
GB5783-M10X25 |
螺栓 M10X25 Bolt |
4 |
|
10 |
GB93 10 |
弹垫 10 Spring washer |
4 |
|
11 |
TC30.6 |
支座 |
Support |
1 |
12 |
ZL16.15.2.1B(.3A) |
制动片 |
Brake disc |
1 |
13 |
ZL16.15.2-8 |
拉销 |
Pull pin |
1 |
14 |
GB91-1.6X16 |
开口销 1.6X16 Cotter pin |
1 |
|
15 |
ZL30-03L-3 |
托架(D) |
Support |
1 |
16 |
ZL30-03L-2 |
弹簧 |
Spring |
1 |
17 |
ZL20-038000J-1 |
拉柄 |
Pull grip |
1 |
18 |
GB6182-M8 |
螺母 M8 |
Nut |
1 |

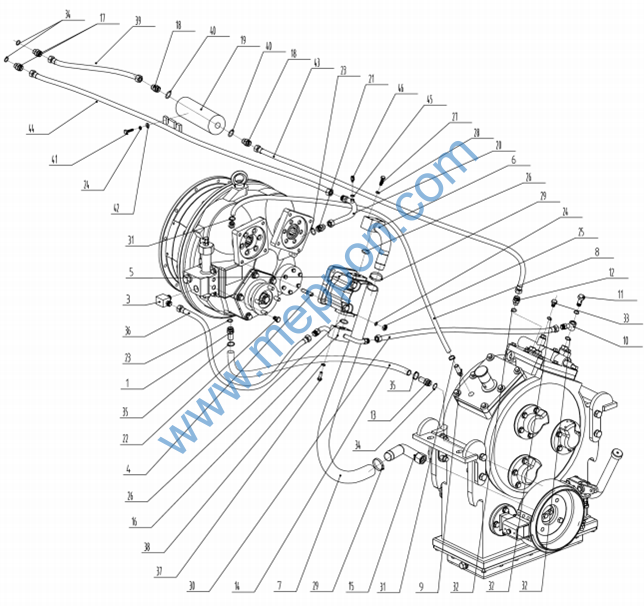

第 12 图 行车液压系统
FIG. 12 Transmission Hydraulic System
1 |
1434-75G-00012 |
回油接头 |
Joint |
1 |
|
3 |
1434-75-00002 |
接头体 |
Joint |
1 |
|
4 |
1434-76-00003 |
双头螺柱 |
Double-screw bolt |
1 |
|
5 |
1434-75-07000 |
齿轮泵P反 |
Gearpump |
4 |
|
6 |
1434-75-02000 |
吸油接头 |
Oil suction joint |
1 |
|
7 |
1434-75-00003 |
吸油胶管 |
Oil suction hose |
1 |
|
8 |
1434-75-00004 |
回油管 |
Oil return hose |
1 |
|
9 |
1434-75-00005 |
接头体 |
Joint |
1 |
|
10 |
1434-75-03000 |
铰接接头总成 |
Link joint assembly |
1 |
|
11 |
1434-75-00006 |
铰接螺栓 |
Link bolt |
1 |
|
12 |
1434-75-00007 |
接头体 |
Joint |
1 |
|
13 |
1434-75-00008 |
回油接头 |
Oil retune joint |
1 |
|
14 |
1434-75-00009 |
回油管φ25 |
Oil return hose |
1 |
|
15 |
1434-75-04000 |
过渡接头 |
Transition joint |
1 |
|
16 |
1434-75-05000 |
出油接头 |
Oil outlet joint |
1 |
|
17 |
1434-75-00010 |
接头体 |
Joint |
1 |
|
18 |
1434-75-00011 |
接头体 |
Joint |
2 |
|
19 |
1434-75-08000 |
回油滤芯总成 |
Oil filter |
2 |
|
20 |
1434-75-06000 |
钢管总成 |
Steel tube assembly |
1 |
|
21 |
1434-75-00012 |
接头体 |
Joint |
1 |
|
22 |
1434-75-00013 |
螺塞ZG3/8“ |
Screw plug |
1 |
|
23 |
07030-02432 |
密封垫圈24 |
Sealing ring |
2 |
|
24 |
GB93-12 |
弹簧垫圈12 |
Washer |
3 |
|
25 |
GB6170-M12 |
螺母M12 |
Nut |
6 |
|
26 |
07008-13250 |
O型圈25X3.55 |
O-ring |
4 |
|
27 |
GB5782-M10X65 |
螺栓M10X65 |
Bolt |
2 |
|
28 |
GB93-10 |
垫圈10 |
Washer |
4 |
|
29 |
07280-05026 |
管夹45~50 |
Clamp |
4 |
|
30 |
B0201-157200450 |
胶管总成 |
Hose assembly |
2 |
|
31 |
07280-02523 |
管夹20~24 |
Clamp |
1 |
|
32 |
07303-02230 |
密封垫圈22 |
Sealing ring |
2 |
