SINOMACH CHANGLIN ZL50E-5 wheel loader parts catalog 05

Meppon Co., Ltd Posted on by

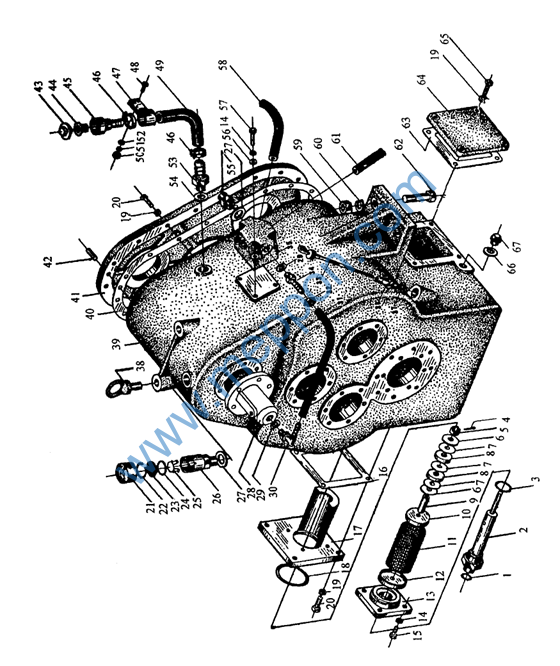

Z50E.4F 变速箱体及附件 Transmission And Accessories
















Z50E.4F 变速箱体及附件 Transmission And Accessories

序号

No.

零
件
代
号

Part No.

名
称

Part Name

数量

Q’ty

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

B-Q020710-00042

Z30.4.21-4

B-Q020710-00070

B-G000910-00023

B-G061780-00002

Z30.4.21-12

Z30.14.8.3-3

Z30.14.8.3-2

Z30.4.21-1

Z30.4.21-3

Z30.4.21-10

Z30.4.21-5

Z30.4.21-8

B-G000930-00017

B-G057830-00143

Z30.4.21-6

Z30.4.21-7

B-Q020710-00104

B-J010020-00001

B-G057830-00012

Z30.4.16-3

B-G00895A-00001

Z30.4.16-1

B-Q020710-00064

Z30.4.16-2

Z30.4.16-1

B-J010020-00010

Z50B.4.6-1

B-J010020-00009

Z50B.4.15.1

Z50B.4.15-2

B-J088700-00014

Z50B.4.9

Z30.4.17-3

O形密封圈 25×2.4        O-ring

油管                    Tube

O形密封圈 45×3.5        O-ring

销 2×36                Pin

螺母M10ZnD                Nut

铝垫                    Al-washer

隔垫                    Spacer washer

永磁铁                 Magnet iron

铝管                    Al-pipe

滤清器下端盖            Filter lower cover

滤清器骨架及滤网     Filter Frame and gauze

滤清器上端盖         Filter upper cover

法兰盘             Flange disk

垫圈 8             Washer

螺栓 M8×25 ZnD         Bolt

垫                 Washer

盖板及罩         Cover and cap

O形密封圈 90×3.1     O-ring

垫圈 10             Washer

螺栓 M10×35 ZnD     Bolt

外盖                 Outer cover

挡圈 40             Retainer

过滤盘             Filter plate

O形密封圈 40×3.5     O-ring

杯盖                 Cover

通气杯                 Aerate cup

垫圈 30                Washer

轴承盖                 Bearing cover

垫圈 27                Washer

直角管接头             Elbow

输油胶管
φ16×26×450    Hose

喉箍 d32                Clip

油尺                    Oil gauge

管接头                 Joint

1

1

1

1

1

2

15

4

1

1

1

1

1

7

4

1

1

1

32

28

1

1

1

1

1

1

2

1

6

3

1

6

1

3

Z50E.4F 变速箱体及附件 Transmission And Accessories












Z50E.4F 变速箱体及附件 Transmission And Accessories

序号

No.

零
件
代
号

Part No.

名
称

Part Name

数量

Q’ty

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

Z50B.4.15-1

Z50B.4.9-2

B-J010020-00007

B-G008250-00003

Z50E.4A-1B

Z50E.4-4

Z50E.4-3

B-G001180-00002

Z50B.4.16-1

Z50B.4.16.1

Z50B.4.16-2

B-J088700-00015

Z50B.4.16-4

B-G057830-00130

Z50B.4.16-3

B-G061700-00034

B-G000930-00015

B-G00097B-00021

B-Q01202L-00002

B-J010020-00010

Z30.2M.4-1

B-G00097B-00023

B-G057820-00162

Z50B.4.15-4

B-G061720-00008

B-G000930-00008

Z50B.4.15-3

Z50B.4-5

Z50B.4-6

B-G057830-00012

B-J010020-00008

B-J010000-00010

B-G057830-00104

冷却器分流体            Diverter

油尺座                    Gauge seat

垫圈 22                Washer

吊环螺钉M20ZnD            Screw

箱体                    Case

纸垫                    Paper pad

箱盖                    Cover

销 A12×35                Pin

加油口盖                Cover

滤网                    Strainer

加油口                    Oil filler mouth

喉箍 d40                Clip

夹板                    Clamped plate

螺栓 M6×16 ZnD        Bolt

输油胶管φ25×35×1000 Hose

螺母 M6 ZnD            Nut

垫圈 6                    Washer

垫圈 6 ZnD            Washer

接头体 M30×1.5        Joint body

垫圈 30                Washer

接头                    Joint

垫圈 8    ZnD                Washer

螺栓 M8×50 ZnD        Bolt

输油胶管
φ16×26×780    Hose

螺母M20ZnD                Nut

垫圈 20                Washer

输油胶管
φ16×26×600    Hose

纸垫                    Paper pad

盖                        Cover

螺栓M10×35ZnD            Bolt

垫圈 24 ZnD            Washer

螺塞 M24×1.5 ZnD        Plug

螺栓 M20×80 ZnD        Bolt

1

1

1

2

1

1

1

2

1

1

1

2

1

2

1

2

2

2

1

1

1

3

3

1

4

4

1

1

1

4

1

1

4

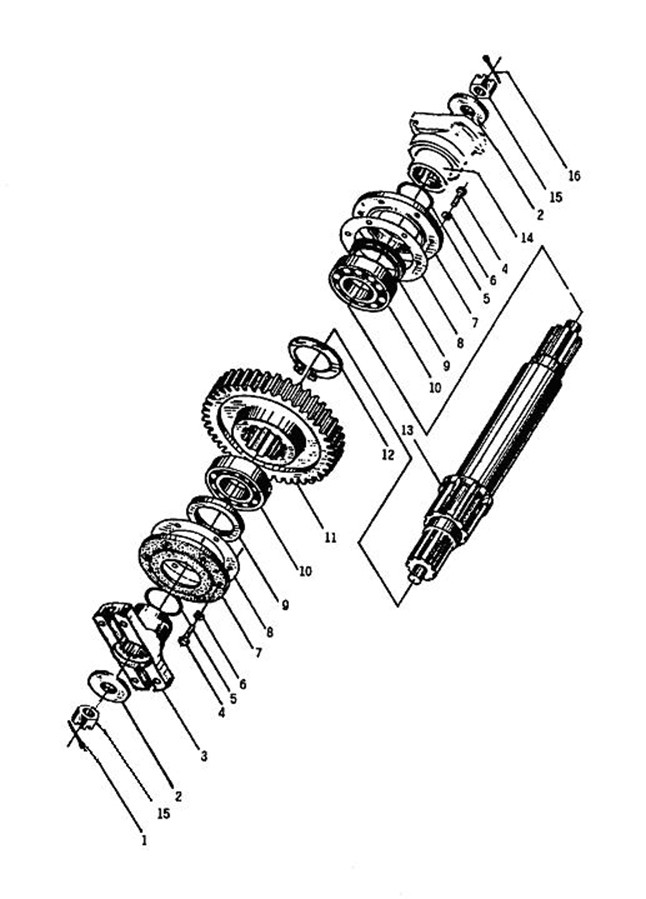

Z50E.4.1 变速箱输出轴总成 Output Shaft Ass‘y










Z50E.4.1 变速箱输出轴总成 Output Shaft Ass‘y

序号

No.

零
件
代
号

Part No.

名
称

Part Name

数量

Q’ty

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

B-G000910-00049

Z50B.4.1-6

Z50B.4.1A-1

B-G057830-00010

B-Q020710-00088

B-G000930-00001

Z50B.4.1-2

Z50B.4.1-3

B-G09877A-00049

B-G002970-00019

Z50E.4.1-1L

B-G00894A-00023

Z50B.4.1A-2

Z50E.4E.1-5

B-G094590-00003

B-G000910-00049

开口销 5×45            Cotter pin

垫圈                    Washer

前法兰                    Front flange

螺栓 M10×30 ZnD        Bolt

O形密封圈 65×5.7        O-ring

垫圈 10                Spring washer

轴承盖                    Bearing cover

纸垫                    Paper pad

油封 FB75×100×12B    Oil seal

滚动轴承32212            Bearing

输出轴齿轮                Output shaft gear

挡圈 82                Retainer

输油轴                    Output shaft

后法兰                    Rear flange

螺母 M24×1.5            Nut

开口销 5×45            Cotter pin

1

2

1

12

2

12

2

2

2

2

1

1

1

1

2

1
