SINOMACH CHANGLIN ZL50E-5 wheel loader parts catalog 06

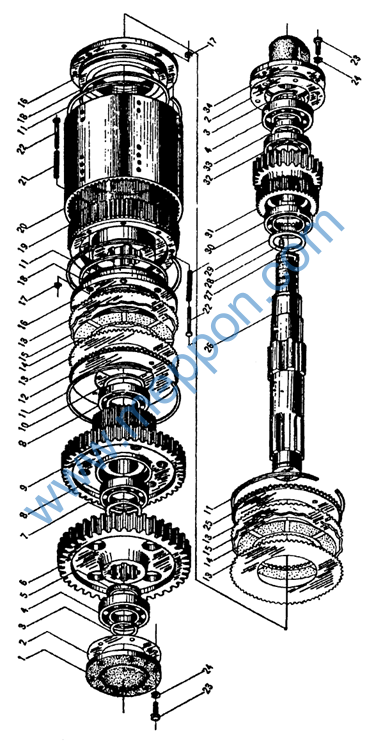

Z50E.4.2 变速箱二、三档总成 2nd And 3rd Clutch Ass‘y
Z50E.4.2 变速箱二、三档总成 2nd And 3rd Clutch Ass‘y
序号 No. |
零 Part No. |
名 Part Name |
数量 Q’ty |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 |
Z50B.4.2-1 Z50B.4.2-19 B-G00894A-00019 B-G002760-00032 Z50B.4.2-2 Z20E.4.2-1A Z50B.4.2-25 B-G002760-00010 Z50E.4.2-2 Z50B.4.2-14 Z50B.4.2-11 Z50B.4.2-26 Z50B.4.2-7 Z50B.4.2-8 Z50B.4.2-15 Z50B.4.2-12 Z50B.4.2-23 Z50B.4.2-24 Z50B.4.2-13 Z50B.4.2-5 Z50B.4.2-10 Z50B.4.2-9 B-G057830-00010 B-G000930-00001 Z50B.4.2-22 Z50B.4.2-21 Z30.4.1-19 B-G000780-00006 Z50B.4.2-16 B-G002760-00009 Z50E.4.2-3 B-G002760-00008 Z50B.4.2-18 Z50B.4.2-20 |
轴承盖 Bearing cover 纸垫 Paper pad 挡圈 55 Snap ring 轴承 6311 Bearing 垫环 Spacer ring 输出齿轮 Output gear 轴套 Bushing 轴承 6013 Bearing 齿轮 Gear 垫环 Spacer ring 卡环 Snap ring 二挡压盖 1st and 2nd cover 主动摩擦片 Drive disc 从动摩擦片 Driven disc 波形弹簧 Wave spring 活塞 Piston 挡圈 Snap ring 矩形密封圈 Searing 缸体 Cylinder body 齿圈 Gear ring 活塞回位弹簧 Retraction spring 活塞回位拉杆 Retraction drag rod 螺栓 M10×30 ZnD Bolt 垫圈 10 Spring washer 压盖 Cover 轴 Shaft 油封环 Oil seal ring 螺钉 M12×12 Screw 轴承垫 Bearing washer 轴承 6012 Bearing 齿轮 Gear 轴承 6011 Bearing 轴套 Bushing 轴承盖 Bearing cover |
1 2 2 2 1 1 1 2 1 1 4 1 20 18 36 2 8 2 1 1 8 8 12 12 1 1 4 2 1 1 1 1 1 1 |

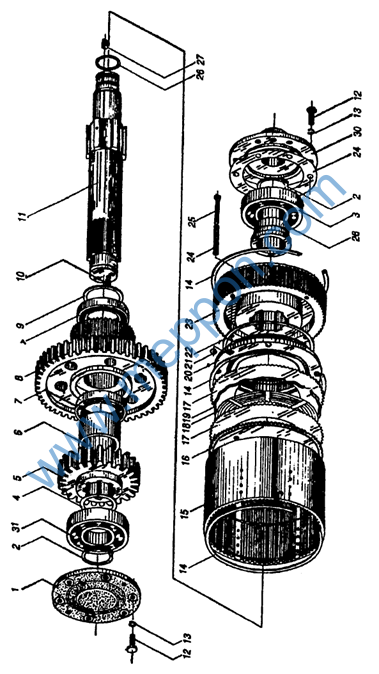

Z50E.4.3 一档总成 1st Clutch Ass‘y
Z50E.4.3 一档总成 1st Clutch Ass‘y
序号 No. |
零 Part No. |
名 Part Name |
数量 Q’ty |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 |
Z50B.4.2-1 B-G00894A-00019 B-G002760-00032 Z50B.4.2-2 Z50B.4.3A-2 Z50B.4.3-2 B-G002760-00010 Z50E.4.3-2 Z50B.4.2-14 Z50B.4.2-6 Z50E.4.3-5 B-G057830-00010 B-G000930-00001 Z50B.4.2-11 Z50B.4.3-5 Z50B.4.3-4 Z50B.4.2-7 Z50B.4.2-8 Z50B.4.2-15 Z50B.4.2-12 Z50B.4.2-23 Z50B.4.2-24 Z50E.4.3-3 Z50B.4.2-10 Z50B.4.2-9 Z30.4.1-19 B-G000780-00006 Z50E.4.3-4 Z50B.4.2-191 Z50B.4.3-7 W-03-00102 |
轴承盖 Bearing cover 挡圈 55 Snap ring 滚动轴承6311 Bearing 垫环 Spacer ring 输出齿轮 Output gear 轴套 Bushing 滚动轴承6013 Bearing 齿轮 Gear 垫圈 Spacer ring 螺塞 Plug 轴 Shaft 螺栓 M10×30 ZnD Bolt 垫圈 10 Washer 卡环 Snap ring 齿圈 Gear ring 一挡压盖 1st cover 主动摩擦片 Drive disc 从动摩擦片 Driven disc 波形弹簧 Wave spring 活塞 Piston 挡圈 Retainer 矩形密封圈 Seal ring 缸体 Cylinder body 活塞回位弹簧 Retraction spring 活塞回位拉杆 Retraction drag rod 油封环 Oil seal ring 螺钉 M12×12 Screw 隔套 Collar 纸垫 Paper pad 轴承盖 Bearing cover 滚动轴承6411(TWB) Bearing |
1 2 1 1 1 1 2 1 1 1 1 12 12 3 1 1 14 13 26 1 4 1 1 4 4 2 1 1 1(组) 1 1 |
Z50E.4.4 中间轴总成 Center Shaft Ass‘y
Z50E.4.4 中间轴总成 Center Shaft Ass‘y
序号 No. |
零 Part No. |
名 Part Name |
数量 Q’ty |
1 2 3 4 5 6 7 8 9 10 11 12 |
B-G057830-00010 B-G000930-00001 Z50B.4.4A-5 Z50B.4.4A-4 B-G00894A-00019 B-G002760-00032 Z50B.4.4A-3 Z50E.4.4-2 Z50B.4.4-4 Z50B.4.4A-1 Z50E.4.4-1 Z50B.4.4-7 |
螺栓 M10×30 ZnD Bolt 挡圈 10 Spring washer 轴承盖 Bearing cover 纸垫 Paper pad 挡圈55 Snap ring 滚动轴承6311 Bearing 轴套 Bushing 齿轮 Gear 齿轮 Gear 中间轴 Center shaft 齿轮 Gear 垫套 Bushing |
12 12 2 1组 2 2 1 1 1 1 1 1 |
