SINOMACH CHANGLIN ZL50E-5 wheel loader parts catalog 07

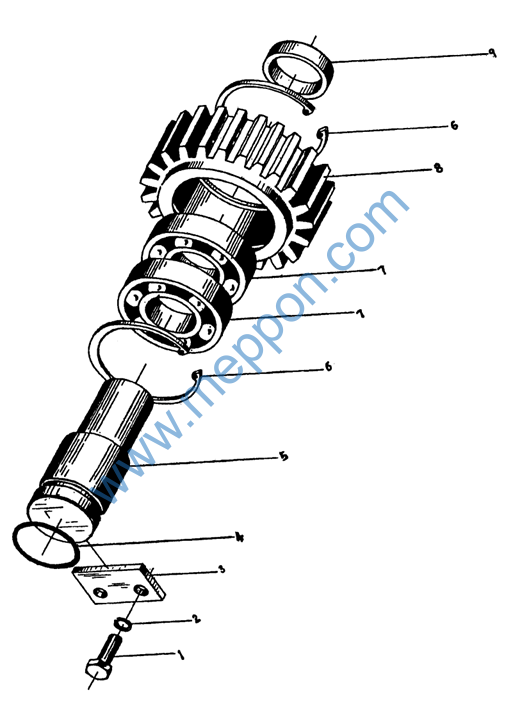

Z50B.4.5B 倒档轴总成 Reverse Shaft Ass‘y
Z50B.4.5B 倒档轴总成 Reverse Shaft Ass‘y
序号 No. |
零 Part No. |
名 Part Name |
数量 Q’ty |
1 2 3 4 5 6 7 8 9 |
B-G057830-00139 B-G000930-00017 Z50B.4.5A-1 B-Q020710-00068 Z50B.4.5B-1 B-G00893A-00013 B-G002760-00015 Z50B.4.5A-3 Z50B.4.5A-4 |
螺栓 M8×20 ZnD Bolt 垫圈 8 Spring washer 卡铁 Snap iron(plate) O形圈 45×3.1 O-ring 倒档轴 Reverse shaft 挡圈 72 Snap ring 轴承 6207 Bearing 倒挡齿轮 Rear gear 轴套 Bushing |
2 2 1 1 1 2 2 1 1 |

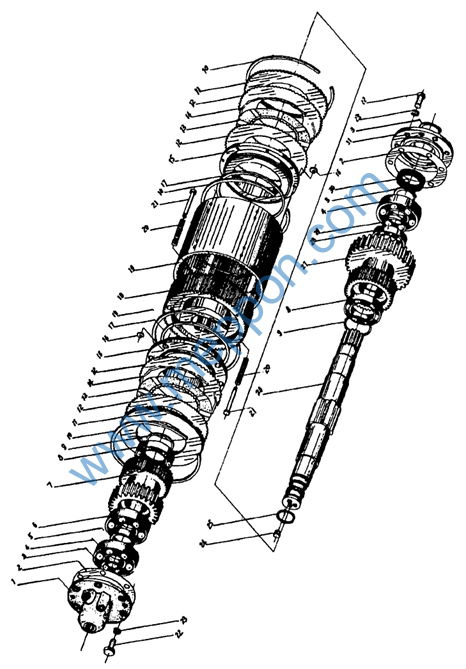

Z50E.4A.1 前进倒退档总成
Forward And Reverse Clutch Ass‘y
Z50E.4A.1 前进倒退档总成
Forward And Reverse Clutch Ass‘y
序号 No. |
零 Part No. |
名 Part Name |
数量 Q’ty |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 |
Z50B.4.6-1 Z50B.4.1-3 B-G00894A-00017 B-G002760-00030 Z50B.4.6-3 B-G002760-00007 Z50E.4A.1-1 B-G002760-00009 Z50B.4.2-16 Z50B.4.2-11 Z50B.4.2-22 Z50B.4.2-7 Z50B.4.2-8 Z50B.4.2-15 Z50B.4.2-12 Z50B.4.2-23 Z50B.4.2-24 Z50B.4.6-5 Z50B.4.6-9 Z50B.4.2-10 Z50B.4.2-9 B-G057830-00010 B-G000930-00001 B-G000780-00006 Z30.4.1-19 Z50B.4.6-8 Z50E.4.5-1 B-G002760-00008 Z50B.4.6-7 B-G09877A-00022 Z50B.4.6-10 |
轴承盖 Bearing cover 纸垫 Paper pad 挡圈 50 Snap ring 滚动轴承 6310 Bearing 轴套 Bushing 滚动轴承 6010 Bearing 倒档齿轮 Rear gear 滚动轴承 6012 Bearing 轴承垫 Bearing washer 卡环 Snap ring 压盖 Cover 主动摩擦片 Drive disc 从动摩擦片 Drive disc 波形弹簧 Wave spring 活塞 Piston 挡圈 Retainer 矩形密封圈 Seal ring 缸体 Cylinder body 齿圈 Gear ring 活塞回位弹簧 Retraction spring 活塞回位拉杆 Retraction drag linker 螺栓 M10×30 ZnD Bolt 垫圈 10 Washer 螺钉 M12×12 Screw 油封环 Searing 前进倒退挡轴 Forward and reverse haft 前进挡齿轮 Forward gear 滚动轴承 6011 Bearing 轴套 Bushing 油封 FB50×70×12B Oil seal 轴承盖 Bearing cover |
1 1组 3 2 1 1 1 2 2 4 2 14 12 24 2 8 2 1 1 8 8 12 12 2 4 1 1 1 1 1 1 |
Z50E.4F.1A 档位阀总成 Clutch Valve Ass‘y
Z50E.4F.1A 档位阀总成 Clutch Valve Ass‘y
序号 No. |
零 Part No. |
名 Part Name |
数量 Q’ty |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 |
B-G057820-00003 B-G000930-00001 B-G00097B-00002 Z50B.4.7.1 Z30.4.13 Z50E.4F.2-1 B-Q020750-00108 B-Q020710-00008 B-J010020-00004 B-G057820-00162 B-G000930-00017 B-Q020750-00099 B-Q020750-00101 B-Q020710-00033 Z50E.4F.1A-1 B-J010000-00004 B-Q020750-00099 B-Q020750-00095 B-J009790-00003 B-J009810-00002 Z50B.4.12-1 Z50E.4F.1A.1 B-G057830-00003 Z50E.4F.1A.2 |
螺栓 M10×110 ZnD Bolt 垫圈 10 Washer 垫圈 10 ZnD Washer 分配阀总成 Distributing valve ass’y 档位阀总成 Clutch valve ass’y 管接头 Joint body 胶管接头 8I-800 Oil pipe O形圈 11×1.9 O-ring 垫圈 16 Washer 螺栓 M8×50 ZnD Bolt 垫圈 8 Washer 胶管接头 8I-510 Oil pipe 胶管接头 8I-540 Oil pipe O形圈 22×2.4 O-ring 底板 Bottom plate 螺塞 M16×1.5 ZnD Plug 胶管接头 8I-510 Oil pipe 胶管接头 8I-400 Oil pipe 接管 10 Joint pipe 螺母 M16×1.5 Nut 铜管 Copper pipe 软轴支架 Bracket 螺栓M10×20ZnD Bolt 胶管接头 Hose |
3 6 3 1 1 10 1 11 12 4 4 1 1 1 1 2 1 1 1 1 1 1 3 1 |
