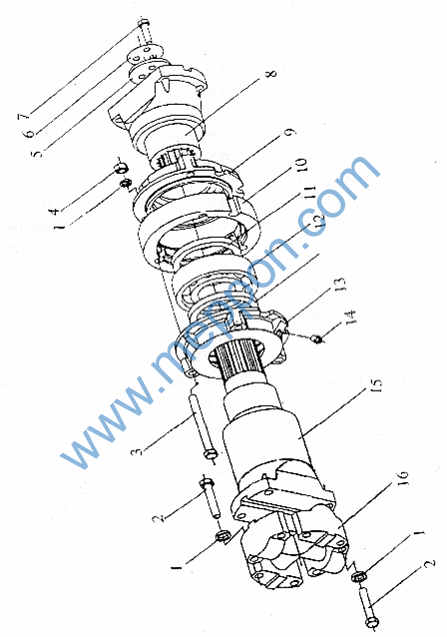

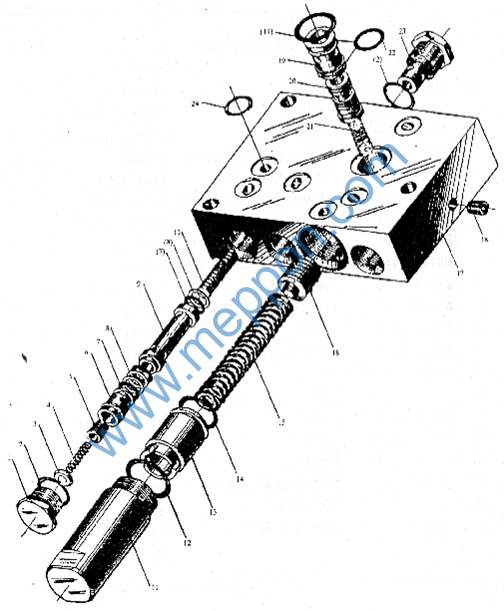

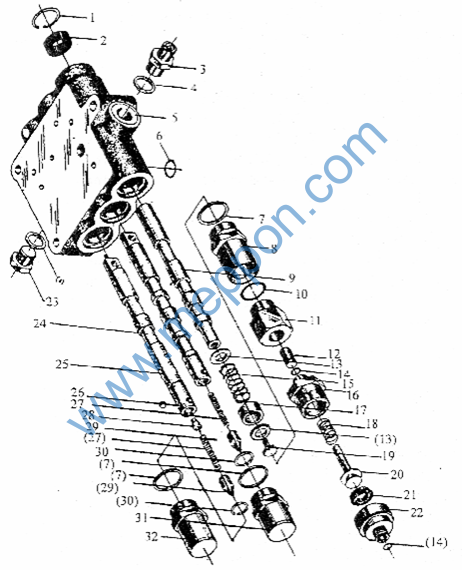

序号

No.

零 件 代 号

Part No.

版本

Ver.

名 称

Part Name

数量 Q’ty

适用车号

Suit Num.

选装

Cho

1

B-G057820-00003

1

螺栓 M10×110 ZnD Bolt

3

9570001-

2

B-G000930-00001

1

垫圈 10

Washer

3

9570001-

3

B-G00097B-00002

1

垫圈 10 ZnD

Washer

3

9570001-

4

Z50H.4.7.1

1

分配阀总成 Distributingvalveass’y

1

9570001-

5

Z30.4.13

1

档位阀总成 Clutch valve ass’y

1

9570001-

6

Z50E.4F.2-1

1

管接头

Joint body

10

9570001-

7

B-Q020750-00107

1

胶管接头 8I-800 Oil pipe

1

9570001-

8

B-Q020710-00008

1

O 形圈 11×1.9

O-ring

11

9570001-

9

B-J010020-00004

1

垫圈 16

Washer

12

9570001-

10

B-G057820-00162

1

螺栓 M8×50 ZnD Bolt

4

9570001-

11

B-G000930-00017

1

垫圈 8

Washer

4

9570001-

12

B-Q020750-00099

1

胶管接头 8I-510 Oil pipe

1

9570001-

13

B-Q020750-00101

1

胶管接头 8I-540 Oil pipe

1

9570001-

14

B-Q020710-00113

1

O 形圈 35×3.1

O-ring

1

9570001-

15

Z50E.4F.1-1

1

底板

Bottom plate

1

9570001-

16

B-J010000-00003

1

螺塞 M16×1.5 ZnD Plug

2

9570001-

17

B-Q020750-00099

1

胶管接头 8I-510 Oil pipe

1

9570001-

18

B-Q020750-00095

1

胶管接头 8I-400 Oil pipe

1

9570001-

19

B-J020990-00001

1

接管 10

Joint pipe

1

9570001-

20

B-J009810-00002

1

螺母 M16×1.5

Nut

1

9570001-

21

Z50B.4.12.1-1

1

铜管

Copper pipe

1

9570001-

22

B-G00097B-00023

1

垫圈 8ZnD

Washer

4

9570001-

序号

No.

零 件 代 号

Part No.

版本

Ver.

名 称

Part Name

数量 Q’ty

适用车号

Suit Num.

选装

Cho

1

Z30.4.12-12

1

固定螺钉

Screw

5

9570001-

2

B-Q020710-00042

1

O 形密封圈 25×2.4 O-ring

6

9570001-

3

Z30.4.12-11

1

弹簧座

Spring

5

9570001-

4

Z30.4.12-10

1

弹簧

Spring seat

5

9570001-

5

Z50B.4.7.1-1

1

单向阀

One-way valve

5

9570001-

6

Z30.4.12-9

1

单向阀套

One-way valve bush

5

9570001-

7

B-Q020710-00024

1

O 形密封圈 16×2.4 O-ring

11

9570001-

8

B-Q020780-00001

1

挡圈A16×12

Seal ring

11

9570001-

9

Z30.4.12-7

1

液动阀套

Valve bush

3

9570001-

10

Z30.4.12-6

1

阀芯

Valve core

3

9570001-

11

Z30.4.12-13

1

液流阀阀罩

Valve hood

1

9570001-

12

B-Q020710-00056

1

O 形密封圈 35×3.5 O-ring

1

9570001-

13

Z30.4.12-3

1

液流阀阀套

Valve bush

1

9570001-

14

B-Q020710-00047

1

O 形密封圈 30×3.1 O-ring

2

9570001-

15

Z30.4.12-2

1

弹簧

Spring

1

9570001-

16

Z30.4.12-4

1

液流阀阀芯

Valve core

1

9570001-

17

Z30.4.12-1

1

阀体

Valve case

1

9570001-

18

W-10-00008

1

螺钉 Z1/8＂ × 12 Screw

2

9570001-

19

Z30.4.12-14

1

阀套

Valve sleeve

1

9570001-

20

Z30.4.12-15

1

阀芯

Valve core

1

9570001-

21

Z30.4.12-16

1

弹簧

Spring

1

9570001-

22

B-Q020710-00033

1

O 形密封圈 22×2.4 O-ring

2

9570001-

23

Z30.4.12-5

1

固定螺钉

Screw

1

9570001-

24

B-Q020710-00029

1

O 形密封圈 20×2.4 O-ring

6

9570001-

序号

No.

零 件 代 号

Part No.

版本

Ver.

名 称

Part Name

数量 Q’ty

适用车号

Suit Num.

选装

Cho

1

B-G00893A-00004

1

挡圈 30

Snap ring

3

9570001-

2

B-G09877A-00019

1

油封 FB18×30×10 Oil seal

3

9570001-

3

Z30.4. 13-5

1

操纵压力表接头 Pressure gauge joint

1

9570001-

4

B-J010020-00005

1

垫圈 18

Washer

2

9570001-

5

Z30.4. 13- 1

1

档位阀体

Valve case

1

9570001-

6

B-Q020710-00033

1

O 形密封圈 22×2.4 O-ring

6

9570001-

7

Z30.4. 13-6

1

垫圈 18

Washer

3

9570001-

8

Z30.4. 13-7

1

制动杆联接套

Sleeve

1

9570001-

9

Z30.4. 13-4

1

制动卸载阀杆 Valve stem

1

9570001-

10

B-Q020710-00047

1

O 形密封圈 30×3.1 O-ring

1

9570001-

11

Z30.4. 13- 12

1

柱塞套

Plunger sleeve

1

9570001-

12

Z30.4. 13- 13

1

柱塞

Plunger

1

9570001-

13

Z30.4. 13- 10

1

垫圈

Washer

2

9570001-

14

B-Q020710-00008

1

O 形密封圈 11×1.9 O-ring

3

9570001-

15

Z30.4. 13-9

1

制动杆始复弹簧 Spring

1

9570001-

16

Z30.4. 13- 15

1

活塞杆导套

Guide bushing

1

9570001-

17

Z30.4. 13-8

1

限位套

Limit sleeve

1

9570001-

18

Z30.4. 13- 16

1

活塞杆回位弹簧 Retraction

1

9570001-

19

Z30.4. 13- 11

1

螺钉

Spring

1

9570001-

20

Z30.4. 13- 14

1

活塞杆

Screw

1

9570001-

21

Z30.4. 13- 17

1

橡皮碗

Piston rod

1

9570001-

22

Z30.4. 13- 18

1

进气联接盖

Cover

1

9570001-

23

B-J010000-00005

1

螺塞 18×1.5

Plug

1

9570001-

24

Z30.4. 13-3

1

方向阀杆

Valve stem

1

9570001-

25

Z30.4. 13-2

1

档位阀杆

Valve stem

1

9570001-

26

B-G003080-00002

1

钢球 8.0000-G100-b Ball

8

9570001-

27

Z30.4. 13-20

1

档位弹簧

Spring

2

9570001-

28

B-G000790-00001

1

内六角固柱端紧定螺钉M10×12 Screw

1

9570001-

29

Z30.4. 13-21

1

钢球限位锥体 Limit cone

2

9570001-

30

Z30.4. 13-22

1

挡圈

Check ring

2

9570001-

31

Z30.4. 13- 19

1

方向杆体

Sleeve

1

9570001-

32

Z30.4. 13-23

1

档位杆体

Sleeve

1

9570001-
