序号

No.

零 件 代 号

Part No.

版本

Ver.

名 称

Part Name

数量 Q’ty

适用车号

Suit Num.

选装

Cho

B-J010020-00006

W-16-00134

B-Q020710-00006

W-01-00033

B-Q020750-00107

B-J010020-00009

B-G057830-00034

B-G000930-00003

B-Q020710-00077

B-G057830-00010

B-Q020710-00050

B-J088700-00018

B-Q020750-00138

B-Q020750-00073

B-G057830-00011

B-Q020140-00005

B-Q020710-00060

B-Q020710-00046

W-07-00131

B-G057820-00169

B-G061700-00036

B-G000930-00017

B-Q020490-00023

B-G057820-00012

B-G061840-00002

B-Q020710-00039

B-J010020-00002

B-J010020-00007

W-19-00001

B-G061710-00010

B-G00097B-00007

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

垫圈 20

软管总成|F381CACE222212-1200 O 形圈 11×1.9

齿轮泵(左旋)|

CBGj2063/1016-XF

胶管接头 8I-800

垫圈 27

螺栓 M12×30ZnD

垫圈 12

O 形圈 54×3.5

螺栓 M10×30ZnD

O 形圈 32×3.1

喉箍 d70

胶管接头 25I-1950

胶管接头 25I-3500

螺栓 M10×35-10.9ZnD 分离式法兰 Aф38.9/21 O 形圈 38×3.5

O 形圈 30×3.1

优先阀|YXL-F160L-N7-H 螺栓 M8×85ZnD

螺母 M8ZnD

垫圈 8

垫圈 8

螺栓 M10×45ZnD

螺母 M10ZnD

O 形圈 24×2.4

垫圈 12

垫圈 22

方向盘 (花键) |TCM-2 螺母 M16×1.5ZnD

垫圈 16

Washer

Hose ass’y

O-ring

Gear pump

Hose joint

Washer

Bolt

Washer

O-ring

Bolt

O-ring

Clamp

Hose joint

Hose joint

Bolt

Parting flange

O-ring

O-ring

Priority valve

Bolt

Nut

Washer

Washer

Bolt

Nut

O-ring

Washer

Washer

Steering wheel

Nut

Washer

4

1

2

1

1

2

4

4

1

4

4

4

1

1

12

8

4

1

1

2

2

2

2

3

3

2

3

1

1

1

1

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

9570001-

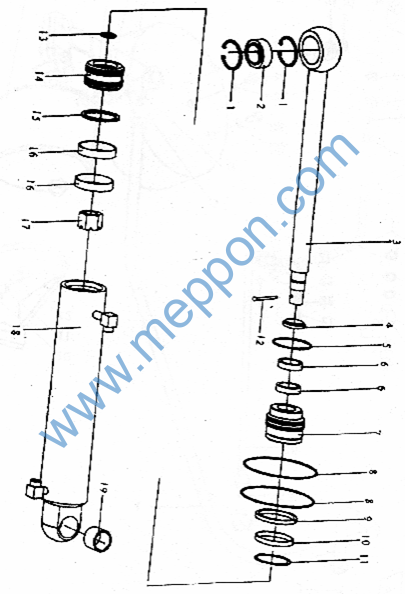

序号

零 件 代 号

版本

名 称

数量

适用车号

选装

No.

Part No.

Ver.

Part Name

Q’ty

Suit Num.

Cho

1

B-G00893A-000014

1

孔用弹性挡圈 75 Snap ring

2

9570001-

2

B-G091630-00004

1

关节轴承 GE50ES Joint bearing

1

9570001-

3

Z50F.10.8.2

1

活塞杆

Pistion rod

1

9570001-

4

HA330-0450-01-200

1

防尘圈 45

Dust ring

1

9570001-

5

B-Q020710-00072

1

O形圈 50×3.1 O-ring

1

9570001-

6

HS230-0450-09-200

1

轴用密封圈 45×7.5 Seal ring

2

9570001-

7

Z50F.10.8-1

1

导向套

Guide sleeve

1

9570001-

8

B-Q020710-00105

1

O形圈 90×5.7 O-ring

2

9570001-

9

Z15.14.10-5

1

卡键

Block key

1

9570001-

10

Z15.14.10-6

1

挡圈

Snap ring

1

9570001-

11

B-G00894A-00022

1

轴用弹性挡圈 80 Snap ring

1

9570001-

12

Z50F.10.8-3

1

止动钢丝圈

Ring

1

9570001-

13

B-Q020710-00057

1

O 形圈 36×3.5 O-ring

1

9570001-

14

Z50B.10.12A-5(C)

1

活塞

Pistion

1

9570001-

15

HK150-0900-04-55N

1

格莱圈 0900 Seal ring

1

9570001-

16

Z50B.10.12A-4

1

支承环

Support ring

2

9570001-

17

Z50F.10.8-2

1

锁紧螺母M36×2 Nut

1

9570001-

18

Z50G.10D.1.1

1

缸体

Cylinder body

1

9570001-

19

Z60F.10.17-1

1

衬套

Bushing

1

9570001-

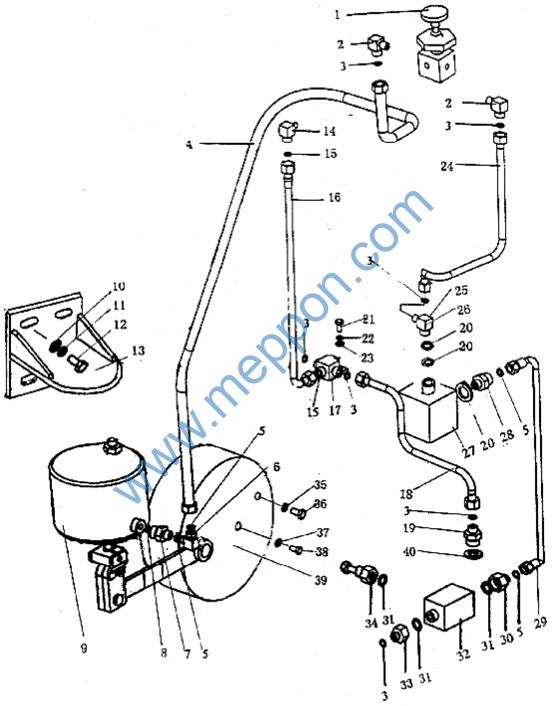

序号

No.

零 件 代 号

Part No.

版本

Ver.

名 称

Part Name

数量 Q’ty

适用车号

Suit Num.

选装

Cho

1

W-18-00015

1

手动控制阀 Control valve

1

9570001-

2

Z30E.11-3

1

直角接头

Joint

2

9570001-

3

B-Q020710-00018

1

O 形圈 14*2.4 O-ring

7

9570001-

4

W-13-00019

1

气管 L=1200

Pipe

1

9570001-

5

B-Q020710-00006

1

O 形圈 11X1.9 O-ring

4

9570001-

6

Z50E.11L.3

1

接头

Joint

1

9570001-

7

Z50E.11L-1

1

接头

Joint

1

9570001-

8

B-J010020-00002

1

垫圈 12

Washer

1

9570001-

9

W-18-00043

1

驻车制动气室 Brake chamber

1

9570001-

10

B-G00097B-00008

1

垫圈 16ZnD

Washer

4

9570001-

11

B-G000930-00006

1

垫圈 16

Washer

4

9570001-

12

B-G057830-00076

1

螺栓 M16X45ZnD Bolt

4

9570001-

13

Z50E.11L.1

1

固定板

Fixup borde

1

9570001-

14

Z50E.11F-1

1

直角接

Joint

1

9570001-

15

B-Q020710-00006

1

O 形圈 8X1.9

O-ring

2

9570001-

16

W-13-00011

1

气管 L=800

Pipe

1

9570001-

17

Z50E.11L.2

1

接头

Joint

1

9570001-

18

W-13-00030

1

气管 L=350

Pipe

1

9570001-

19

Z30.9.4-1

1

管接头

Joint

1

9570001-

20

B-J010020-00007

1

垫圈 22

Washer

3

9570001-

21

B-G057830-00003

1

螺栓 M10X20ZnD Bolt

1

9570001-

22

B-G000930-00001

1

垫圈 10

Washer

1

9570001-

23

B-G00097B-00002

1

垫圈 10ZnD

Washer

1

9570001-

24

W-13-00035

1

气管 L=700

Pipe

1

9570001-

25

Z30E.11F-2

1

接头

Joint

1

9570001-

26

Z30E.11F-3

1

铰接螺栓

Bolt

1

9570001-

27

W-18-00011

1

气控截止阀

Stop valve

1

9570001-

28

Z30E.11-5

1

接头

Joint

1

9570001-

29

W-13-00057

1

气管 L=1300

Pipe

1

9570001-

30

Z30E.11-2

1

接头

Joint

1

9570001-

31

Z30E.11-8

1

紫铜垫

Copper Washer

3

9570001-

32

W-18-00020

1

双向换通阀

Valve

1

9570001-

33

Z50E.11L-2

1

接头体

Joint

1

9570001-

34

Z50E.11L.4

1

接头

Joint

1

9570001-

35

B-G057860-00007

1

螺栓 M12X1.5X30ZnD Bolt

8

9570001-

36

B-G000930-00003

1

垫圈 12

Washer

8

9570001-

37

B-G057860-00013

1

螺栓 M14X1.5X25ZnD Bolt

4

9570001-

38

B-G000930-00003

1

垫圈 12

Washer

4

9570001-

39

W-18-00003

1

鼓式制动器 Brake ass’y

1

9570001-

40

B-J010020-00005

1

垫圈 18

Washer

1

9570001-
