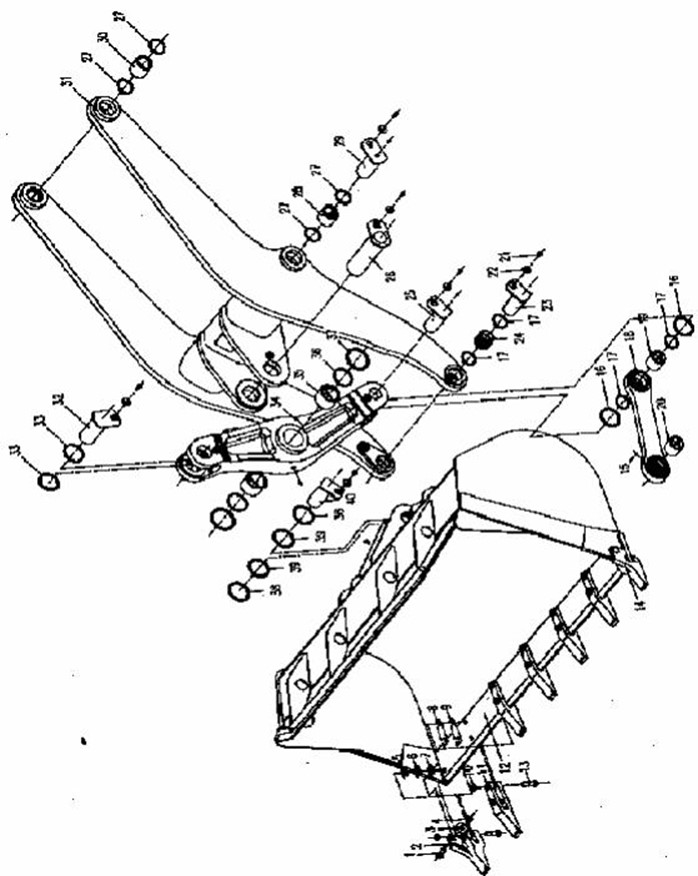

序号

No.

零 件 代 号

Part No.

版本

Ver.

名 称

Part Name

数量 Q’ty

适用车号

Suit Num.

选装

Cho

1

B-G057830-00028

1

螺栓 M12*20ZnD Bolt

8

9570001-

2

B-G000930-00003

1

垫圈 12

Washer

12

9570001-

3

Z50G.12.7

1

前盖板

Front cover

1

9570001-

4

Z50G.12H.1

1

前车架

Front frame

1

9570001-

5

B-G057830-00065

1

螺栓 M16*25-10.9ZnD Bolt

6

9570001-

6

B-Q01201E-00003

1

垫圈 16

Washer

6

9570001-

7

B-J07940A-00001

1

油杯 M10*1 Grease fitting

6

9570001-

8

Z50B.12.13A

1

上铰销

Upper pin

2

9570001-

9

Z50G.12D.3

1

下铰销

Lower pin

2

9570001-

10

B-Q01201C-00008

1

垫片 97*150

Washer

4 组

9570001-

11

B-Q01201F-00002

1

铰销组件 95*280A Hinge pin

1

9570001-

12

B-J07940A-00001

1

油杯 M10*1 Grease fitting

3

9570001-

13

B-G057860-00040

1

螺栓 M14*1.5*60-10.9ZnD Bolt

16

9570001-

14

B-Q020490-00005

1

垫圈 14

Washer

16

9570001-

15

Z50G.12D-4

1

上轴承盖 Upper bearing cover

1

9570001-

16

B-G091630-00008

1

关节轴承 GE90Es Bearing

2

9570001-

17

Z50G.12D-2

1

上轴承盖 Upper bearing cover

1

9570001-

18

Z50G.12D-6

1

下轴承盖 Lower bearing cover

1

9570001-

19

Z50G.12D-3

1

下轴承盖 Lower bearing cover

1

9570001-

20

Z50B.12.2E.2

1

板

Plate

1

9570001-

21

B-G057820-00172

1

螺栓 M14*35ZnD Bolt

2

9570001-

22

B-G000930-00005

1

垫圈 14

Washer

2

9570001-

23

B-G10708C-00002

1

防尘圈 FB100*115*9 Dust ring

2

9570001-

24

B-G10708C-00007

1

防尘圈 FB90*100*7 Dust ring

2

9570001-

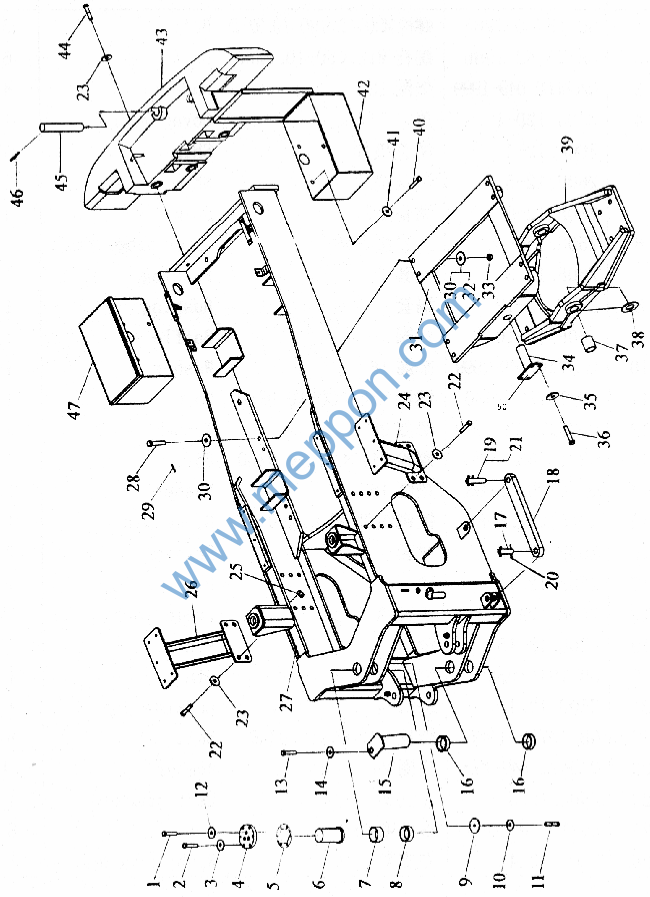

序号

No.

零 件 代 号

Part No.

版本

Ver.

名 称

Part Name

数量 Q’ty

适用车号

Suit Num.

选装

Cho

1

B-G057850-00064

1

栓 M20*2*90-10.9ZnD Bolt

3

9570001-

2

B-G057820-00040

1

螺栓 M12*50-10.9ZnD Bolt

6

9570001-

3

B-Q020490-00003

1

垫圈 12

Washer

6

9570001-

4

Z50G.12D-1

1

盖

Cover board

1

9570001-

5

Z60F.12-4

1

调整垫片

Shim

10

9570001-

6

Z60F.12-5

1

调整垫片

Shim

2

9570001-

7

Z60F.12-6

1

调整垫片

Shim

4

9570001-

8

Z50G.12D-5

1

上铰接销轴 Upper hinge shaft

1

9570001-

9

Z60F.12-3

1

隔套

Bushing

1

9570001-

10

Z60F.12-12

1

隔套

Bushing

1

9570001-

11

Z60F.12-10

1

挡圈

Baffle

1

9570001-

12

B-Q020490-00007

1

垫圈 16

Washer

1

9570001-

13

B-G057830-00067

1

螺栓 M16*30-10.9ZnD Bolt

1

9570001-

14

B-Q020490-00011

1

垫圈 20

Washer

3

9570001-

15

B-G057830-00065

1

螺栓 M16*25-10.9ZnD Bolt

1

9570001-

16

B-Q01201E-00003

1

垫圈 16

Washer

1

9570001-

17

B-Q01201F-00034

1

铰销组件 90*224B Hinge pin

1

9570001-

18

Z60F.12-13

1

衬套

Bushing

2

9570001-

19

Z50B.12.14

1

销 Pin

1

9570001-

20

Z50B.12A.3

1

车架锁

Frame lock

1

9570001-

21

Z50B.12.15

1

销 Pin

1

9570001-

22

B-G000910-00008

1

销 10*60

Pin

1

9570001-

23

Z50B.12.16

1

保险销

Locking pin

1

9570001-

24

B-G057820-00225

1

螺栓 M24*180-10.9ZnD Bolt

8

9570001-

25

B-Q020490-00015

1

垫圈 24

Washer

14

9570001-

26

Z50G.12A.2

1

左支架

Left bracket

1

9570001-

27

B-G061700-00023

1

螺母 M24ZnD

Nut

8

9570001-

28

Z50G.12A.3

1

右支架

Right bracket

1

9570001-

29

957.12.1

1

后车架

Rear frame

1

9570001-

30

Z50B.12-8

1

螺栓

Bolt

8

9570001-

31

B-G000910-00049

1

销 5*45ZnD

Pin

8

9570001-

32

B-G008480-00007

1

垫圈 24-300HV Washer

16

9570001-

33

Z50B.12.6

1

上摆架 Upper balance frame

1

9570001-

34

B-G000930-00010

1

垫圈 24

Washer

8

9570001-

35

B-G061780-00008

1

螺母 M24ZnD

Nut

8

9570001-

36

Z50E.32-1

1

摆架销轴

Pin

2

9570001-

37

B-G000930-00003

1

垫圈 12

Washer

8

9570001-

38

B-G057830-00030

1

螺栓 M12*25ZnD Bolt

8

9570001-

39

Z50B.12-10

1

摆架轴套

Bushing

2

9570001-

40

Z50B.12-7

1

垫板

Washer

2 组

9570001-

41

Z50G.12D.4

1

下摆架

Lower balance frame

1

9570001-

42

B-G057830-000100

1

螺栓 M20*55ZnD Bolt

8

9570001-

43

B-Q020490-00011

1

垫圈 20

Washer

8

9570001-

44

Z50E.12F.5B

1

左电瓶箱

Left battery

1

9570001-

45

Z50G.12B.3

1

配重

Balance weight

1

9570001-

46

B-G057820-00141

1

螺栓 M24*210-10.9ZnD Bolt

4

9570001-

47

Z50B.12-12

1

牵引销

Pin

1

9570001-

序号

No.

零 件 代 号

Part No.

版本

Ver.

名

称

Part Name

数量 Q’ty

适用车号

Suit Num.

选装

Cho

48

Z50B.12.17

1

保险销

Locking pin

1

9570001-

49

Z50E.12F.6B

1

右电瓶箱

Right battery box

1

9570001-

50

Z50E.32-2

1

板

Plate

2

9570001-
